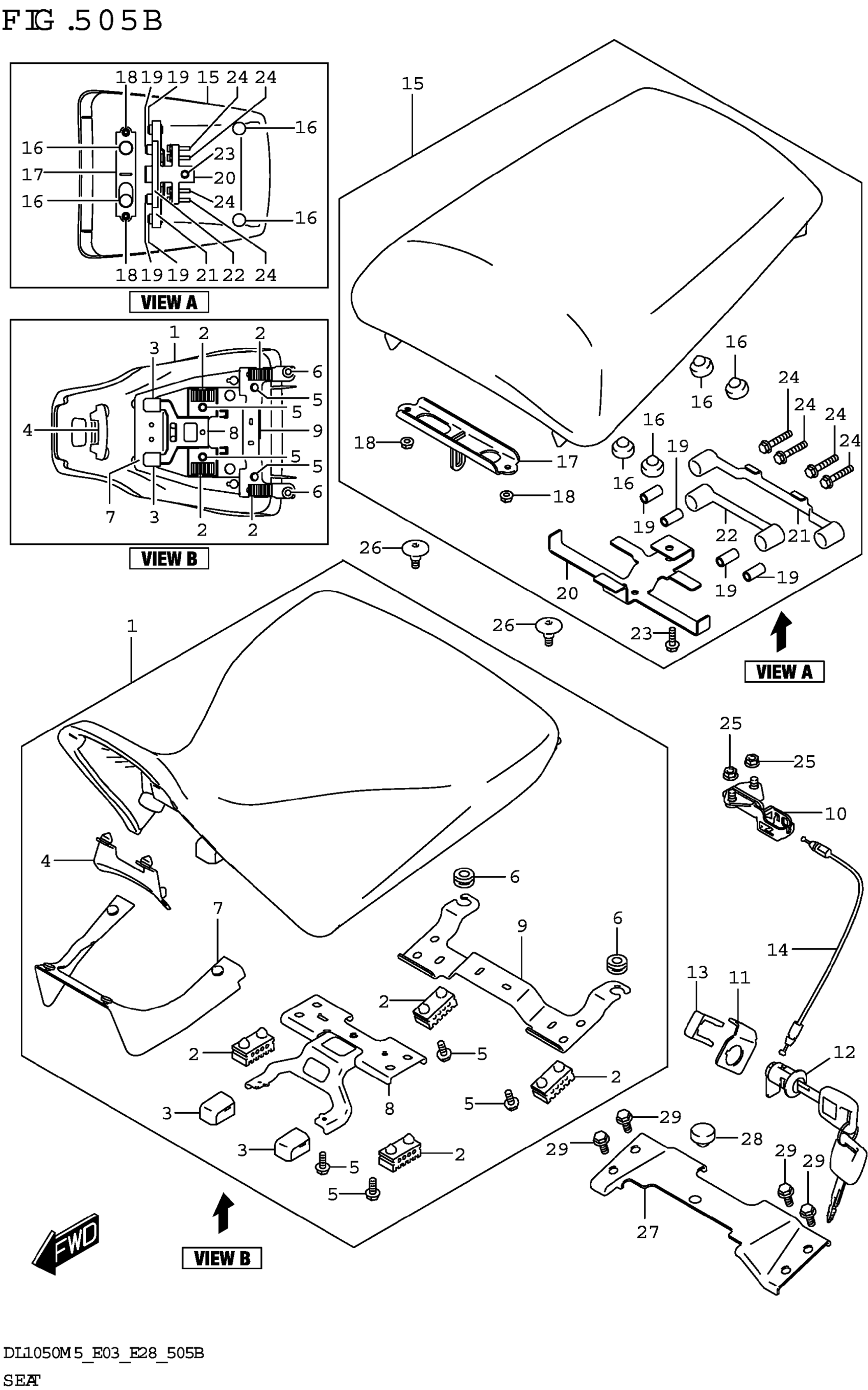

Suzuki DL1050RJM5 (2025) SEAT (DL1050RR) Diagram

#

Description
Price

1

SEAT ASSY (GRAY,BLACK)

45100-06L40-B03

$321.72

2

.CUSHION,SEAT (40X20X15)

45149-31300

$3.56

3

.CUSHION,SEAT HOOK

45141-06L00

$5.25

4

.CUSHION,SEAT MOUNT

45154-06L00

$10.85

5

BOLT

01550-0616A

$1.97

6

.CUSHION

09320-10069

$1.91

7

.SHEET,HEAT SHIELD

45256-06L00

$20.52

8

.FRAME,SEAT NO.2

45452-06L10

$34.22

9

.FRAME,SEAT NO.1

45451-06L10

$24.78

10

BRACKET,STRIKER SUPPORT

45220-04K20

$31.88

11

GUIDE,SEAT LOCK CABLE

45288-14F00

$5.36

12

LOCK SET,SEAT

95700-14810

$107.30

13

PLATE,SEAT LOCK ASSY

45289-11F00

$6.20

14

CABLE,SEAT LOCK

45280-06L00

$10.43

15

SEAT ASSY,PILLION (GRAY,BLACK

45300-06L10-B03

$402.35

16

CUSHION

09321-10012

$2.92

17

.STRIKER,SEAT LOCK

45290-17K00

$38.82

18

NUT (6X12)

08316-1006A

$2.19

19

.SPACER (6.5X12X21)

09180-06314

$4.25

20

.PLATE,SEAT

45321-06L00

$33.05

21

.SPACER,SEAT NO.1

45312-06L00

$8.72

22

.SPACER,SEAT NO.2

45313-06L00

$8.27

23

BOLT (6X20)

01550-0620A

$1.97

24

BOLT

01550-0635A

$2.32

25

NUT (6X12)

08316-1006A

$2.19

26

SCREW (6X20)

09139-06193

$4.24

27

BRIDGE,SEAT

45121-06L10

$16.95

28

CUSHION

09321-10012

$2.92

29

BOLT

01550-0616A

$1.97
