Description

Price

1-1

WHEEL,RR (BLACK) | BODY COLOR:C4X,CWY

64111-31J01-019

$691.47

1-2

WHEEL,RR (RED) | BODY COLOR:BN8

64111-31J01-QGY

$691.47

2

SPACER,REAR HUB BEARING (20.8 | 27.2X124)

64731-49G00

$66.18

3

BEARING (28X52X12)

09262-28062

$23.81

4

SEAL,OIL (37X52X8)

09284-37002

$7.19

5

DISC,REAR BRAKE

69211-06G00

$345.22

6

BOLT (8X21)

09106-08160

$3.22

7

RING,SPEED SENSOR RR (50T)

64162-17G00

$23.17

8

BOLT

07130-0512A

$2.19

9

AXLE,RR

64711-31J00

$95.63

10

NUT,REAR AXLE

64721-17K00

$15.01

11

WASHER (25.2X42X3.2)

09160-25070

$4.30

12

SPACER,REAR AXLE,R

64741-35F10

$12.34

13

SPACER,REAR AXLE,L

64751-47H10

$21.15

14

DRUM,RR SPROCKET

64610-35F30

$363.98

15

RETAINER,RR SPROCKET DRUM

64733-35F00

$24.36

16

BEARING (32X65X17)

09262-32024

$35.55

17

SEAL,OIL (39X65X7)

09285-39001

$9.58

18

ABSORBER,RR HUB SHOCK

64651-35F30

$50.20

19

SPROCKET,REAR,45T-525 (NT:45)

64511-39F00

$100.22

20

NUT

08319-3110A

$2.73

21

TIRE,REAR

65110-06L01

$300.77

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

23-1

BALANCER,WHEEL (10G)

55411-22H00

$9.70

23-2

BALANCER,WHEEL (20G)

55412-22H00

$11.37

23-3

BALANCER,WHEEL (30G)

55413-22H00

$12.93

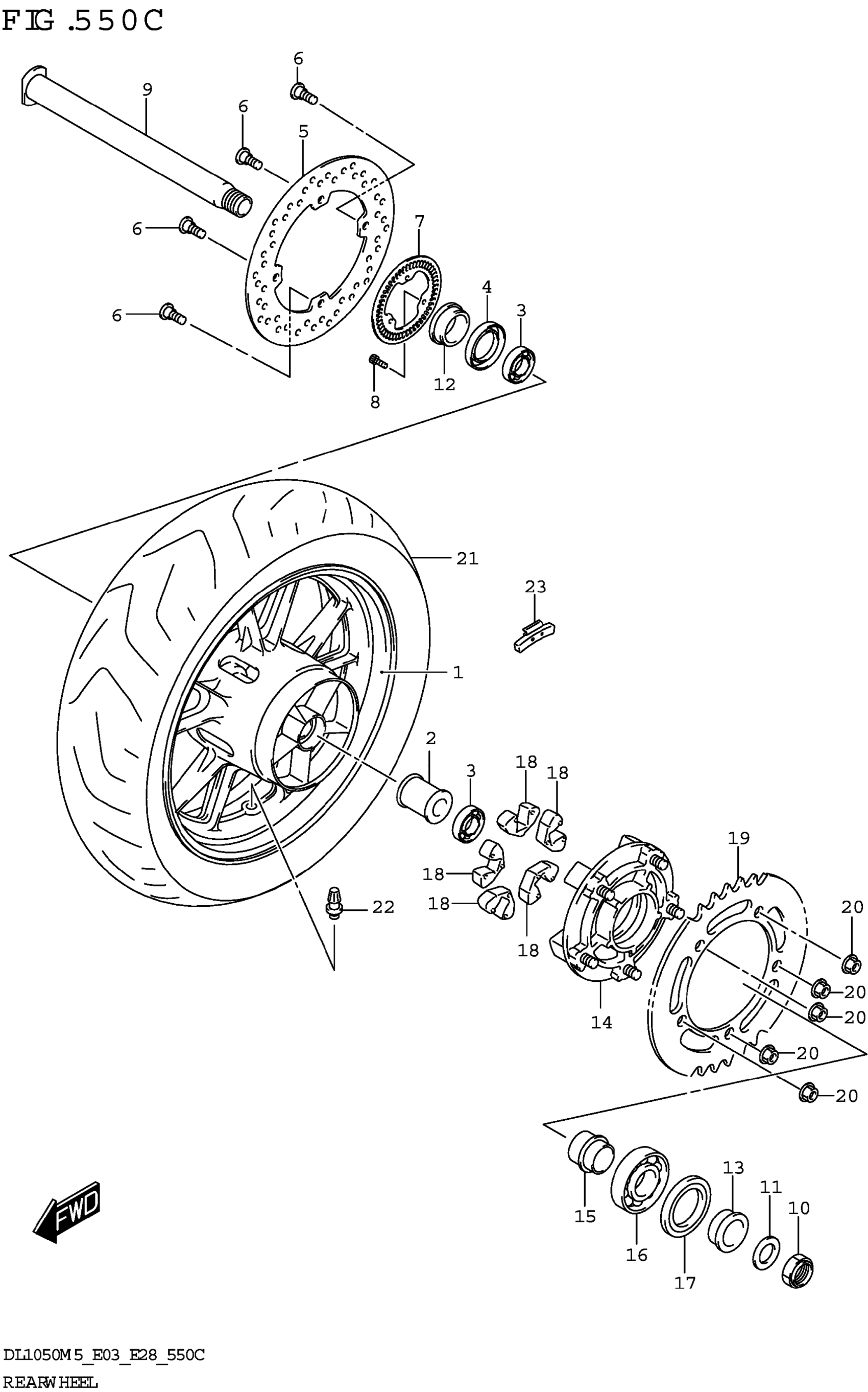

Suzuki DL1050RJM5 (2025) REAR WHEEL (DL1050RR) Diagram
