Description

Price

1

HUB,REAR

64111-06L00

$737.08

2-1

RIM,REAR WHEEL | BLACK BODY COLOR:C4X

65311-06L00

$480.88

2-2

RIM,REAR WHEEL | BLUE BODY COLOR:BT1,CK6

65311-06L20

$498.48

3

SPOKE,REAR WHEEL INNER,R

65321-06L00

$2.70

4

SPOKE,REAR WHEEL INNER,L

65323-06L00

$4.90

5

SPOKE,REAR WHEEL OUTER,L

65324-06L00

$2.72

6

NIPPLE,WHEEL SPOKE

65326-06L00

$2.61

7

ABSORBER,RR HUB SHOCK

64651-35F30

$50.20

8

RING,SPEED SENSOR RR (50T)

64162-17G00

$23.17

9

BOLT

07130-0512A

$2.19

10

SPACER,REAR HUB BEARING (20.8 | 27.2X124)

64731-49G00

$66.18

11

BEARING (28X52X12)

09262-28062

$23.81

12

SEAL,OIL (37X52X8)

09284-37002

$7.19

13

DISC,REAR BRAKE

69211-06L00

$209.98

14

BOLT (8X21)

09106-08160

$3.22

15

SPACER,REAR AXLE,R

64741-35F10

$12.34

16

DRUM,RR SPROCKET

64610-35F30

$363.98

17

AXLE,RR

64711-31J00

$95.63

18

RETAINER,RR SPROCKET DRUM

64733-35F00

$24.36

19

SPACER,REAR AXLE,L

64751-47H10

$21.15

20

NUT,REAR AXLE

64721-17K00

$15.01

21

BEARING (32X65X17)

09262-32024

$35.55

22

SEAL,OIL (39X65X7)

09285-39001

$9.58

23

SPROCKET,REAR,45T-525 (NT:45)

64511-39F00

$100.22

24

NUT

08319-3110A

$2.73

25

WASHER (25.2X42X3.2)

09160-25070

$4.30

26

TIRE,REAR

65110-06L11

$279.63

27

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

28

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$6.08

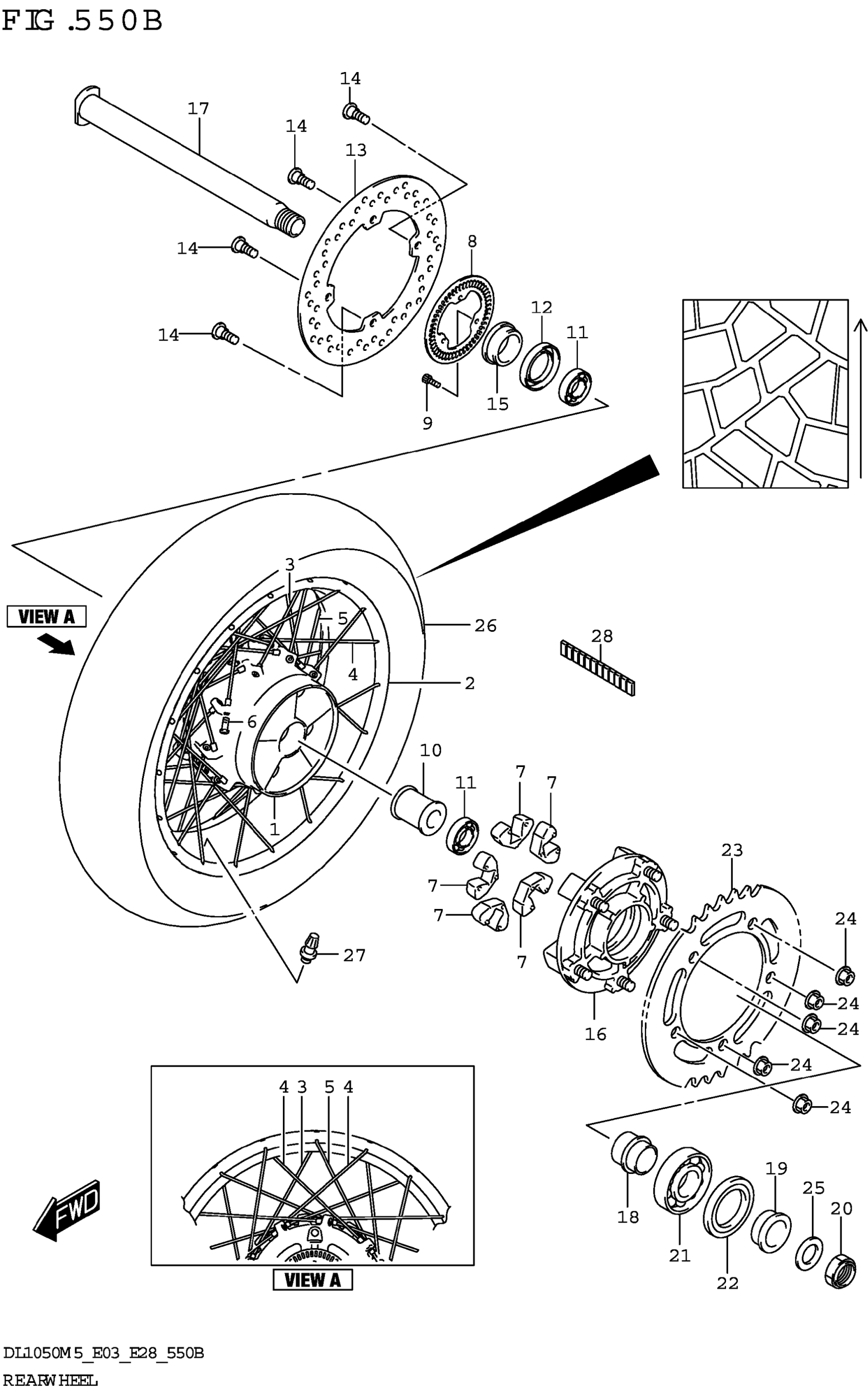

Suzuki DL1050RJM5 (2025) REAR WHEEL (DL1050RJ) Diagram
