Description

Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-31J40-YAP

$1,334.17

2

.SPACER,RR SWGARM PIVOT CTR ( | 0.8X27.2X196.7)

61281-31J00

Unavailable

3

.BEARING (20X27X30)

09263-20070

$37.72

4

.BEARING (27X35X35)

09263-27015

$27.55

5

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$38.37

6

SHAFT,RR SWGARM PIVOT

61211-31J00

Unavailable

7

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$42.53

8

NUT

09159-20006

$27.12

9

BUFFER,CHAIN TOUCH DEFENSE

61273-31J01

$34.88

10

SCREW (6X17.8)

09139-06226

$3.55

11

ADJUSTER,CHAIN

61446-40F00

$47.20

12

ADJUSTER,CHAIN

61445-40F00

$47.20

13

BOLT (8X50)

09100-08287

$3.10

14

NUT

08316-1008A

$2.45

15

CASE,CHAIN

61310-16G00

$98.40

16

BOLT (6X12)

09139-06225

$2.92

17

PLATE,RR SWING ARM BRKT

61124-33E00

$6.85

18

SCREW (6X12)

09125-06060

$1.78

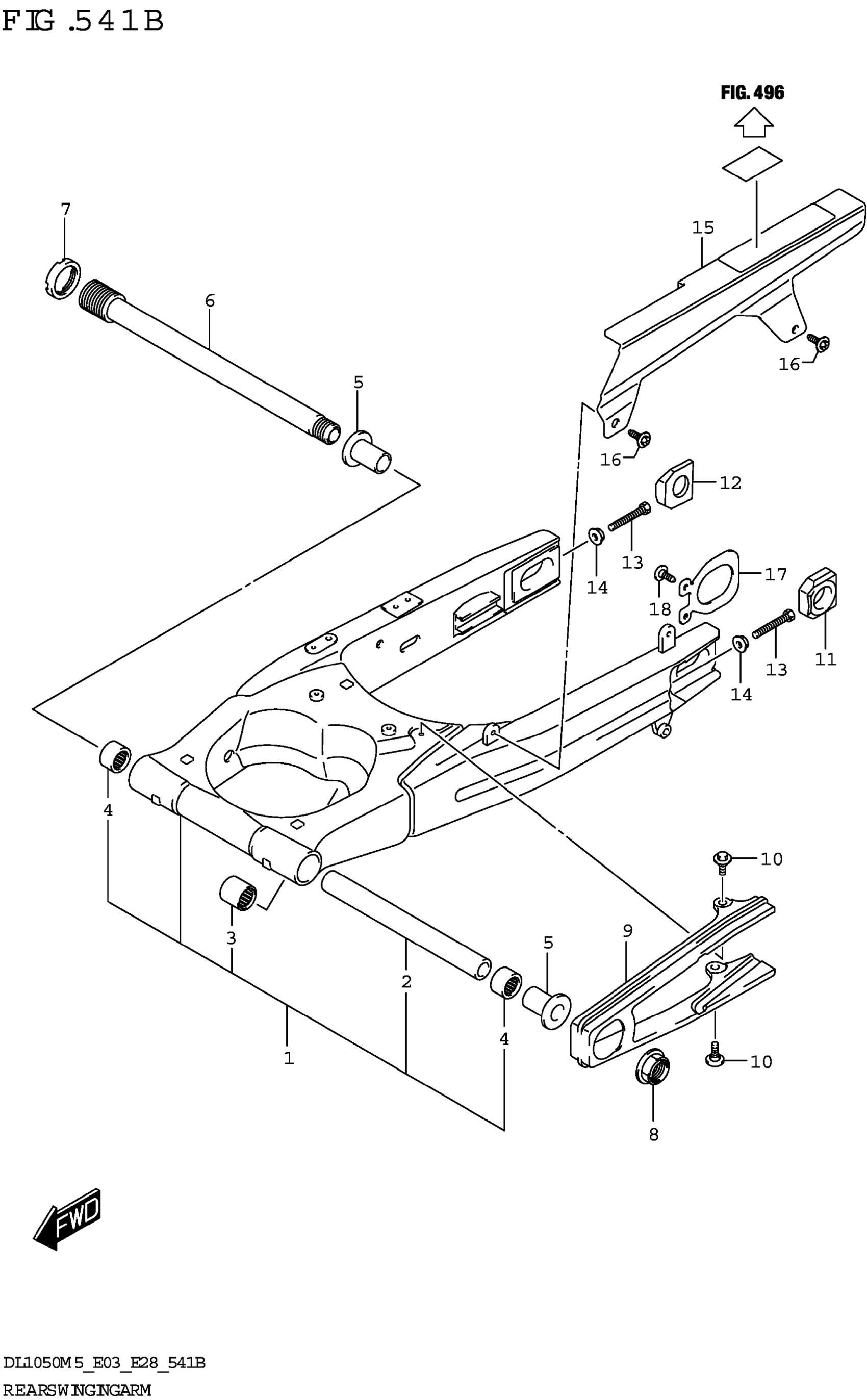

Suzuki DL1050RJM5 (2025) REAR SWINGINGARM (DL1050RR) Diagram

SWINGINGARM ASSY,REAR (BLACK)

.SPACER,RR SWGARM PIVOT CTR ( | 0.8X27.2X196.7)

.BEARING (20X27X30)

.BEARING (27X35X35)

SPACER,RR SWGARM PIVOT BEARIN

SHAFT,RR SWGARM PIVOT

NUT,RR SWGARM PIVOT BOLT

NUT

BUFFER,CHAIN TOUCH DEFENSE

SCREW (6X17.8)

ADJUSTER,CHAIN

ADJUSTER,CHAIN

BOLT (8X50)

NUT

CASE,CHAIN

BOLT (6X12)

PLATE,RR SWING ARM BRKT

SCREW (6X12)
