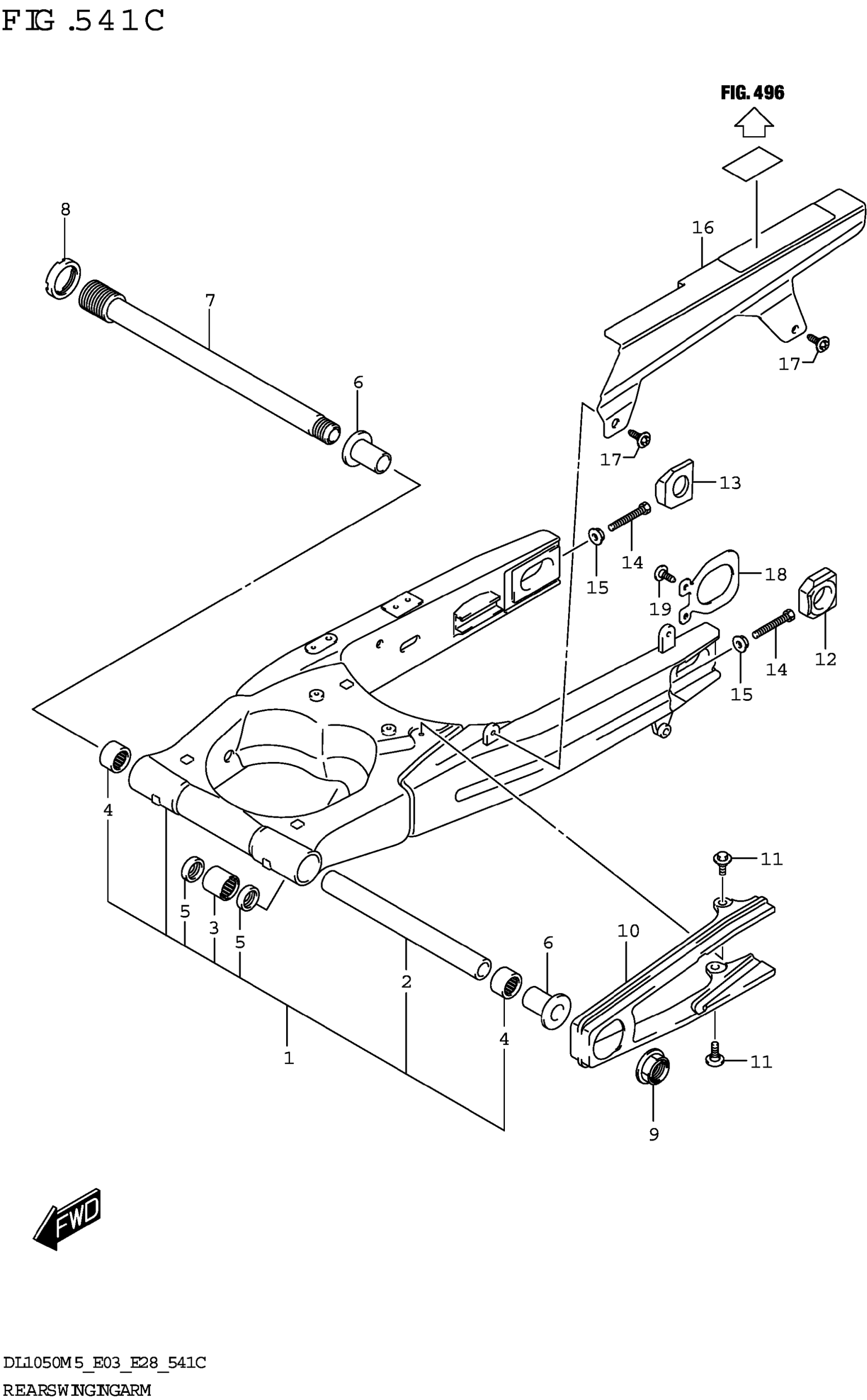

Suzuki DL1050RJM5 (2025) REAR SWINGINGARM (DL1050RJ:(E28)) Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK)

61000-31J30-YAP

$1,334.17

2

.SPACER,RR SWGARM PIVOT CTR ( | 0.8X27.2X196.7)

61281-31J00

Unavailable

3

.BEARING,RR CUSHION ROD

09263-20122

$15.23

4

.BEARING (27X35X35)

09263-27015

$27.55

5

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

6

SPACER,RR SWGARM PIVOT BEARIN

61251-41G00

$38.37

7

SHAFT,RR SWGARM PIVOT

61211-31J00

Unavailable

8

NUT,RR SWGARM PIVOT BOLT

61214-42E10

$42.53

9

NUT

09159-20006

$27.12

10

BUFFER,CHAIN TOUCH DEFENSE

61273-31J10

$28.90

11

SCREW (6X17.8)

09139-06226

$3.55

12

ADJUSTER,CHAIN

61446-40F00

$47.20

13

ADJUSTER,CHAIN

61445-40F00

$47.20

14

BOLT (8X50)

09100-08287

$3.10

15

NUT

08316-1008A

$2.45

16

CASE,CHAIN

61310-16G00

$98.40

17

BOLT (6X12)

09139-06225

$2.92

18

PLATE,RR SWING ARM BRKT

61124-33E00

$6.85

19

SCREW (6X12)

09125-06060

$1.78
