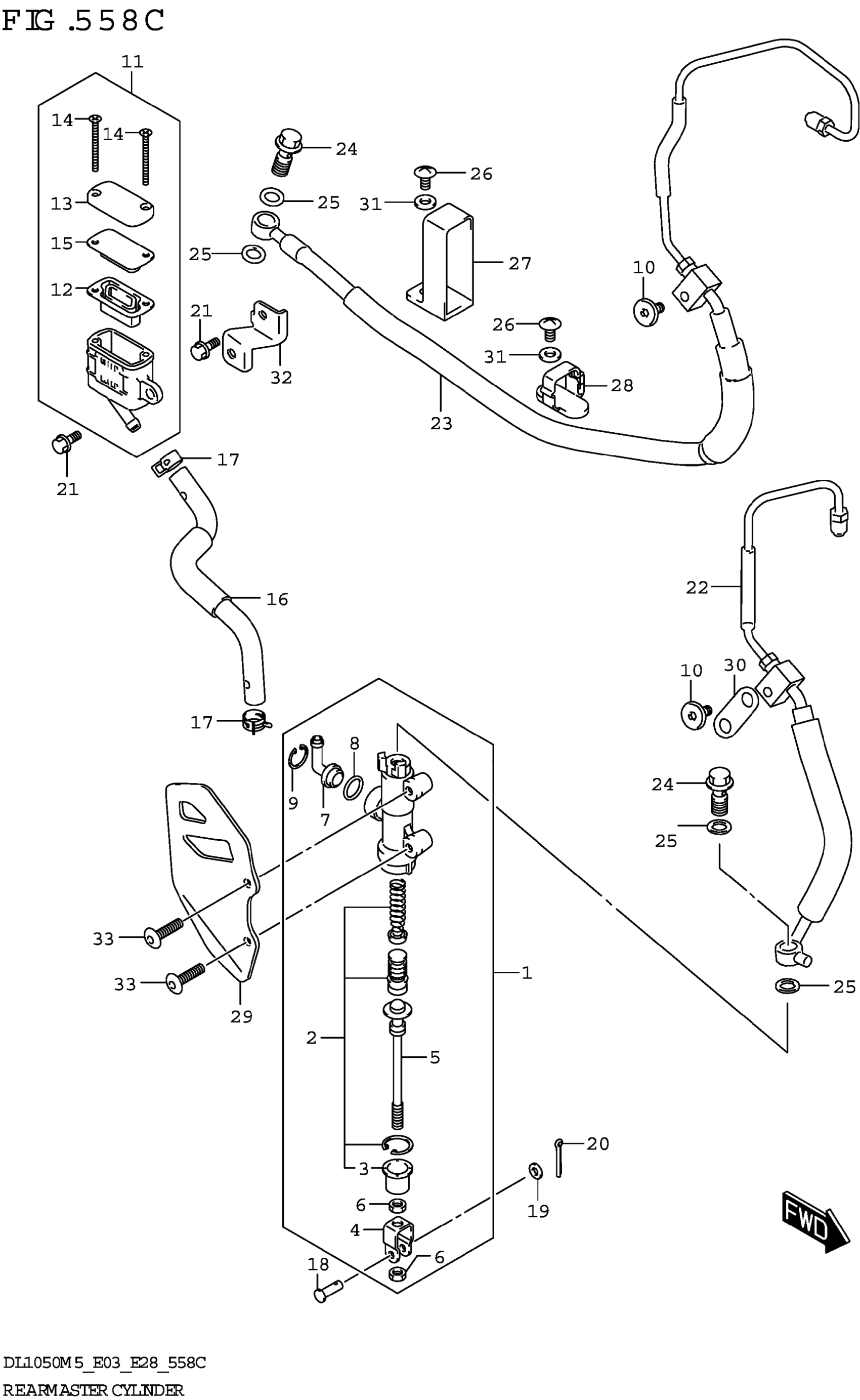

Suzuki DL1050RJM5 (2025) REAR MASTER CYLINDER (DL1050RR) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-31J00

$267.83

2

.PISTON/CUP SET

69600-34830

$40.18

3

.BOOT

69691-00A00

$5.00

4

.YOKE

69692-44H00

$19.03

5

.ROD,PUSH

69670-31J00

$38.28

6

NUT This part replaces 69693-24A00.

69693-05A00

$1.86

7

.CONNECTOR

69672-00B20

$6.42

8

.O-RING

69686-34200

$2.80

9

.CIRCLIP

69674-00B20

$3.73

10

SCREW (6X16)

09139-06221

$3.62

11

TANK ASSY,RESERVOIR

69740-06L00

$34.77

12

.DIAPHRAGM

69667-01H00

$7.12

13

.CAP

69669-18K00

$16.23

14

.SCREW

69689-01H00

$5.02

15

.PLATE,DIAPHRAGM

69668-01H00

$6.75

16

HOSE,RR RESERVOIR TANK

69730-06L20

$13.10

17

CLIP

09401-12412

Unavailable

18

PIN (6X18.2) This part replaces 09200-06037.

09200-06068

$3.71

19

WASHER

08322-0106A

$1.83

20

PIN

04111-2015A

$1.22

21

BOLT

01547-0612A

$2.01

22

HOSE ASSY,RR BK MASTER TO UNI

69200-06L40

$77.73

23

HOSE ASSY,RR UNIT TO BK CLPR

69400-06L60

$82.13

24

UNION This part replaces 09360-10042.

09360-10062

$5.81

25

WASHER (10X15X1.5)

09161-10009

$1.83

26

SCREW

02142-0616B

$1.80

27

GUIDE,RR BRAKE HOSE

69243-16G00

Unavailable

28

GUIDE,RR BRAKE HOSE

61196-44H00

Unavailable

29

COVER,REAR MASTER CYLINDER

69641-06L00

$35.93

30

CUSHION,REAR BRAKE HOSE

69273-06L00

$2.45

31

WASHER,REAR BRAKE HOSE GUIDE

69486-31J00

Unavailable

32

BRACKET,RR RSVR TANK

69750-06L10

$7.63

33

SCREW (6X25)

09139-06192

$2.92
