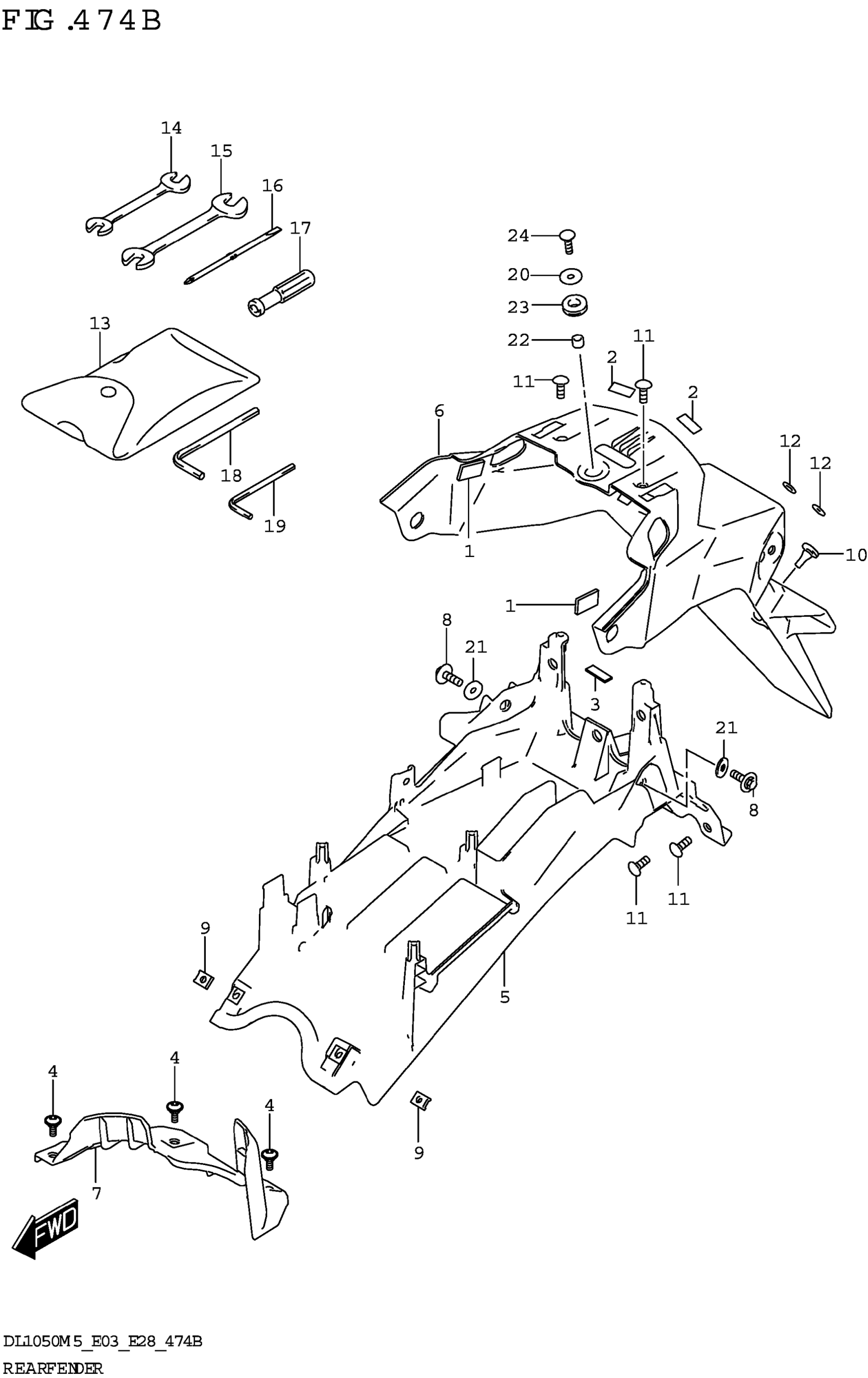

Suzuki DL1050RJM5 (2025) REAR FENDER (DL1050RJ) Diagram

#

Description
Price

1

PROTECTOR (50X50X5) This part replaces 33652-21G00.

33652-20C00

$2.99

2

PROTECTOR,WIRING HARNESS (10X | 5X0.13)

36920-37H00

Unavailable

3

CUSHION,TANK SIDE COVER

44183-23H00

$12.97

4

SCREW (5X13)

47912-31J00

$2.92

5

FENDER,REAR FRONT

63111-06L10

$91.42

6

FENDER,REAR REAR

63112-06L20

$66.63

7

MUDGUARD,REAR FENDER

63411-06L00

$47.63

8

BOLT

01500-0612B

$2.47

9

NUT (M5)

09148-05052

$3.37

10

CUSHION

09321-06026

$2.92

11

SCREW

03541-0616B

$2.59

12

WASHER

08322-0106B

$2.26

13

TOOL BAG

09811-00309

$6.50

14

SPANNER,OPEN (10X12)

09813-00030

$5.75

15

SPANNER,OPEN (14X17)

09813-00031

Unavailable

16

DRIVER

09814-00015

$3.70

17

GRIP,DRIVER

09814-00016

$4.22

18

SPANNER,HEXAGON (5)

96514-17K00

$4.77

19

SPANNER,HEXAGON (4)

96514-17K10

$3.30

20

WASHER (6.5X20X1.2)

09160-06077

$1.91

21

WASHER This part replaces 09160-06132.

09160-06084

$1.78

22

SPACER (6.5X10X7)

09180-06283

$1.91

23

CUSHION

09320-10059

$3.83

24

SCREW

02142-0620A

$1.49
