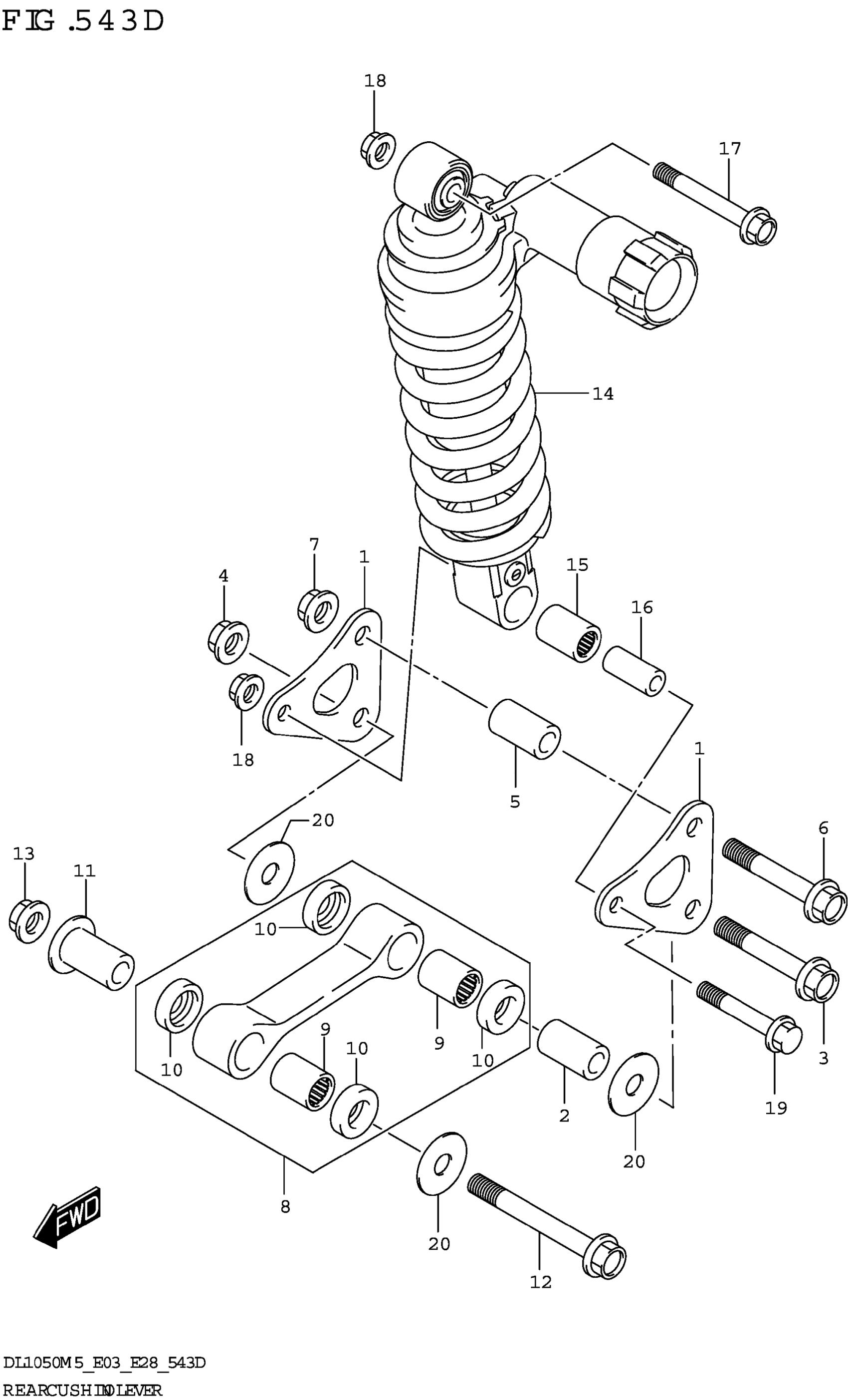

Suzuki DL1050RJM5 (2025) REAR CUSHION LEVER (DL1050RR) Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-31J00

Unavailable

2

SPACER,RR CUSHION LEVER FR (1 | X20X34)

62317-27C10

$16.76

3

BOLT (12X62)

62668-42A02

$10.67

4

NUT

09159-12056

$7.37

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

6

BOLT (12X62)

62668-42A02

$10.67

7

NUT

09159-12056

$7.37

8

ROD SET,RR CUSHION

62600-31850

$88.65

9

.BEARING (20X27X20)

09263-20063

Unavailable

10

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$5.24

11

SPACER,RR CUSHION ROD FR

62647-47H00

$35.28

12

BOLT,RR CUSHION LEVER UPR

62658-37F10

$10.37

13

NUT

09159-12056

$7.37

14

ABSORBER ASSY,REAR SHOCK (GRA | )

62100-06L30-17U

$781.23

15

BEARING (17X24X32)

09263-17046

$41.45

16

SPACER,RR SHOCK ABS LWR

62317-47H00

$20.45

17

BOLT (10X70)

09103-10033

$6.17

18

NUT (M10)

09159-10115

$3.55

19

BOLT (10X58)

09103-10428

$5.07

20

WASHER (12X34X1.0)

09160-12037

$3.83
