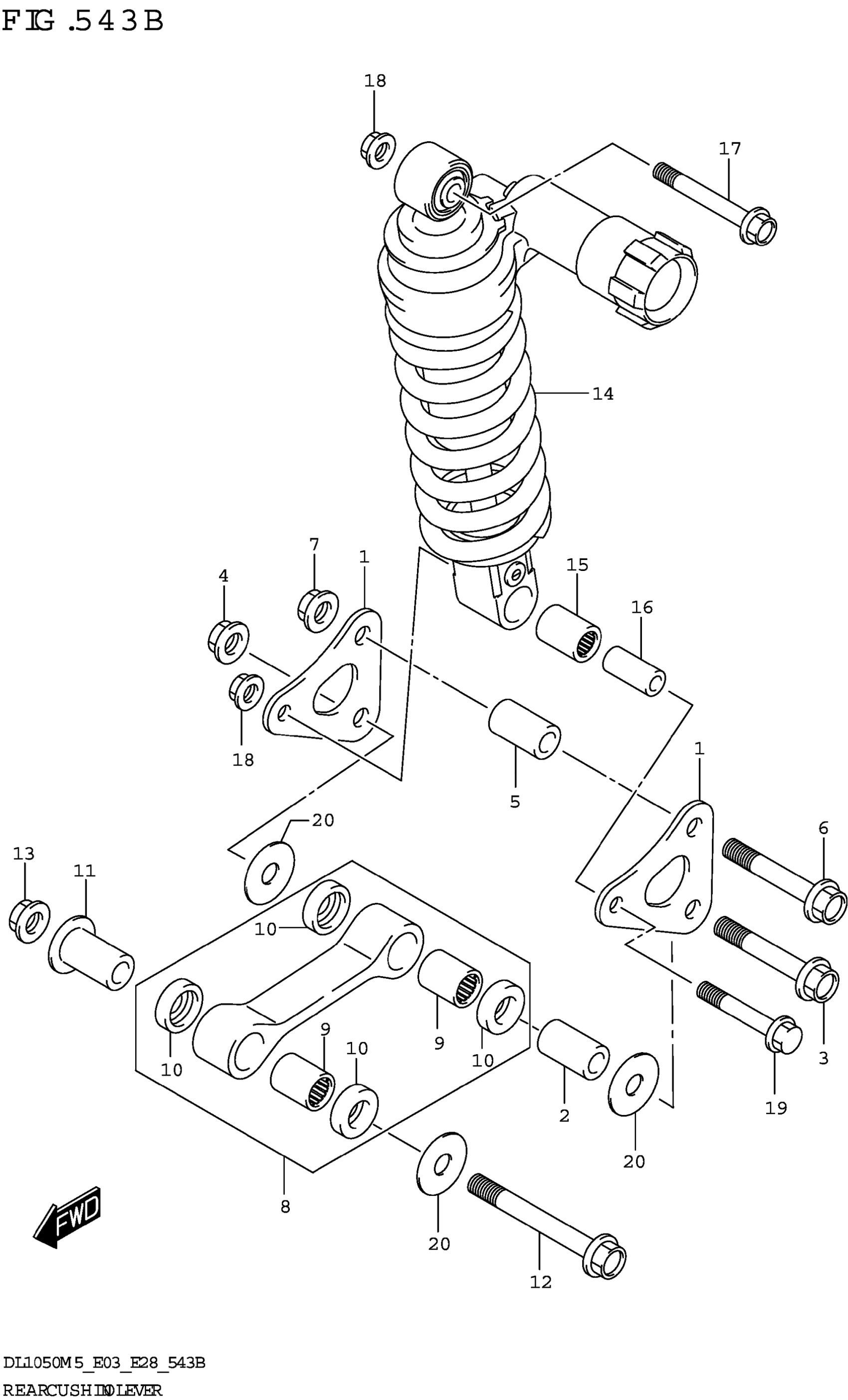

Suzuki DL1050RJM5 (2025) REAR CUSHION LEVER (DL1050RJ) Diagram

#

Description
Price

1

LEVER,REAR CUSHION

62611-06LA0

$10.85

2

SPACER,RR CUSHION LEVER FR (1 | X20X34)

62317-27C10

$15.78

3

BOLT (12X62)

62668-42A02

$12.03

4

NUT

09159-12056

$6.65

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$23.73

6

BOLT (12X62)

62668-42A02

$12.03

7

NUT

09159-12056

$6.65

8

ROD SET,RR CUSHION

62600-06810

$209.98

9

.BEARING (20X27X20)

09263-20063

Unavailable

10

DUST SEAL, INNER This part replaces 09285-20005.

09283-20031

$4.73

11

SPACER,RR CUSHION ROD FR

62647-47H00

$39.83

12

BOLT,RR CUSHION LEVER UPR

62658-37F10

$11.70

13

NUT

09159-12056

$6.65

14

ABSORBER ASSY,REAR SHOCK (GRA | )

62100-06LB0-17U

$870.47

15

BEARING (17X24X32)

09263-17046

$45.05

16

SPACER,RR SHOCK ABS LWR

62317-47H00

$23.08

17

BOLT (10X70)

09103-10033

$5.64

18

NUT (M10)

09159-10115

$3.21

19

BOLT (10X58)

09103-10428

$5.52

20

WASHER (12X34X1.0)

09160-12037

$3.52
