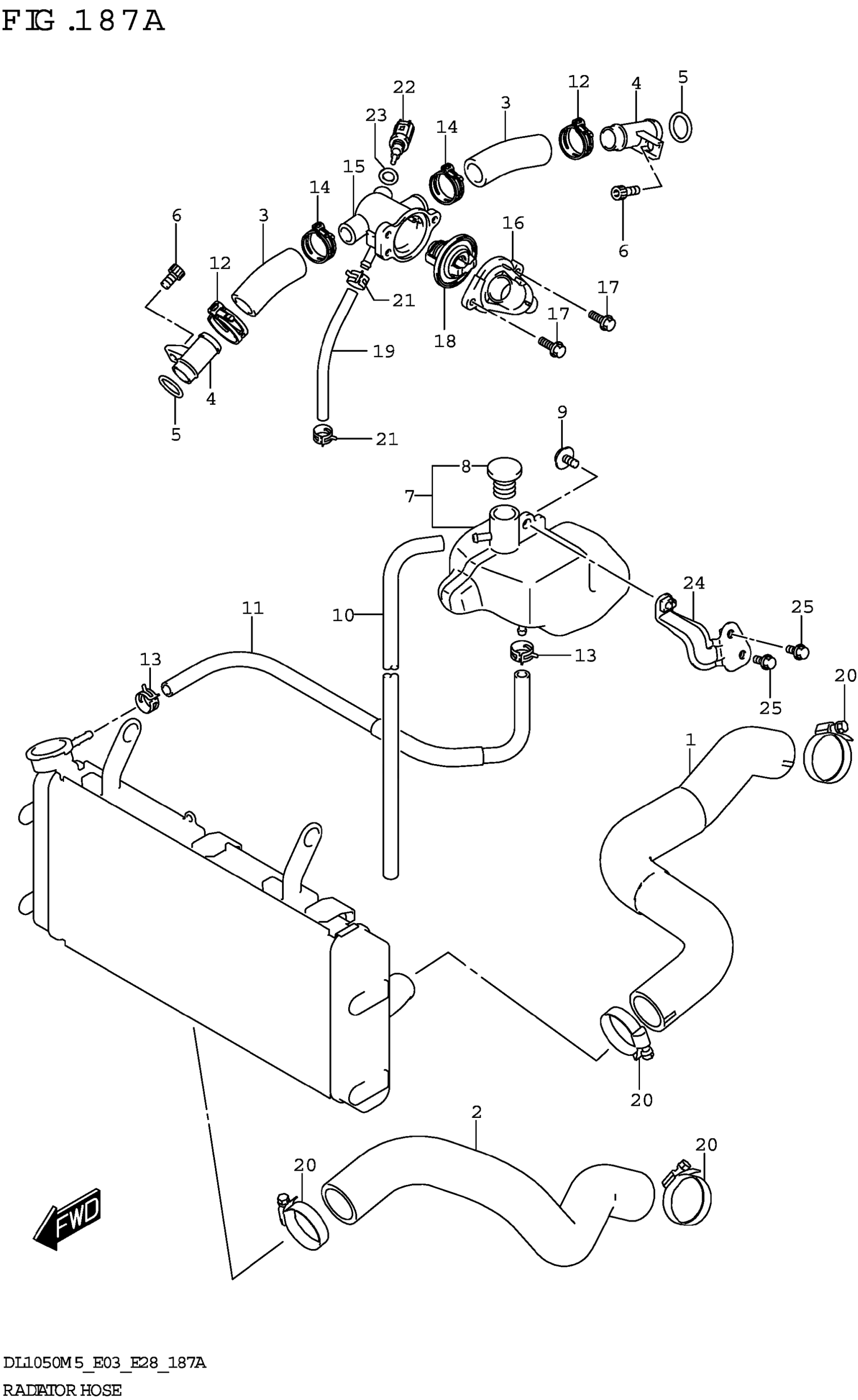

Suzuki DL1050RJM5 (2025) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE,RADIATOR INLET

17851-06L00

$31.93

2

HOSE,RADIATOR OUTLET

17852-06L00

$26.37

3

HOSE,CONNECTOR INLET

17853-02F10

$11.18

4

UNION,CONNECTOR HOSE

17890-06G20

$14.43

5

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.83

6

BOLT

07130-0612A

$2.50

7

TANK ASSY,RESERVOIR

17910-31J00

Unavailable

8

.CAP,WATER RESERVOIR TANK

17931-31J00

$7.20

9

BOLT (6X12)

09111-06085

$4.54

10

HOSE,RSVR TANK OVFL

17982-06L00

$6.25

11

HOSE,RSVR TANK INLET

17981-06L00

$18.57

12

CLAMP

09401-24002

$4.18

13

CLIP (ID:8.6)

09401-08411

$1.78

14

CLAMP

09401-25001

$3.82

15

CONNECTOR,THERMOSTAT INLET

17662-02F11

$64.30

16

CAP,THERMOSTAT CONNECTOR

17663-42E00

$54.75

17

BOLT

01550-0616A

$1.97

18

THERMOSTAT,WATER

17670-06G51

$25.77

19

HOSE,WATER BYPASS

17856-16G10

$22.22

20

CLAMP

09401-29001

$2.92

21

CLIP

09401-12414

$3.26

22

SENSOR,TEMP

13650-49X00

$90.19

23

GASKET (12X17X1)

09168-12017

$1.95

24

BRACKET,RSVR TANK

17920-31J00

Unavailable

25

BOLT

01550-0610A

$1.97
