2025 Suzuki DL1050RJM5 Muffler Diagram

← All diagrams

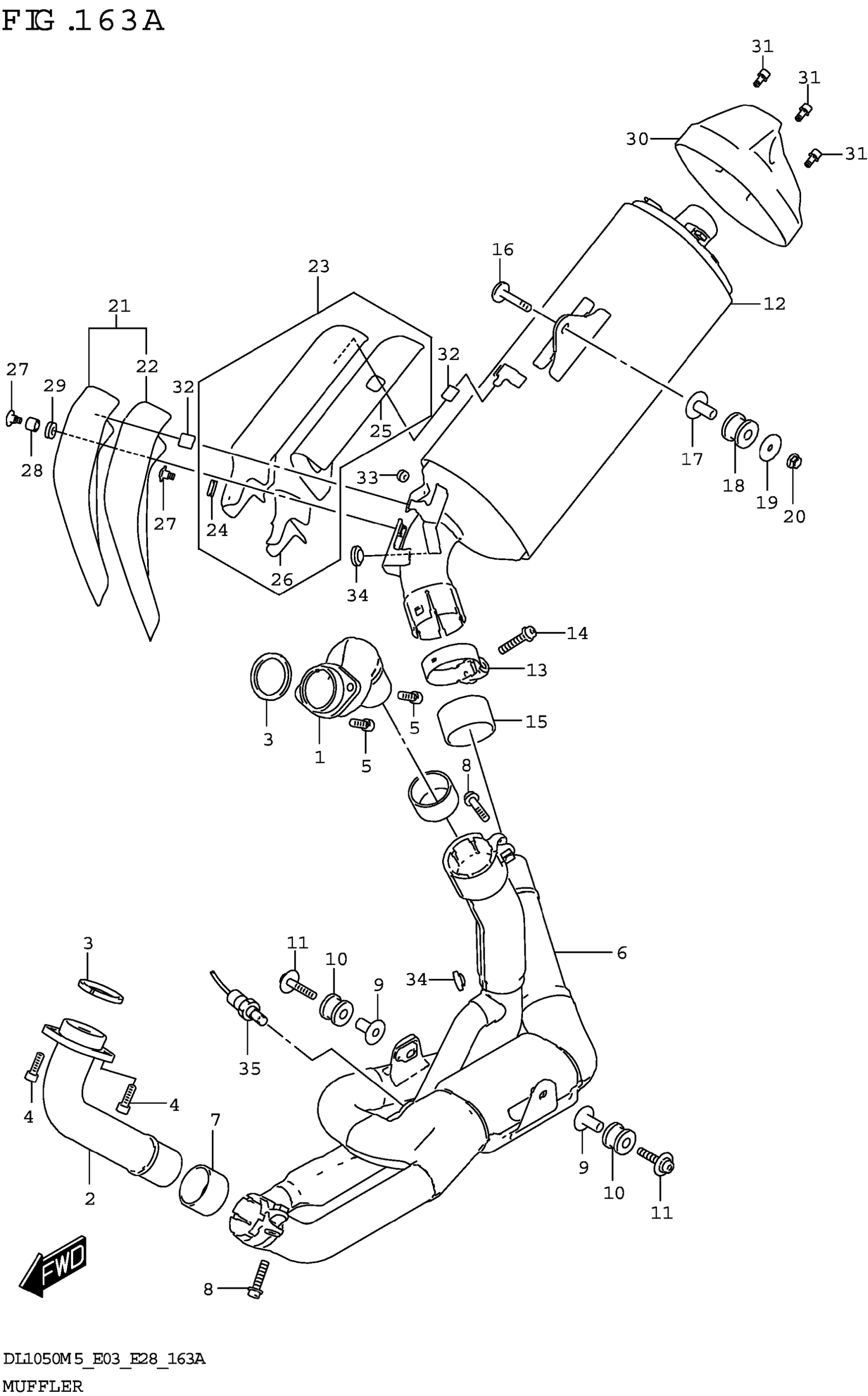

Find the part on the Muffler diagram for your 2025 Suzuki DL1050RJM5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Suzuki DL1050RJM5 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE,EXH RR

14150-06L00

1
Out of stock

2

PIPE,EXH FR

14160-06L00

1
Out of stock

3

.GASKET,EXH PIPE

14181-31D00

2
Out of stock

4

BOLT (8X25)

09106-08178

2
Out of stock

5

BOLT

07130-0825A

2
Out of stock

6

PIPE,EXH CTR

14205-06L10

1
Out of stock

7

CONNECTOR,JT

14771-42F50

1
Out of stock

8

BOLT (8X35)

09106-08197

2
Out of stock

9

SPACER (8.6X12X24.2)

09180-08152

2
Out of stock

10

CUSHION (12X30X24)

09320-12077

2
Out of stock

11

BOLT

09116-08176

2
Out of stock

12

BODY,MUFFLER

14310-06L20-H01

1
Out of stock

13

CLAMP,MUF CONN

14459-31J10

1
Out of stock

14

BOLT (8X40)

09106-08162

1
Out of stock

15

CONNECTOR,MUF

14771-18H00

1
Out of stock

16

BOLT (8X45)

09106-08195

1
Out of stock

17

SPACER (8.6X12X25.5)

09180-08156

1
Out of stock

18

CUSHION

09320-12049

1

$10.34

In stock

19

WASHER (8.5X33X1.6)

09160-08162

1
Out of stock

20

NUT

08316-1008B

1
Out of stock

21

COVER,MUF FR

14760-06L00

1
Out of stock

22

.SHIELD,MUF COV FR HEAT NO.1

14762-06L00

1
Out of stock

23

COVER,MUF

14780-06L00

1
Out of stock

24

CUSHION (8.4X18X6)

09320-08066

1
Out of stock

25

.SHIELD,MUF COV HEAT

14784-06L00

1
Out of stock

26

.SHIELD,MUF COV HEAT NO.2

14785-06L00

1
Out of stock

27

SCREW

09139-06240

2
Out of stock

28

SPACER (6.5X9X5.7)

09180-06256

2
Out of stock

29

CUSHION (8.4X18X6)

09320-08066

1
Out of stock

30

COVER,MUF RR

14791-06L01

1
Out of stock

31

BOLT

09116-06528

3
Out of stock

32

GROMMET

14795-10FA0

1
Out of stock

33

CUSHION (4X12X8)

09320-04013

1
Out of stock

34

CUSHION

09321-10018

2
Out of stock

35

SENSOR,OXYGEN

18213-25L00

1
Out of stock
