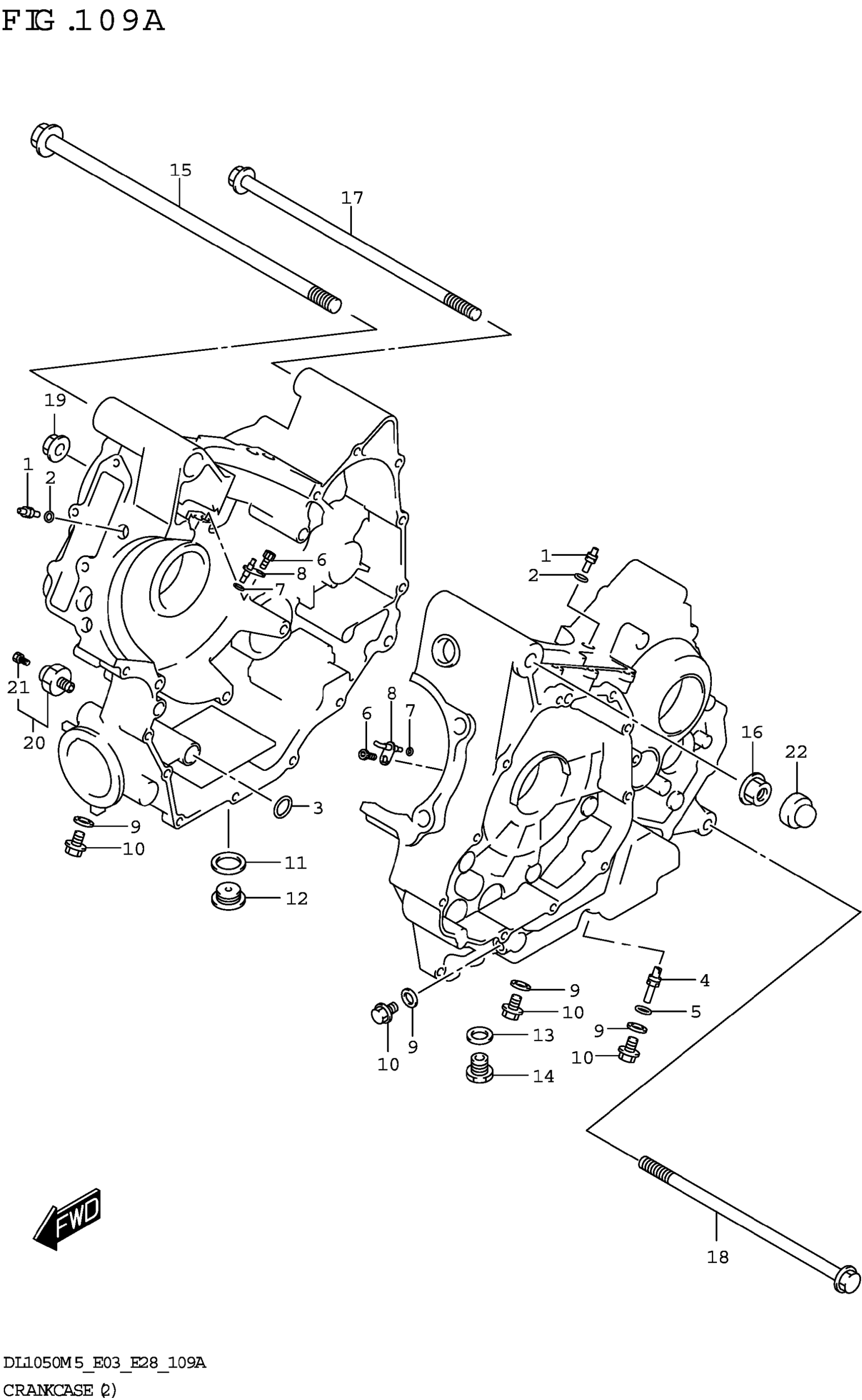

Suzuki DL1050RJM5 (2025) CRANKCASE (2) (DL1050RR) Diagram

#

Description
Price

1

JET (14)

09493-28010

$18.00

2

O-RING (D:1.2,ID:4)

09280-04004

$1.76

3

O RING (D:1.9,ID:12.6) This part replaces 09280-13007.

09280-12009

$2.87

4

JET,T/M OIL GALLERY

09493-20014

$18.33

5

O-RING (D:1.2,ID:4)

09280-04004

$1.76

6

BOLT (6X12)

09106-06075

$2.50

7

O-RING (D:1.2,ID:4.7)

09280-05007

$2.08

8

JET,PISTON COOLING

11390-06G10

Unavailable

9

GASKET (8.2X14X1)

09168-08016

$1.64

10

BOLT (8X12)

01550-0812A

$2.31

11

GASKET (16X22X2)

09168-16002

$1.89

12

PLUG (16X8)

09248-16012

$4.19

13

GASKET (13.8X18.8X4.8) | OIL DRAIN

09168-14002

$2.83

14

PLUG (14X20) | OIL DRAIN

09247-14036

$5.58

15

BOLT (12X300)

09103-12016

$28.57

16

NUT

09159-12056

$6.65

17

BOLT (10X225)

09103-10205

$21.22

18

BOLT (10X260)

09103-10226

$18.20

19

NUT

08319-3110A

$2.73

20

SWITCH ASSY,OIL PRESSURE

37820-33D11

$27.58

21

.BOLT,OIL PRESSURE SWITCH

37822-33D00

$4.92

22

CAP,ENG MTG NUT

11611-06L00

$8.32
