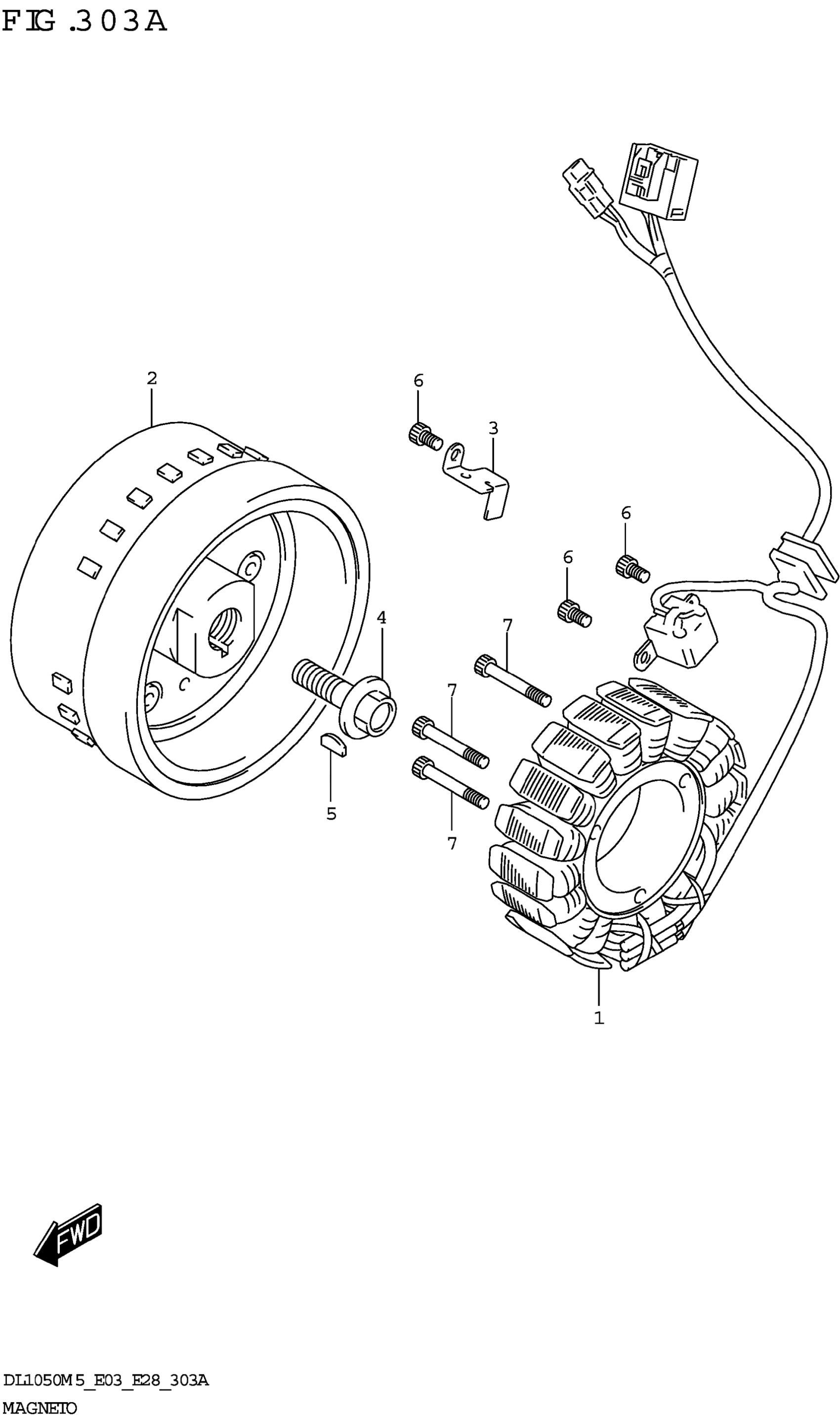

Suzuki DL1050RJM5 (2025) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY,MAGNETO

32101-06L00

$455.35

2

ROTOR ASSY,MAGNETO

32102-06L00

$678.63

3

CLAMP,GENERATOR LEAD WIRE

32371-13E30

$5.63

4

BOLT (14X43)

09103-14001

$12.85

5

KEY (B:4,D:16,H6.5)

09420-04008

$3.08

6

BOLT

07130-0512A

$2.19

7

BOLT (6X40)

09106-06120

Unavailable
