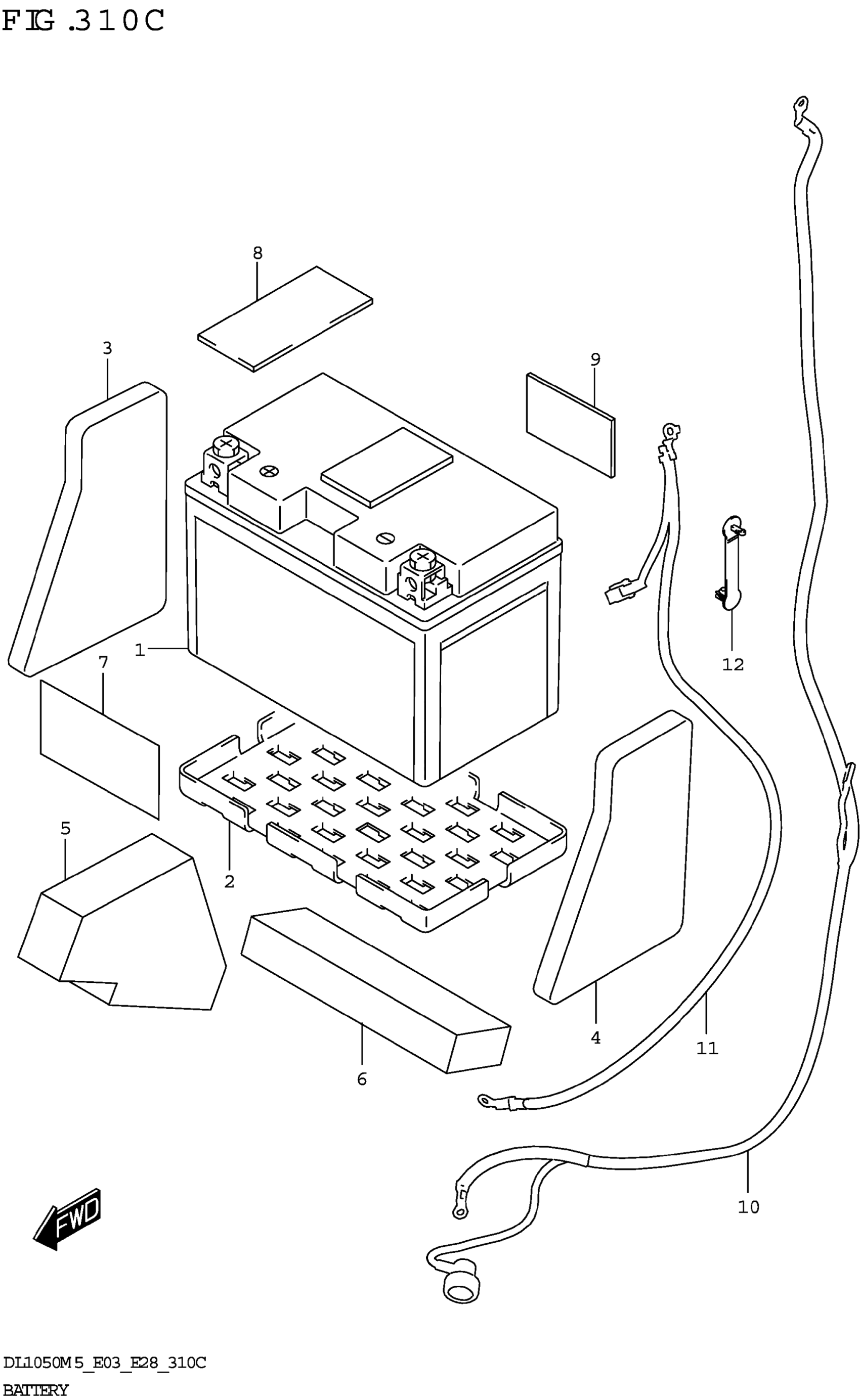

Suzuki DL1050RJM5 (2025) BATTERY (DL1050RJ) Diagram

#

Description
Price

1

BATTERY ASSY (FTZ14S,12V/11.2 | H)

33620-31J01

$147.93

2

PROTECTOR,BATTERY

33652-16G00

$13.50

3

CUSHION,BATTERY RH

33652-06L10

$3.00

4

CUSHION,BATTERY LH

33652-06L00

$3.00

5

CUSHION,BATTERY

33652-06L20

$13.53

6

CUSHION,BATTERY

33652-06L30

$6.32

7

PROTECTOR (40X85X3)

33652-28C00

Unavailable

8

CUSHION (30X50X3)

33652-36001

$1.68

9

CUSHION (50X42X2.0)

51553-15D40

$9.53

10

WIRE,STARTER MOTOR LEAD

33810-06LJ0

$59.05

11

WIRE,BATTERY MINUS LEAD

33860-06LJ0

$33.52

12

CLAMP,LEAD WIRE

36651-06L00

$4.90
