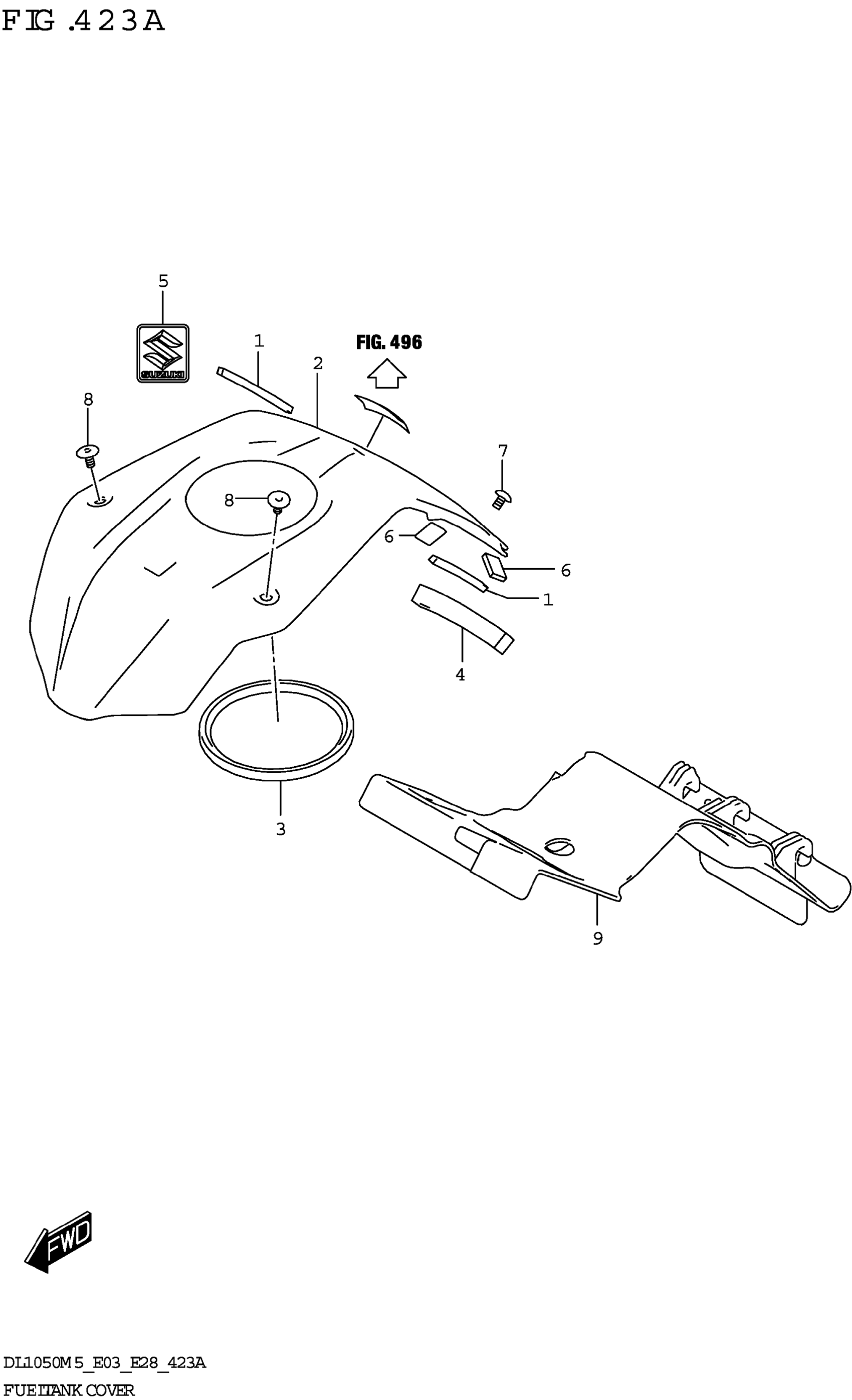

Suzuki DL1050RJM5 (2025) FUEL TANK COVER (DL1050RJ) Diagram

#

Description
Price

1

CUSHION,FUEL TANK COVER CTR

44277-06L00

$4.67

2

COVER,FUEL TANK CTR (BLACK)

44291-06L00-YKV

$205.65

3

RUBBER,FUEL TANK COVER

44295-07L01

$20.10

4

CUSHION,FUEL TANK REAR

44292-06L00

$3.22

5

EMBLEM,S

68281-48K00

$4.90

6

CUSHION (15X15X2)

94642-10GA0

$4.03

7

SCREW (6X10)

09139-06172

$3.04

8

SCREW (6X13)

09139-06229

$2.77

9

SHEET,HEAT SHIELD RUBBER

44271-06L20

$48.48
