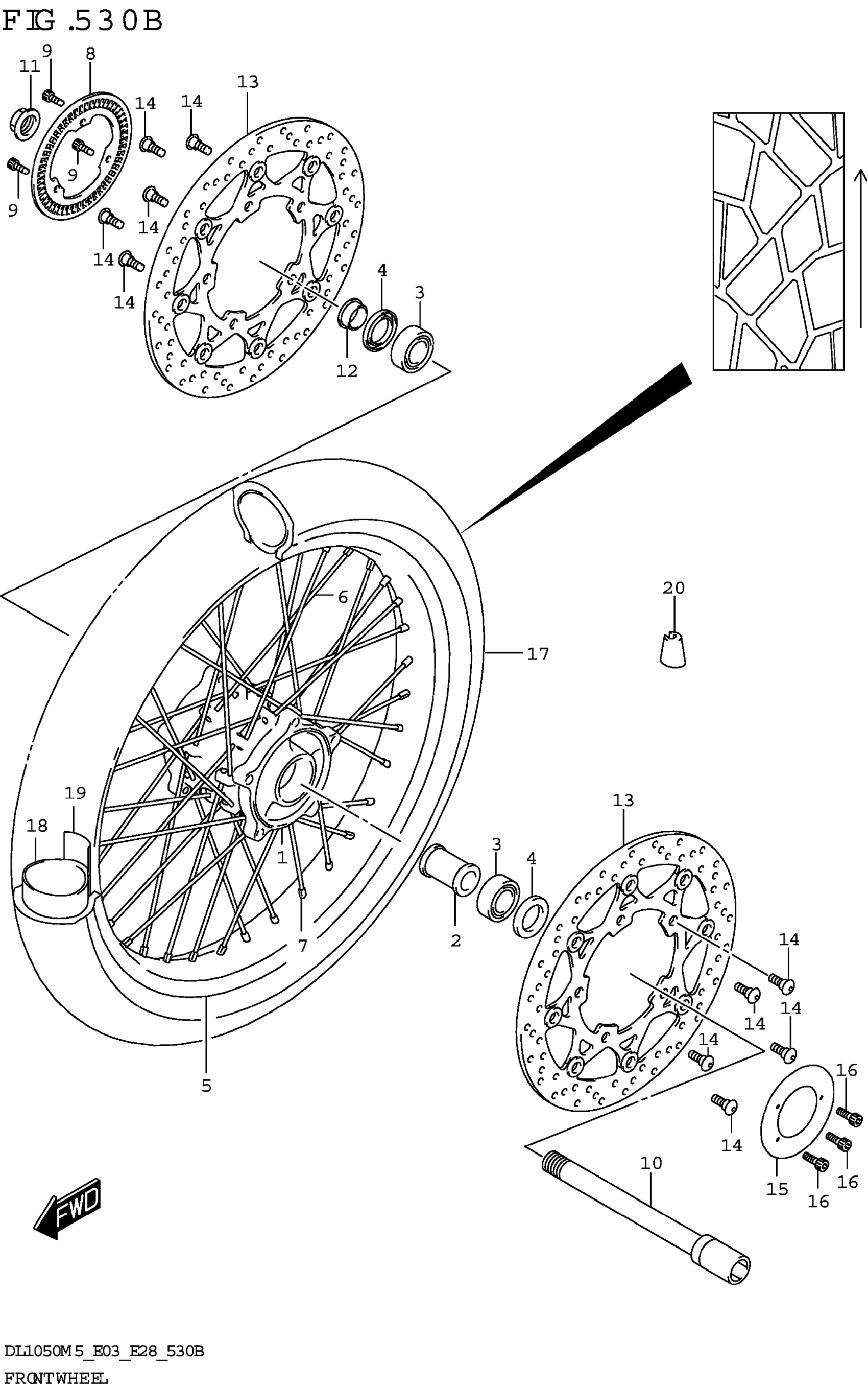

Suzuki DL1050RJM5 (2025) FRONT WHEEL (DL1050RJ) Diagram

#

Description
Price

1

HUB,FRONT

54111-06L00

$656.38

2

SPACER,FR HUB BEARING

54731-33E20

$55.32

3

BEARING (25X52X15)

09262-25191

$21.91

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5-1

RIM,FRONT WHEEL | BLACK BODY COLOR:C4X

55311-06L00

$434.95

5-2

RIM,FRONT WHEEL | BLUE BODY COLOR:BN8,CK6

55311-06L20

$457.96

6

SPOKE,FRONT WHEEL

55321-06L00

$5.43

7

NIPPLE,WHEEL SPOKE

55326-06L00

$4.50

8

RING,SPEED SENSOR FR

54162-27G10

$116.12

9

BOLT

07130-0512A

$2.19

10

AXLE,FR

54711-31J00

$155.45

11

NUT,FR AXLE

54712-47H00

$46.87

12

SPACER,FR AXLE,R

54751-41G10

$17.99

13

DISC,FRONT BRAKE

59210-31J10

$296.75

14

BOLT,DISC

09106-08208

$2.70

15

PLATE,FRONT HUB

54132-06L00

$18.16

16

BOLT

07130-0512A

$2.19

17

TIRE,FRONT

55110-06L11

$234.02

18

TUBE ASSY,WHEEL INNER

55200-29F01

$31.37

19

PROTECTOR,WHEEL INNER TUBE

55261-44AF0

$7.77

20

BALANCER,WHEEL (20G)

55412-41F00

$8.12
