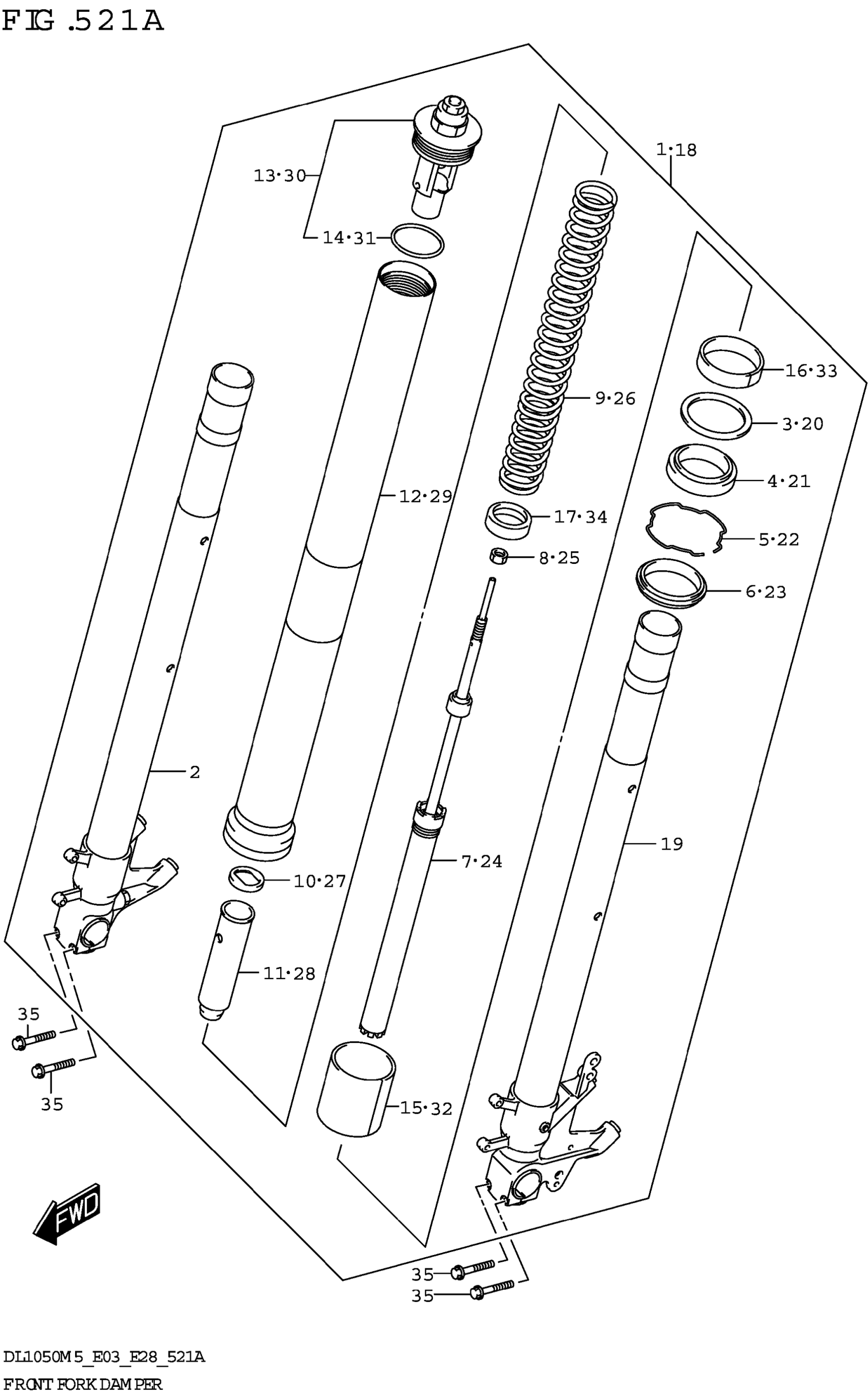

Suzuki DL1050RJM5 (2025) FRONT FORK DAMPER (DL1050RR) Diagram

#

Description
Price

1

DAMPER ASSY RH

51103-06L00

$1,043.32

2

.TUBE,INNER,R

51110-31J21

$404.67

3

.WASHER

51158-14200

$5.05

4

.SEAL,OIL

51153-44G00

$31.18

5

.RING,STOPPER

51156-14200

$5.05

6

.SEAL,DUST

51173-02FA0

$26.58

7

.CYLINDER

51146-06L00

$194.73

8

.NUT, ROD

51352-13A60

$3.03

9

.SPRING

51171-31J00

Unavailable

10

.WASHER

51158-40F30

$10.42

11

.SPACER, SPRING

51176-48G10

$27.40

12

.TUBE,OUTER

51131-31J30

Unavailable

13

.CAP

51351-31J30

$223.60

14

..O RING

62278-14100

$4.03

15

.PISTON

51112-31J00

$11.17

16

.METAL,SLIDE

51152-31J00

$10.38

17

.SEAT,SPRING

51178-31J00

Unavailable

18

DAMPER ASSY LH

51104-06L00

$1,043.32

19

.TUBE,INNER,L

51120-31J21

$437.03

20

.WASHER

51158-14200

$5.05

21

.SEAL,OIL

51153-44G00

$31.18

22

.RING,STOPPER

51156-14200

$5.05

23

.SEAL,DUST

51173-02FA0

$26.58

24

.CYLINDER

51146-06L00

$194.73

25

.NUT, ROD

51352-13A60

$3.03

26

.SPRING

51171-31J00

Unavailable

27

.WASHER

51158-40F30

$10.42

28

.SPACER, SPRING

51176-48G10

$27.40

29

.TUBE,OUTER

51131-31J30

Unavailable

30

.CAP

51351-31J30

$223.60

31

..O RING

62278-14100

$4.03

32

.PISTON

51112-31J00

$11.17

33

.METAL,SLIDE

51152-31J00

$10.38

34

.SEAT,SPRING

51178-31J00

Unavailable

35

BOLT

51166-24F60

$5.58
