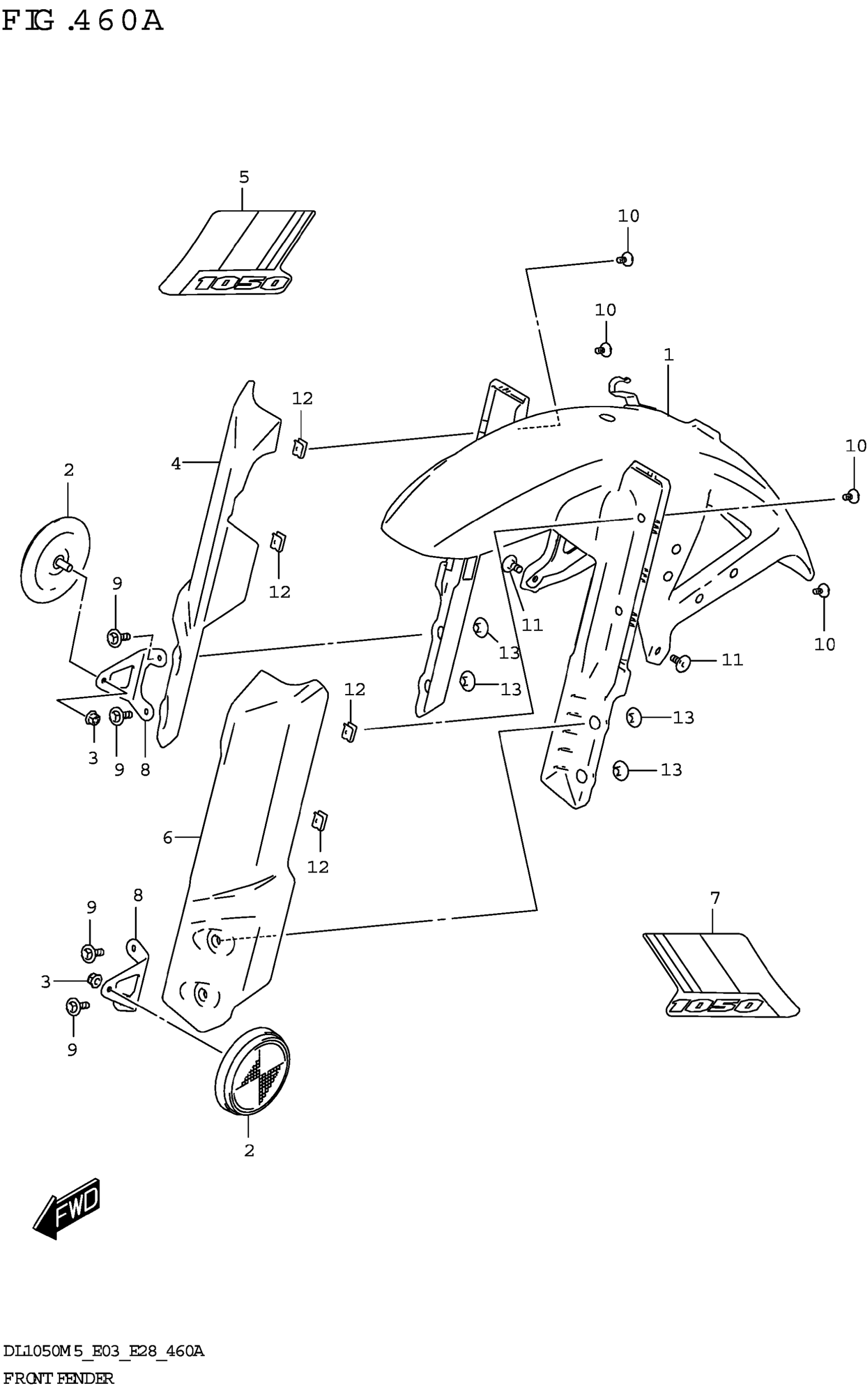

Suzuki DL1050RJM5 (2025) FRONT FENDER (DL1050RJ) Diagram

#

Description
Price

1

FENDER,FRONT

53110-06L00

$261.93

2

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

3

NUT

08319-3105B

$3.55

4-1

COVER,FR FENDER SIDE,R (BLACK | BODY COLOR:C4X

53120-06L00-CVX

$64.98

4-2

COVER,FR FENDER SIDE,R (YELLO | ) BODY COLOR:BT1

53120-06L00-ZFX

$64.98

4-3

COVER,FR FENDER SIDE,R (WHITE | BODY COLOR:CK6

53120-06L00-5UX

$64.98

5-1

.TAPE,FRONT FENDER,R | BODY COLOR:C4X

68151-06L00-C1P

$20.76

5-2

.TAPE,FRONT FENDER,R | BODY COLOR:BT1

68151-06L00-CL8

$20.76

5-3

.TAPE,FRONT FENDER,R (RED,WHI | E,BLACK) BODY COLOR:CK6

68151-06L00-8WN

$20.76

6-1

COVER,FR FENDER SIDE,L (BLACK | BODY COLOR:C4X

53130-06L00-CVX

$66.21

6-2

COVER,FR FENDER SIDE,L (YELLO | ) BODY COLOR:BT1

53130-06L00-ZFX

$66.21

6-3

COVER,FR FENDER SIDE,L (WHITE | BODY COLOR:CK6

53130-06L00-5UX

$66.21

7-1

.TAPE,FRONT FENDER,L | BODY COLOR:C4X

68161-06L00-C1P

$20.76

7-2

.TAPE,FRONT FENDER,L | BODY COLOR:BT1

68161-06L00-CL8

$20.76

7-3

.TAPE,FRONT FENDER,L (RED,WHI | E,BLACK) BODY COLOR:CK6

68161-06L00-8WN

$20.76

8

BRACKET,FRONT SIDE RR

47451-06L00

$13.27

9

BOLT (6X20)

09116-06188

$2.16

10

SCREW (5X13)

09139-05092

$2.25

11

SCREW (6X16)

09139-06221

$2.92

12

NUT (M5)

09148-05052

$3.37

13

SPACER,6X9.8X6 (6X9.8X6)

09180-06086

$2.50
