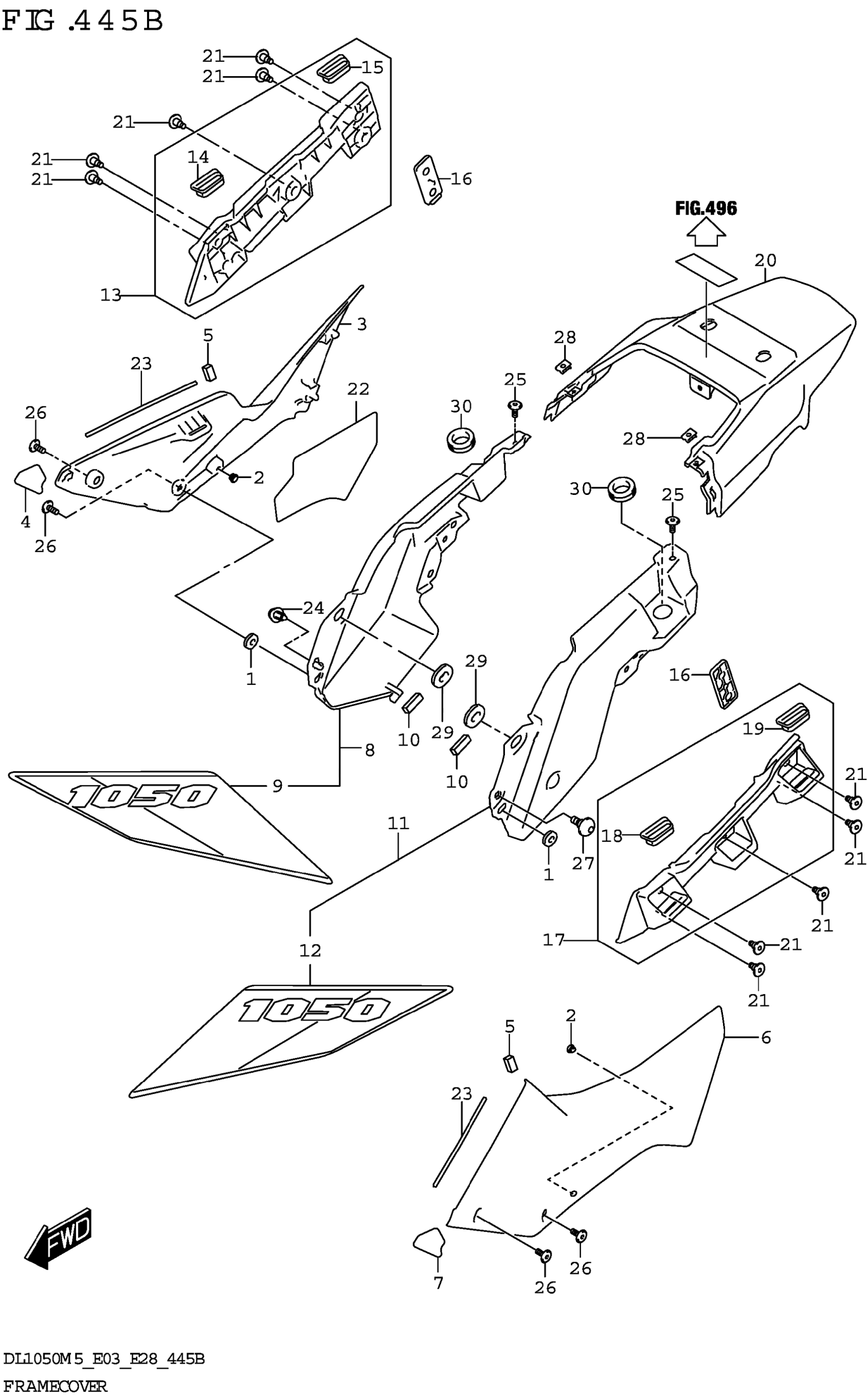

Suzuki DL1050RJM5 (2025) FRAME COVER (DL1050RR) Diagram

#

Description
Price

1

CUSHION,FUEL TANK COVER SIDE

44173-14J00

$4.16

2

CUSHION,SEAT MOUNT

45148-27J00

$17.72

3

COVER,FRAME FRONT,R

47111-06L30

$69.37

4

PROTECTOR,FRAME COVER RH

47121-06L00

$43.98

5

CUSHION,FRAME COVER FR RR

47131-06L00

$5.87

6

COVER,FRAME FRONT,L

47211-06L30

$69.37

7

PROTECTOR,FRAME COVER LH

47221-06L00

$13.90

8-1

COVER,FRAME,R (BLACK) | BODY COLOR:C4X

47310-06L20-44X

$121.38

8-2

COVER,FRAME,R (GRAY) | BODY COLOR:BN8

47310-06L20-QEB

$121.38

8-3

COVER,FRAME,R (GREEN) | BODY COLOR:CWY

47310-06L20-QVP

$121.38

9-1

.TAPE,FRAME COVER,R | BODY COLOR:C4X

68135-06L20-CGP

$22.70

9-2

.TAPE,FRAME COVER,R (BLACK,RE | ,GRAY) BODY COLOR:BN8

68135-06L20-C1D

$22.70

9-3

.TAPE,FRAME COVER,R | BODY COLOR:CWY

68135-06L20-C1R

$22.70

10

CUSHION,FRM COV SIDE NO.5

47312-06L00

$6.22

11-1

COVER,FRAME,L (BLACK) | BODY COLOR:C4X

47350-06L20-44X

$121.38

11-2

COVER,FRAME,L (GRAY) | BODY COLOR:BN8

47350-06L20-QEB

$121.38

11-3

COVER,FRAME,L (GREEN) | BODY COLOR:CWY

47350-06L20-QVP

$121.38

12-1

.TAPE,FRAME COVER,L | BODY COLOR:C4X

68145-06L20-CGP

$22.70

12-2

.TAPE,FRAME COVER,L (BLACK,RE | ,GRAY) BODY COLOR:BN8

68145-06L20-C1D

$22.70

12-3

.TAPE,FRAME COVER,L | BODY COLOR:CWY

68145-06L20-C1R

$22.70

13

BRKT,SIDE CASE UPR RH

47510-06L00

$71.85

14

.BUSH,SIDE CASE BRKT FR RH

47811-06L00

$6.88

15

.BUSH,SIDE CASE BRKT RR RH

47911-06L00

$6.88

16

SPACER,FRAME COVER

47510-28K00

$17.72

17

BRKT,SIDE CASE UPR LH

47610-06L00

$71.85

18

.BUSH,SIDE CASE BRKT FR LH

47812-06L00

$6.88

19

.BUSH,SIDE CASE BRKT RR LH

47912-06L00

$6.88

20-1

COVER,FRAME CTR (BLACK) | BODY COLOR:C4X

47711-06L00-YVB

$190.70

20-2

COVER,FRAME CTR (GRAY) | BODY COLOR:BN8

47711-06L00-QEB

$171.45

20-3

COVER,FRAME CENTER (GREEN) | BODY COLOR:CWY

47711-06L00-QVP

$134.77

21

SCREW

47913-06L00

$1.65

22

HEATSHIELD,FRAME COVER,R

47113-06L10

$22.42

23

CUSHION,FRAME COVER

94417-24F00

$5.78

24

CLIP

94479-35F00

$5.62

25

SCREW (5X13)

09139-05091

$2.03

26

SCREW (5X13)

09139-05091

$2.03

27

SCREW (6X16)

09139-06169

$3.10

28

NUT (M5)

09148-05052

$3.37

29

CUSHION

09320-08029

$2.41

30

CUSHION (20X32X9)

09320-20011

$2.69
