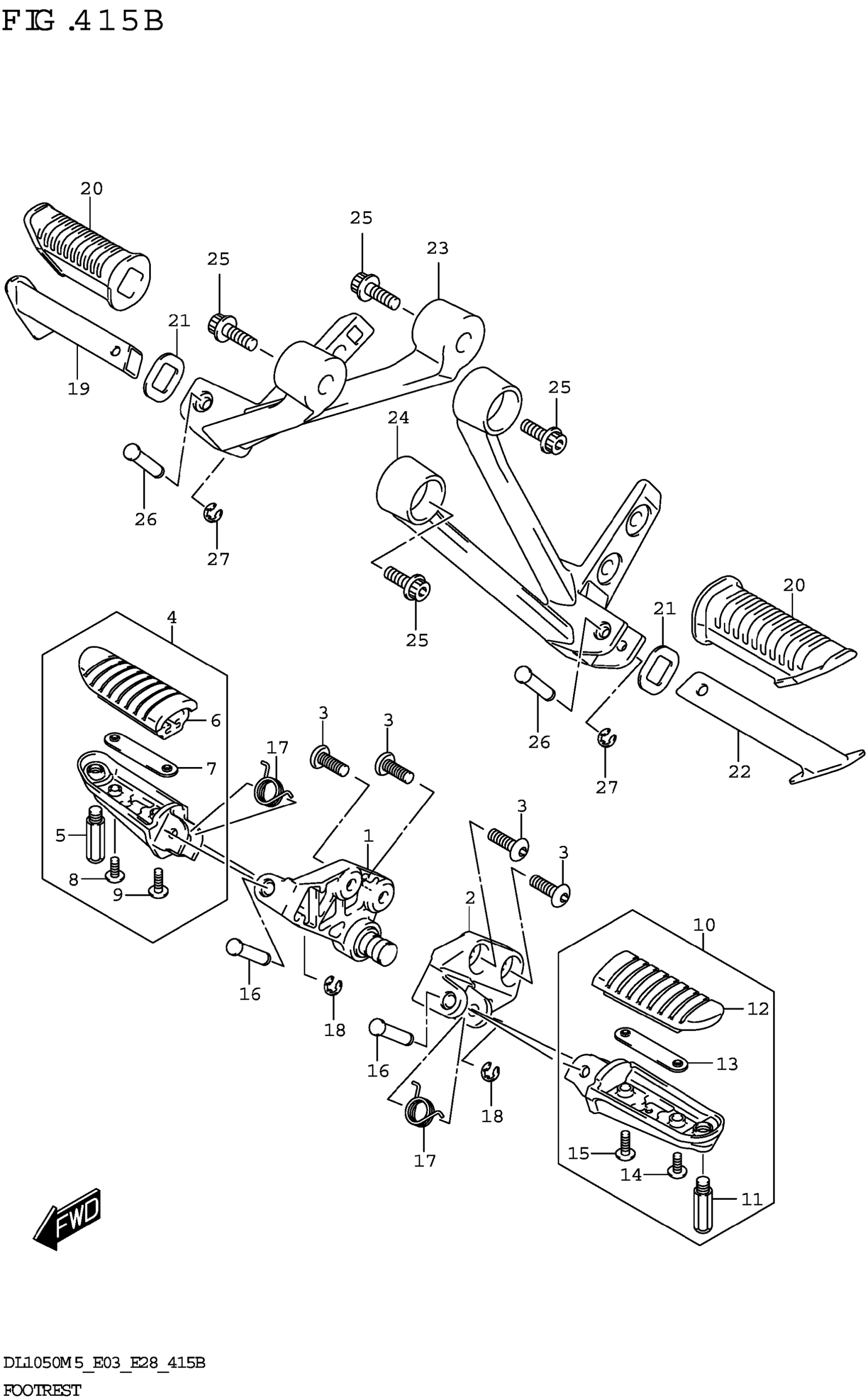

Suzuki DL1050RJM5 (2025) FOOTREST (DL1050RR) Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH (BLACK

43510-06G10-YAP

$89.14

2

BRACKET,FR FOOTREST,L (BLACK)

43521-06G11-YAP

$44.94

3

BOLT (8X23)

09106-08200

$2.34

4

FOOTREST ASSY,FRONT RH

43501-31J00

$132.10

5

.SENSOR,FOOTREST

43576-31J00

$11.73

6

.RUBBER,FOOTREST

43551-06G00

$13.21

7

.PLATE,FR FOOTREST RUBBER

43552-06G00

$14.47

8

.SCREW

02142-0516A

$1.43

9

SCREW

02142-0520A

$1.41

10

FOOTREST ASSY,FRONT LH

43502-31J00

$117.25

11

.SENSOR,FOOTREST

43576-31J00

$11.73

12

.RUBBER,FOOTREST

43551-06G00

$13.21

13

.PLATE,FR FOOTREST RUBBER

43552-06G00

$14.47

14

.SCREW

02142-0516A

$1.43

15

SCREW

02142-0520A

$1.41

16

PIN

09208-08019

$2.77

17

SPRING

09448-18022

$3.42

18

E-RING

08332-1106A

$1.43

19

BAR,PILLION FOOTREST,R

43610-34A70

$32.62

20

RUBBER,PILLION FOOTREST

43612-33G40

$6.75

21

WASHER,FOOTREST RUBBER

43631-34A01

$4.26

22

BAR,PILLION FOOTREST,L

43710-34A70

$32.62

23

BRKT,PILLION FOOTREST RH (BLA | K)

43811-31J00-YAP

$157.05

24

BRKT,PILLION FOOTREST LH (BLA | K)

43821-31J00-YAP

$157.05

25

BOLT (8X30)

09106-08131

$4.53

26

PIN,PILLION FOOTREST

09208-06010

$2.75

27

E-RING

08332-1104B

$1.80
