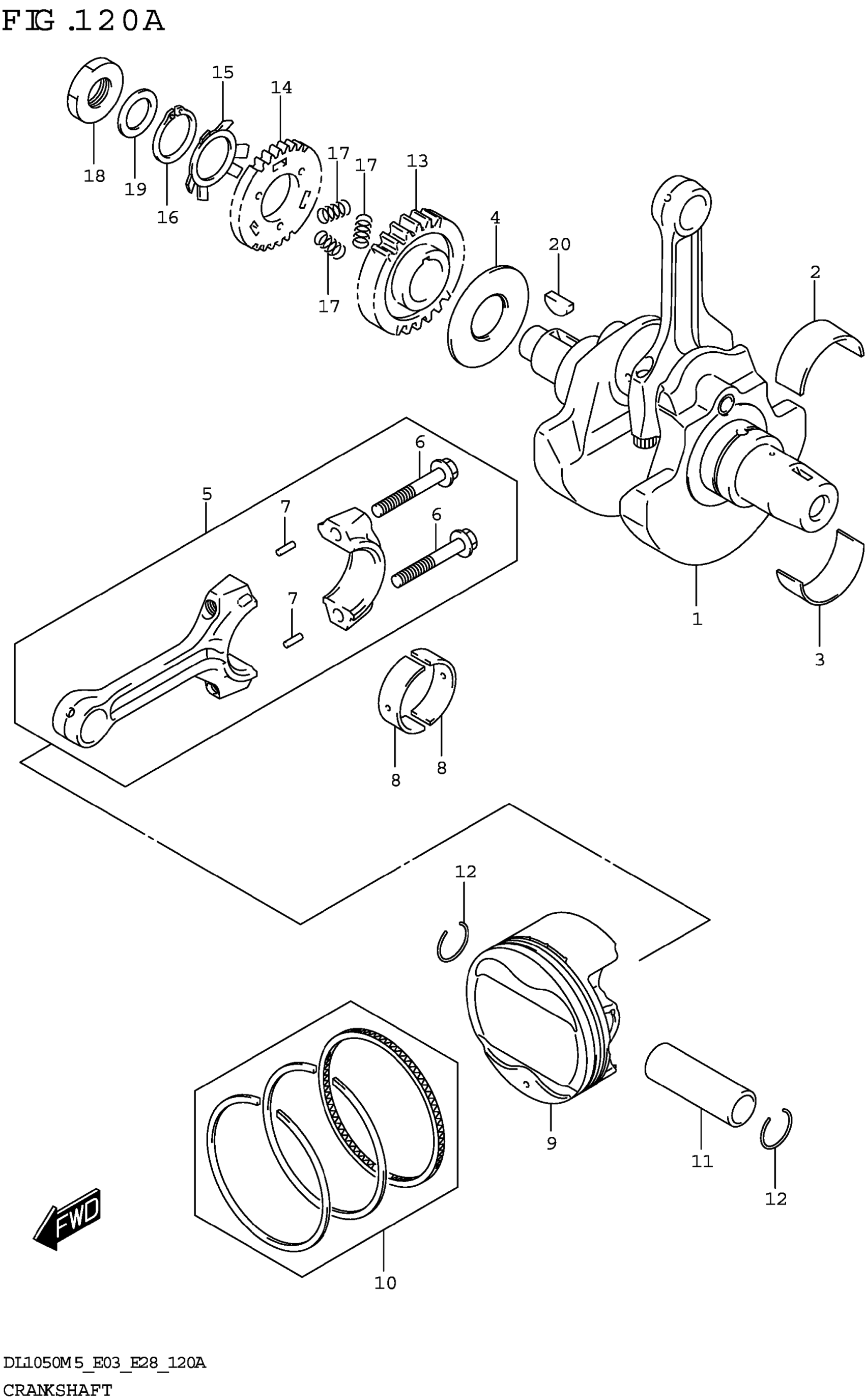

Suzuki DL1050RJM5 (2025) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

12220-31J00

$1,404.12

2-1

BEARING,CRANKSHAFT

12229-31J00-0A0

$25.57

2-2

BEARING,CRANKSHAFT

12229-31J00-0B0

Unavailable

2-3

BEARING,CRANKSHAFT

12229-31J00-0C0

$26.05

3-1

BEARING,CRANKSHAFT

12229-06L00-0A0

$20.35

3-2

BEARING,CRANKSHAFT

12229-06L00-0B0

Unavailable

3-3

BEARING,CRANKSHAFT

12229-06L00-0C0

$20.35

4

WASHER,CRANK THRUST

12652-38B00

Unavailable

5

CONNECTING ROD ASSY

12160-06G10

Unavailable

6

.BOLT,CONNROD

12163-06G00

$20.85

7

.PIN,CONNROD

12165-27A50

$1.54

8-1

BEARING,CRANK PIN

12164-31J00-0A0

Unavailable

8-2

BEARING,CRANK PIN

12164-31J00-0B0

$22.78

8-3

BEARING,CRANK PIN

12164-31J00-0C0

Unavailable

8-4

BEARING,CRANK PIN

12164-31J00-0D0

Unavailable

9

PISTON

12111-31J10-0F0

$192.38

10

RING SET,PISTON

12140-31J00

$112.18

11

PIN,PISTON

12151-02F10

$29.15

12

CIRCLIP

09381-22002

$1.65

13

GEAR,PRI DRIVE (NT:31)

21111-02F11

Unavailable

14

GEAR,PRI DRIVE SCISSORS (NT:3 | )

21112-02F00

Unavailable

15

WASHER,PRI DRIVE

21114-02F00

$10.65

16

CIRCLIP

08331-31409

$3.58

17

SPRING

09440-07001

$2.38

18

NUT

09140-22012

$13.20

19

WASHER (22.2X35X2(3))

09164-22007

$7.35

20

KEY

09420-06001

$9.27
