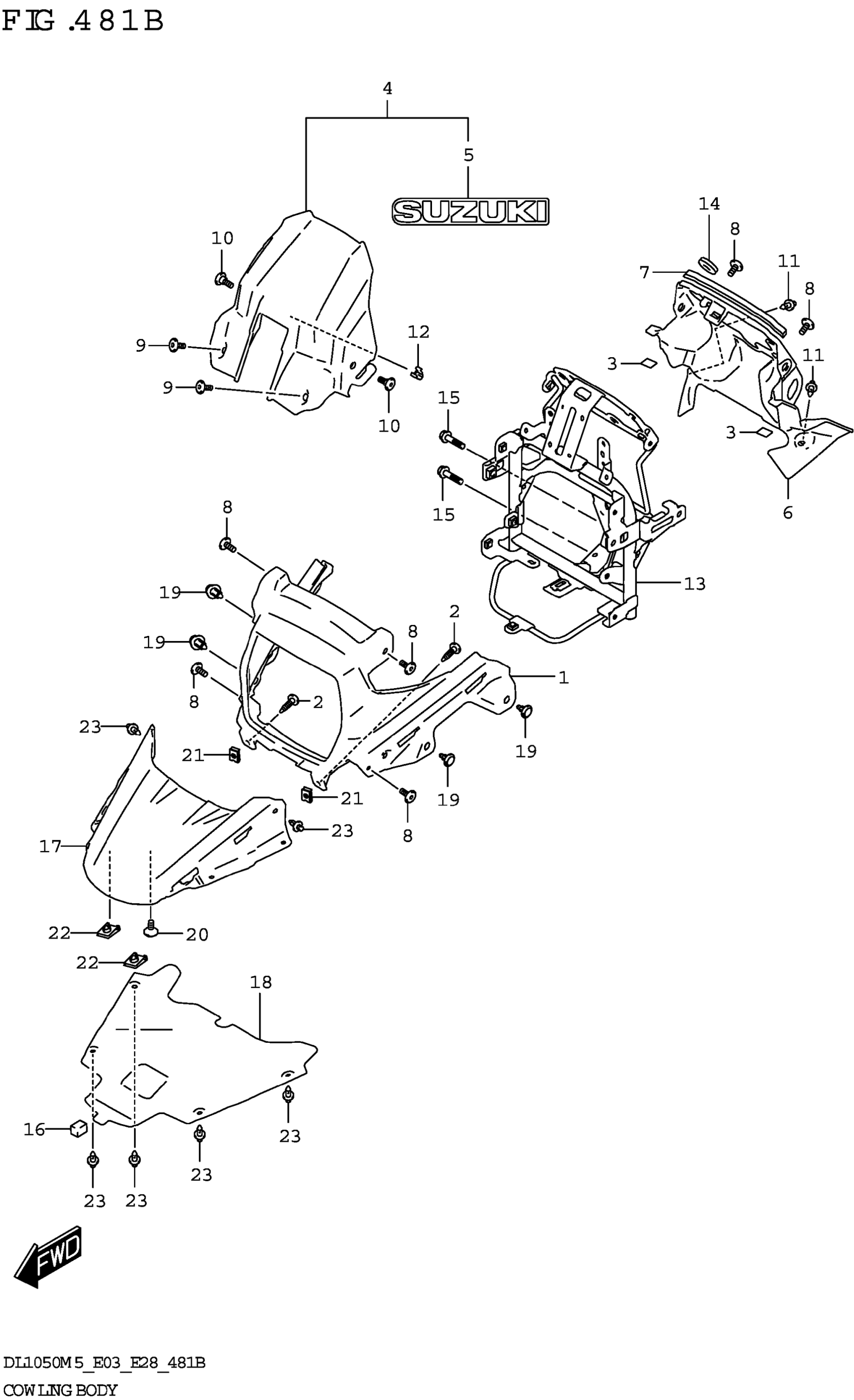

Suzuki DL1050RJM5 (2025) COWLING BODY (DL1050RJ) Diagram

#

Description
Price

1

COWLING,BODY

94411-06L00

$149.45

2

SCREW

03541-0516A

$1.49

3

CUSHION (10X10X1)

63115-37H00

$3.64

4

PANEL,METER FRONT (GRAY,BLACK

94630-06L00-B5J

$73.33

5

.EMBLEM,"SUZUKI" (GRAY,BLACK)

68721-13E00-B5J

$10.80

6

PANEL,METER REAR

94632-06L10

$25.37

7

CUSHION,METER PANEL REAR

94633-06L00

$3.27

8

SCREW (5X13)

09139-05091

$2.03

9

SCREW (5X13)

09139-05091

$2.03

10

SCREW,METER PANEL

09139-05109

$1.80

11

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78

12

CLIP (10.5X14.3)

09409-08326

$2.48

13

BRACE,COWLING

94510-06L10

$223.88

14

CUSHION (8x26x7)

09320-08018

$3.04

15

BOLT (8X20)

01550-0820A

$2.23

16

CUSHION,RR LAMP (17X17X12)

33652-05G20

$2.53

17

COWLING,BODY CTR (BLACK)

94413-06L00-YKV

$107.05

18

COWLING,BODY CTR LWR

94414-06L00

$23.55

19

CLIP

94479-35F00

$5.62

20

SCREW (5X13)

09139-05091

$2.03

21

NUT (M5)

09148-05038

$1.97

22

NUT (M5)

09148-05052

$3.37

23

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.78
