Description

Price

1

CYLINDER ASSY,CLUTCH MASTER

59800-32F40

$281.80

2

.PISTON & CUP SET

59800-31810

$86.32

3

..BOOT

59866-23H00

$7.97

4

.ROD,PUSH

59871-23H10

Unavailable

5

.BUSH

59892-08A00

$5.05

6

.DIAPHRAGM

59667-49460

$9.78

7

.PLATE,DIAPHRAGM

59668-41C00

$9.32

8

.CAP

59669-10G20

$57.33

9

.SCREW

69689-49300

$1.91

10

.PROTECTOR

59664-32F00

$11.68

11

.HOLDER

59671-32F00

$19.52

12

.BOLT (6X22)

59675-02FA0

$3.82

13

UNION (10X1.25X22)

09360-10053

$8.92

14

UNION This part replaces 09360-10042.

09360-10062

$6.43

15

WASHER (10X15X1.5)

09161-10009

$1.84

16

HOSE ASSY,CLUTCH

59900-06L30

$73.07

17

CLAMP,CLUTCH HOSE NO.1

59915-06L00

$8.08

18

CLAMP,CLUTCH HOSE NO.2

59921-06L00

$11.58

19

BOLT

07120-0612A

$2.50

20

CLAMP

09403-07331

$3.50

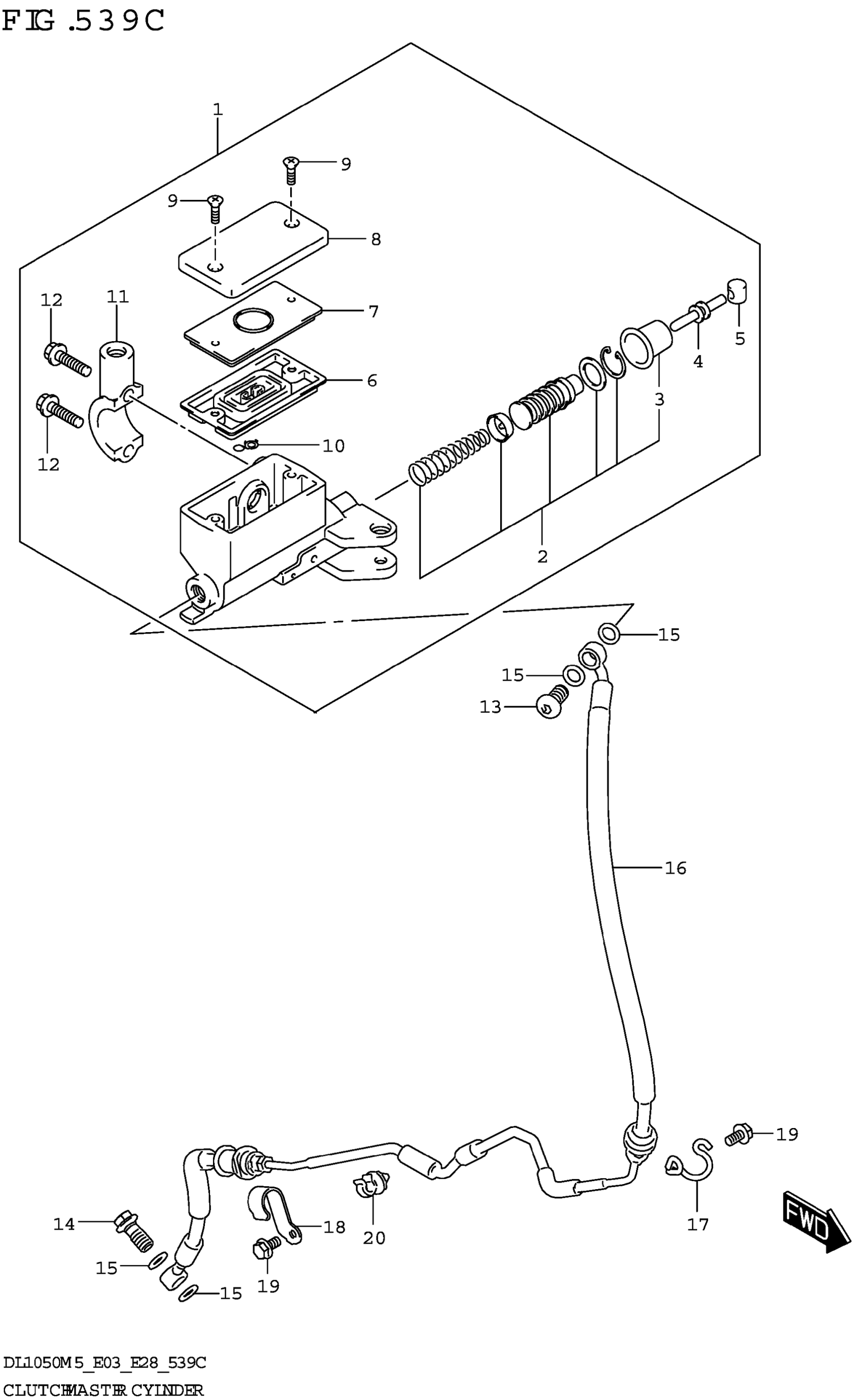

Suzuki DL1050RJM5 (2025) CLUTCH MASTER CYLINDER (DL1050RJ) Diagram
