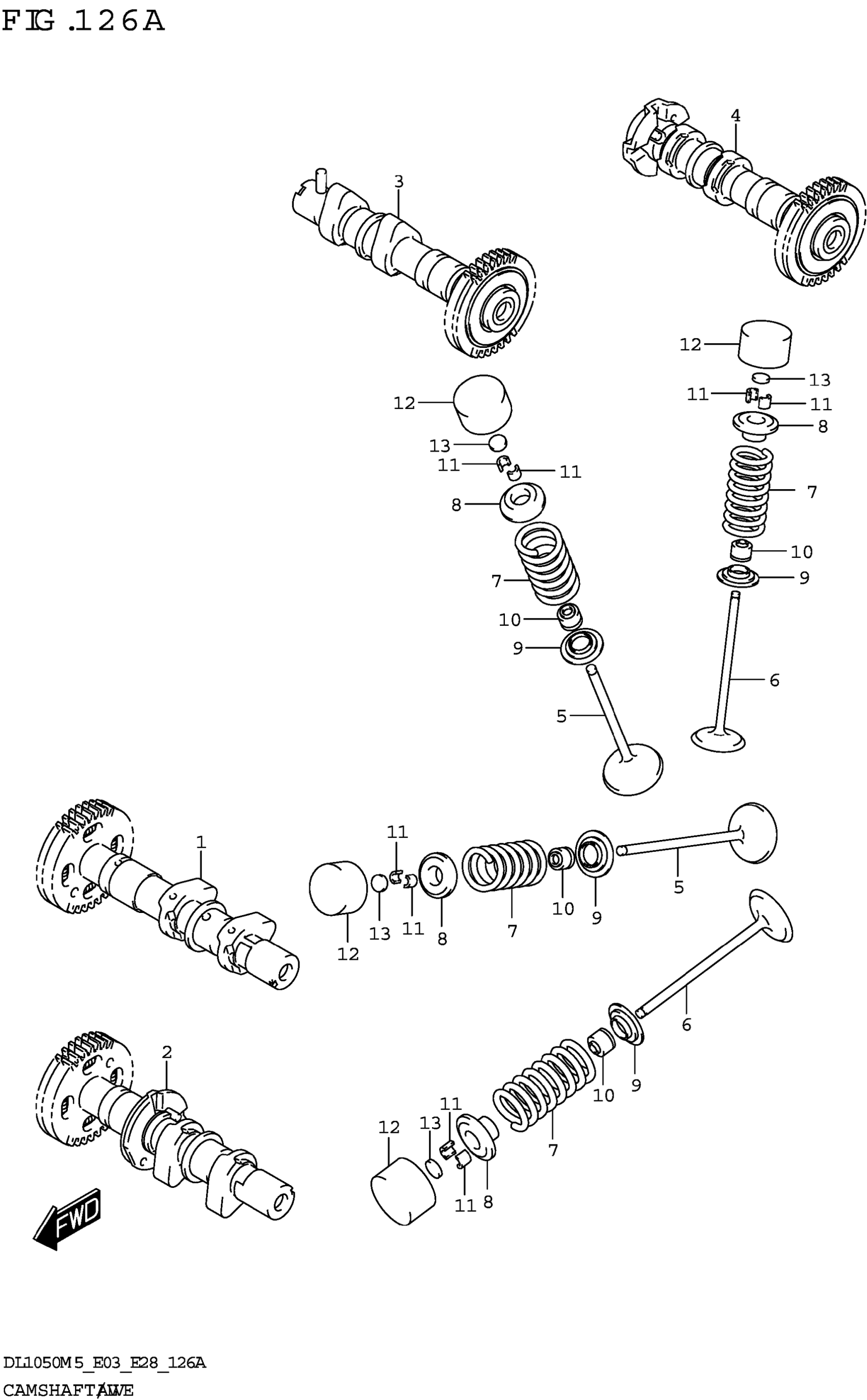

Suzuki DL1050RJM5 (2025) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT ASSY,INTAKE FRONT

12701-06L00

$411.43

2

CAMSHAFT ASSY,EXHAUST FRONT

12702-06L00

$568.33

3

CAMSHAFT ASSY,INTAKE REAR

12703-06L00

$418.28

4

CAMSHAFT ASSY,EXHAUST REAR

12704-06L00

$568.33

5

VALVE,INTAKE

12911-16G00

$48.38

6

VALVE,EXHAUST

12912-06L00

$32.43

7

SPRING,VALVE

12921-06L00

$7.83

8

RETAINER,VALVE SPRING

12931-06L00

$5.38

9

SEAT,VALVE SPRING

12933-06L00

$3.48

10

OIL SEAL (5.5X11X8.2) This part replaces 09289-05003.

09289-05015

$6.70

11

COTTER, VALVE

12932-24400

$1.94

12

TAPPET

12891-02F10

$52.61

13-1

SHIM,TAPPET (T:2.30)

12892-41C00-230

$11.38

13-2

SHIM,TAPPET (T:2.35)

12892-41C00-235

$11.83

13-3

SHIM,TAPPET (T:2.40)

12892-41C00-240

$11.83

13-4

SHIM,TAPPET (T:2.45)

12892-41C00-245

$11.83

13-5

SHIM,TAPPET (T:2.50)

12892-41C00-250

$11.83

13-6

SHIM,TAPPET (T:2.55)

12892-41C00-255

$11.83

13-7

SHIM,TAPPET (T:2.60)

12892-41C00-260

$11.38

13-8

SHIM,TAPPET (T:2.65)

12892-41C00-265

$11.38

13-9

SHIM,TAPPET (T:2.70)

12892-41C00-270

$11.38

13-10

SHIM,TAPPET (T:2.75)

12892-41C00-275

$9.69

13-11

SHIM,TAPPET (T:2.80)

12892-41C00-280

$11.38

13-12

SHIM,TAPPET (T:2.85)

12892-41C00-285

$11.83

13-13

SHIM,TAPPET (T:2.90)

12892-41C00-290

$11.38

13-14

SHIM,TAPPET (T:2.95)

12892-41C00-295

$11.83

13-15

SHIM,TAPPET (T:3.00)

12892-41C00-300

$11.60

13-16

SHIM,TAPPET (T:3.05)

12892-41C00-305

$11.83

13-17

SHIM,TAPPET (T:3.10)

12892-41C00-310

$11.38

13-18

SHIM,TAPPET (T:3.15)

12892-41C00-315

Unavailable

13-19

SHIM,TAPPET (T:3.20)

12892-41C00-320

$11.60

13-20

SHIM,TAPPET (T:3.25)

12892-41C00-325

$11.83

13-21

SHIM,TAPPET (T:3.30)

12892-41C00-330

$11.83

13-22

SHIM,TAPPET (T:3.35)

12892-41C00-335

$11.83

13-23

SHIM,TAPPET (T:3.40)

12892-41C00-340

$11.83

13-24

SHIM,TAPPET (T:3.45)

12892-41C00-345

Unavailable

13-25

SHIM,TAPPET (T:3.50)

12892-41C00-350

$11.83

14

SHIM SET,TAPPET (5PCS.EACH) | OPT,NOT ILLUSTRATED

12800-41810

$1,138.37

15

.CASE,TAPPET SHIM | OPT,NOT ILLUSTRATED

99000-69471

Unavailable
