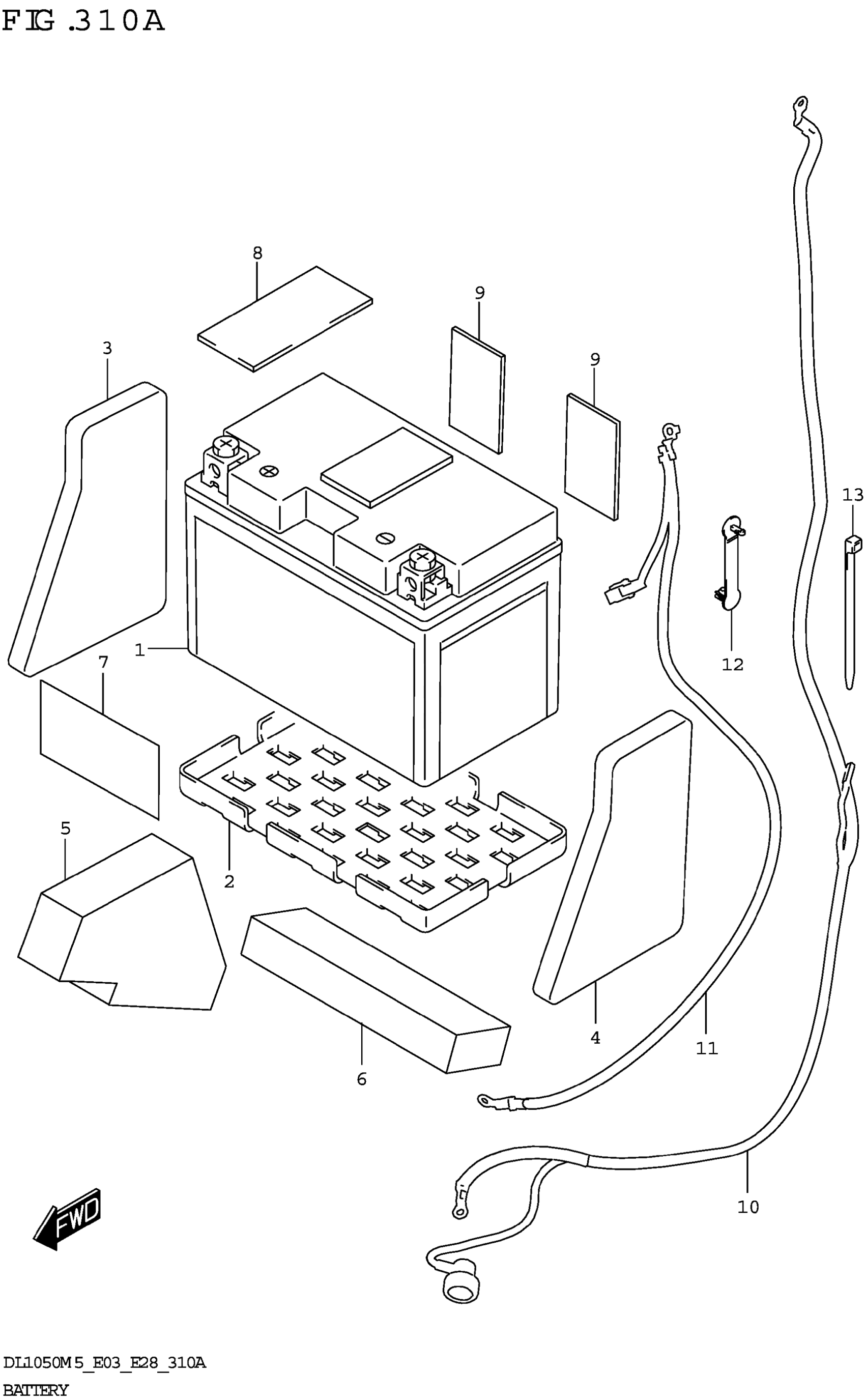

Suzuki DL1050RJM5 (2025) BATTERY (DL1050RR) Diagram

#

Description
Price

1

BATTERY ASSY (FTZ14S,12V/11.2 | H)

33620-31J01

$119.69

2

PROTECTOR,BATTERY

33652-16G00

$11.95

3

CUSHION,BATTERY RH

33652-06L10

$2.67

4

CUSHION,BATTERY LH

33652-06L00

$2.67

5

CUSHION,BATTERY

33652-06L20

$11.98

6

CUSHION,BATTERY

33652-06L30

$5.60

7

PROTECTOR (40X85X3)

33652-28C00

Unavailable

8

CUSHION (30X50X3)

33652-36001

$1.49

9

CUSHION (50X42X2.0)

51553-15D40

$7.18

10

WIRE,STARTER MOTOR LEAD

33810-06L00

$59.67

11

WIRE,BATTERY MINUS LEAD

33860-06L10

$29.68

12

CLAMP,LEAD WIRE

36651-06L00

$4.33

13

CLAMP (L:145)

09407-14407

$3.57
