2024 Suzuki DL1050RJM4 Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 2024 Suzuki DL1050RJM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

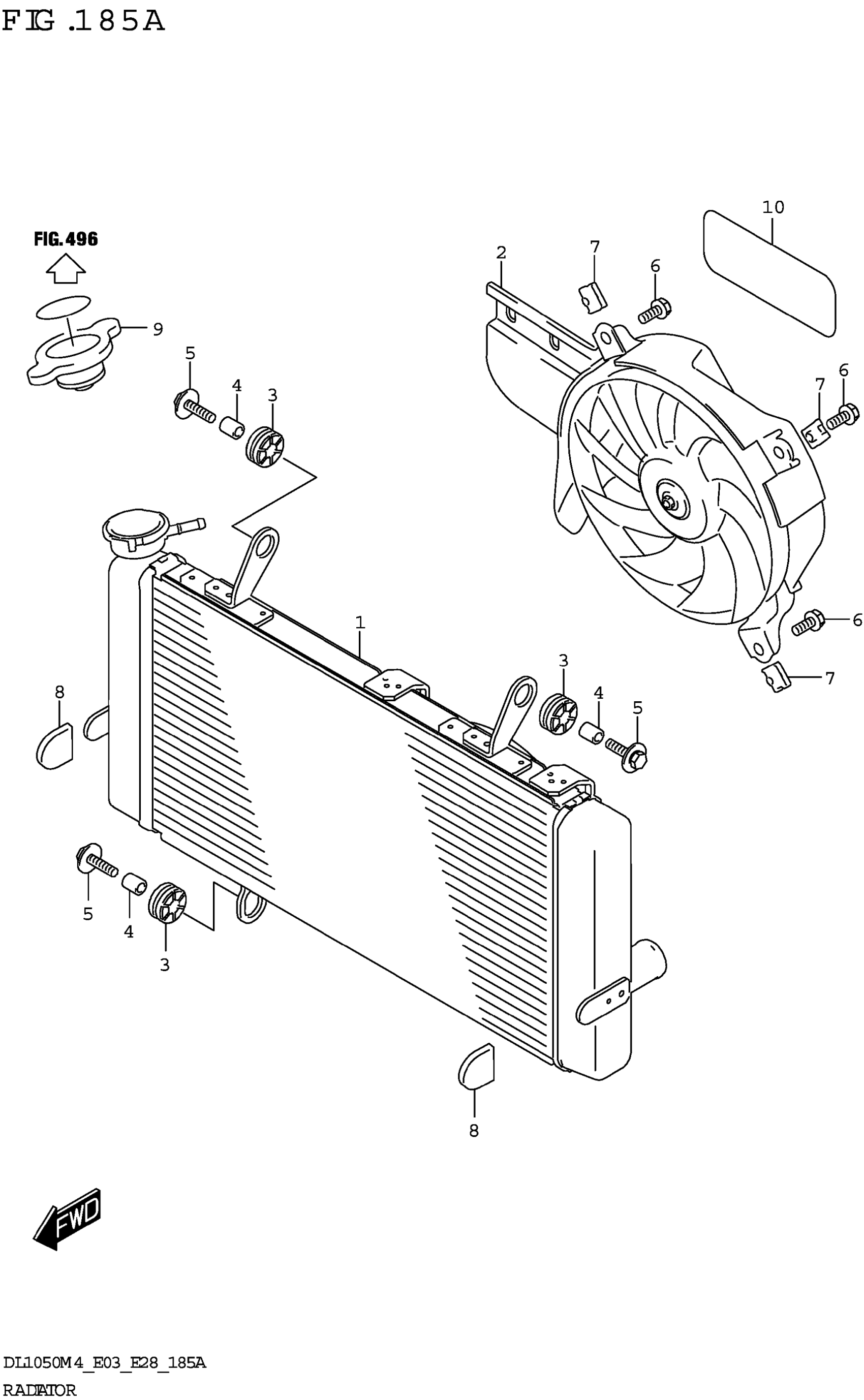

2024 Suzuki DL1050RJM4 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RADIATOR,WATER

17710-06L00

1
Out of stock

2

FAN ASSY,RADIATOR

17800-06L10

1
Out of stock

3

CUSHION

09320-10051

3
Out of stock

4

SPACER (6.5X10X12)

09180-06290

3
Out of stock

5

BOLT (6X25)

09118-06097

2
Out of stock

6

BOLT,RADIATOR FAN

17711-07L00

3
Out of stock

7

NUT,RADIATOR FAN

17802-14F00

3
Out of stock

8

CUSHION

09329-18001

2
Out of stock

9

CAP,RADIATOR (1.1)

17730-08D10

1
Out of stock

10

TAPE,RR FENDER (30X75X0.2)

63131-10F00

1
Out of stock
