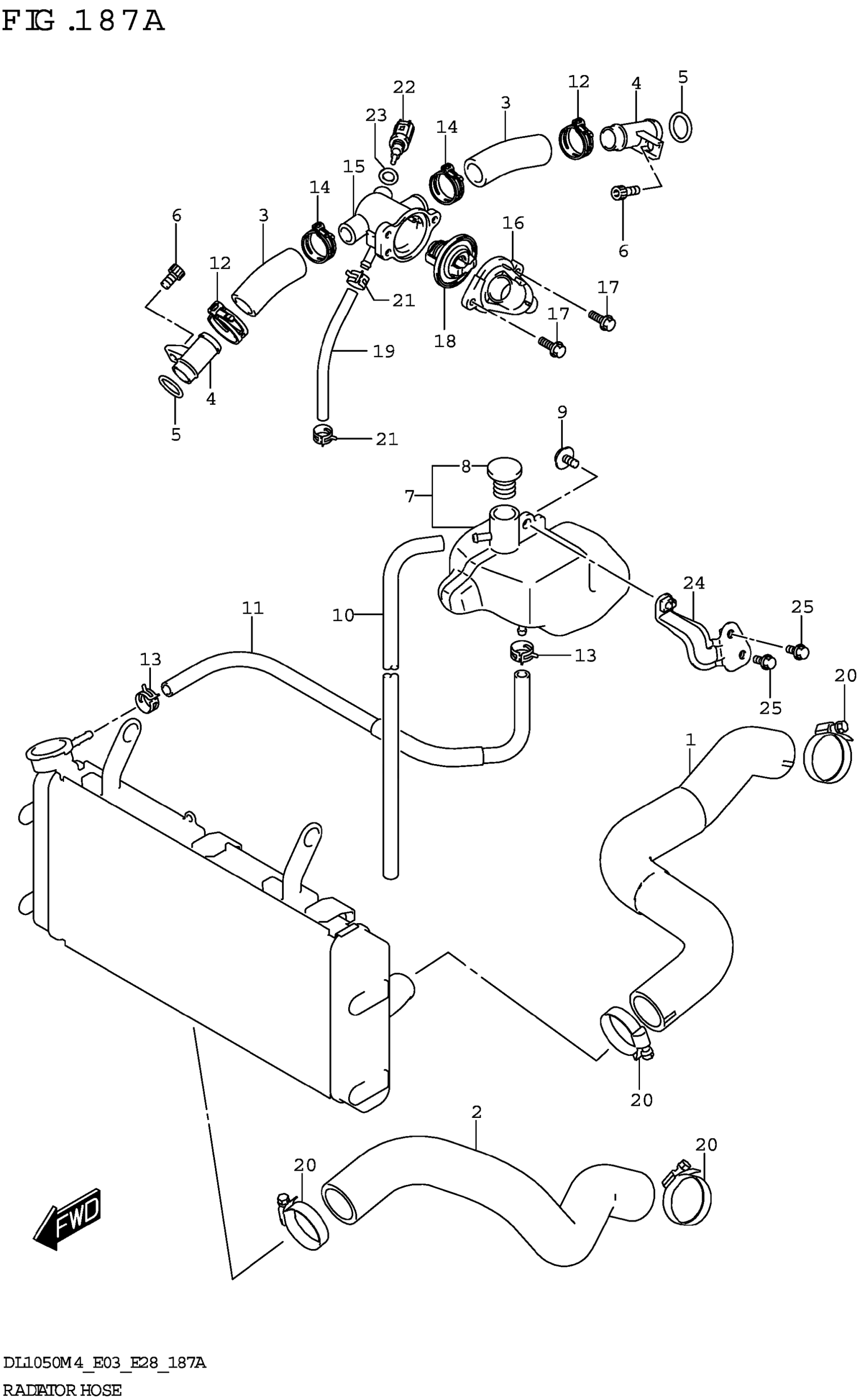

Suzuki DL1050RJM4 (2024) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE,RADIATOR INLET

17851-06L00

$36.05

2

HOSE,RADIATOR OUTLET

17852-06L00

$29.77

3

HOSE,CONNECTOR INLET

17853-02F10

$12.62

4

UNION,CONNECTOR HOSE

17890-06G20

$13.59

5

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.26

6

BOLT

07130-0612A

$2.50

7

TANK ASSY,RESERVOIR

17910-31J00

Unavailable

8

.CAP,WATER RESERVOIR TANK

17931-31J00

$8.13

9

BOLT (6X12)

09111-06085

$4.16

10

HOSE,RSVR TANK OVFL

17982-06L00

$7.05

11

HOSE,RSVR TANK INLET

17981-06L00

$20.95

12

CLAMP

09401-24002

$4.55

13

CLIP (ID:8.6)

09401-08411

$1.77

14

CLAMP

09401-25001

$4.15

15

CONNECTOR,THERMOSTAT INLET

17662-02F11

$72.57

16

CAP,THERMOSTAT CONNECTOR

17663-42E00

$61.78

17

BOLT

01550-0616A

$1.97

18

THERMOSTAT,WATER

17670-06G51

$23.59

19

HOSE,WATER BYPASS

17856-16G10

$25.08

20

CLAMP

09401-29001

$2.80

21

CLIP

09401-12414

$2.98

22

SENSOR,TEMP

13650-49X00

$82.56

23

GASKET (12X17X1)

09168-12017

$1.97

24

BRACKET,RSVR TANK

17920-31J00

Unavailable

25

BOLT

01550-0610A

$1.97
