2024 Suzuki DL1050RJM4 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2024 Suzuki DL1050RJM4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

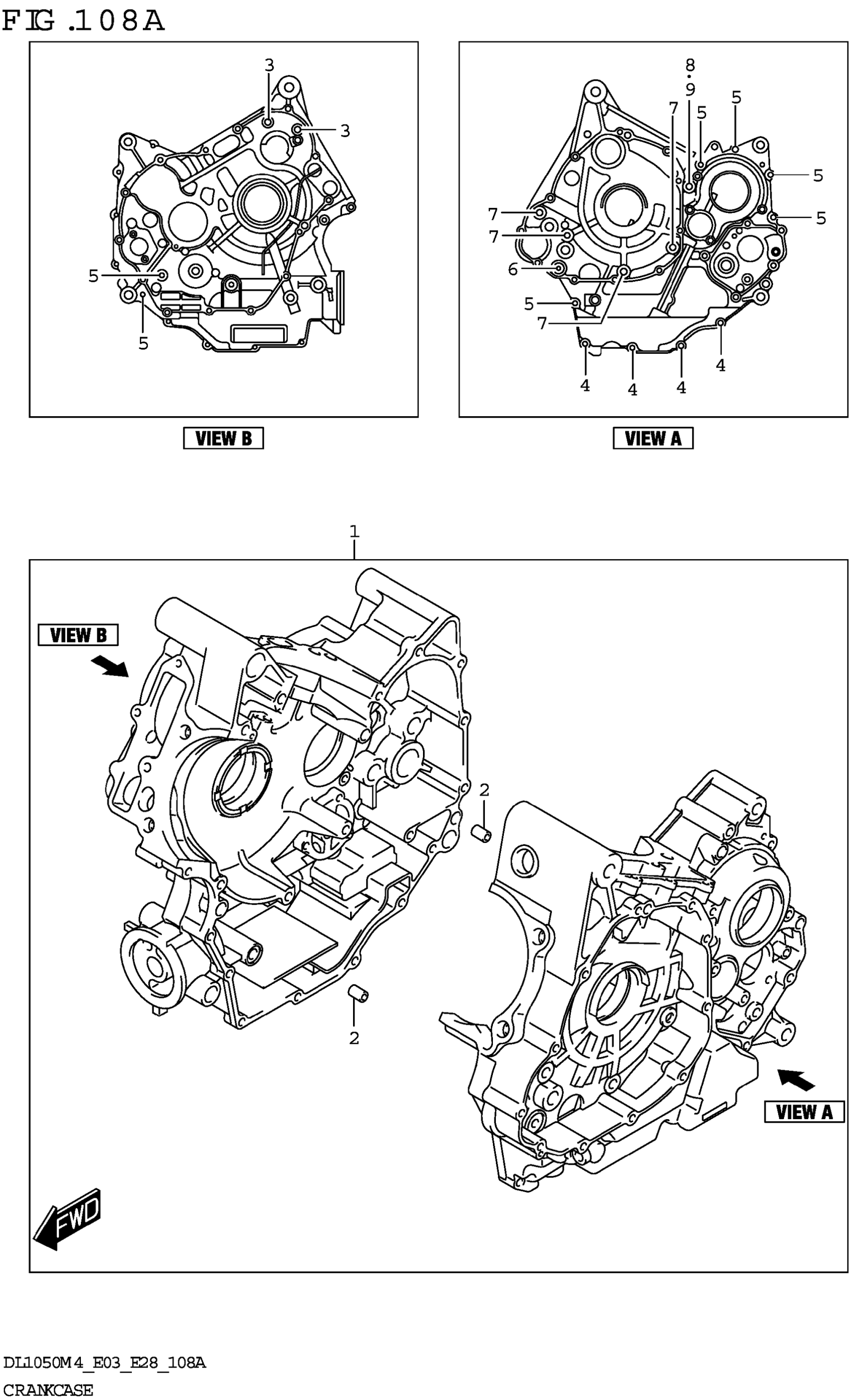

2024 Suzuki DL1050RJM4 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET

11306-06850

1
Out of stock

2

.PIN,CRANKCASE

11319-33E00

2
Out of stock

3

.BOLT (8X110)

09106-08142

2
Out of stock

4

BOLT

01547-0630A

4
Out of stock

5

.BOLT

01547-0670A

7
Out of stock

6

.BOLT

01547-0685A

—
Out of stock

7

.BOLT

07120-0890A

—
Out of stock

8

.BOLT (8X125)

09106-08136

1
Out of stock

9

WASHER

08322-0108A

1
Out of stock
