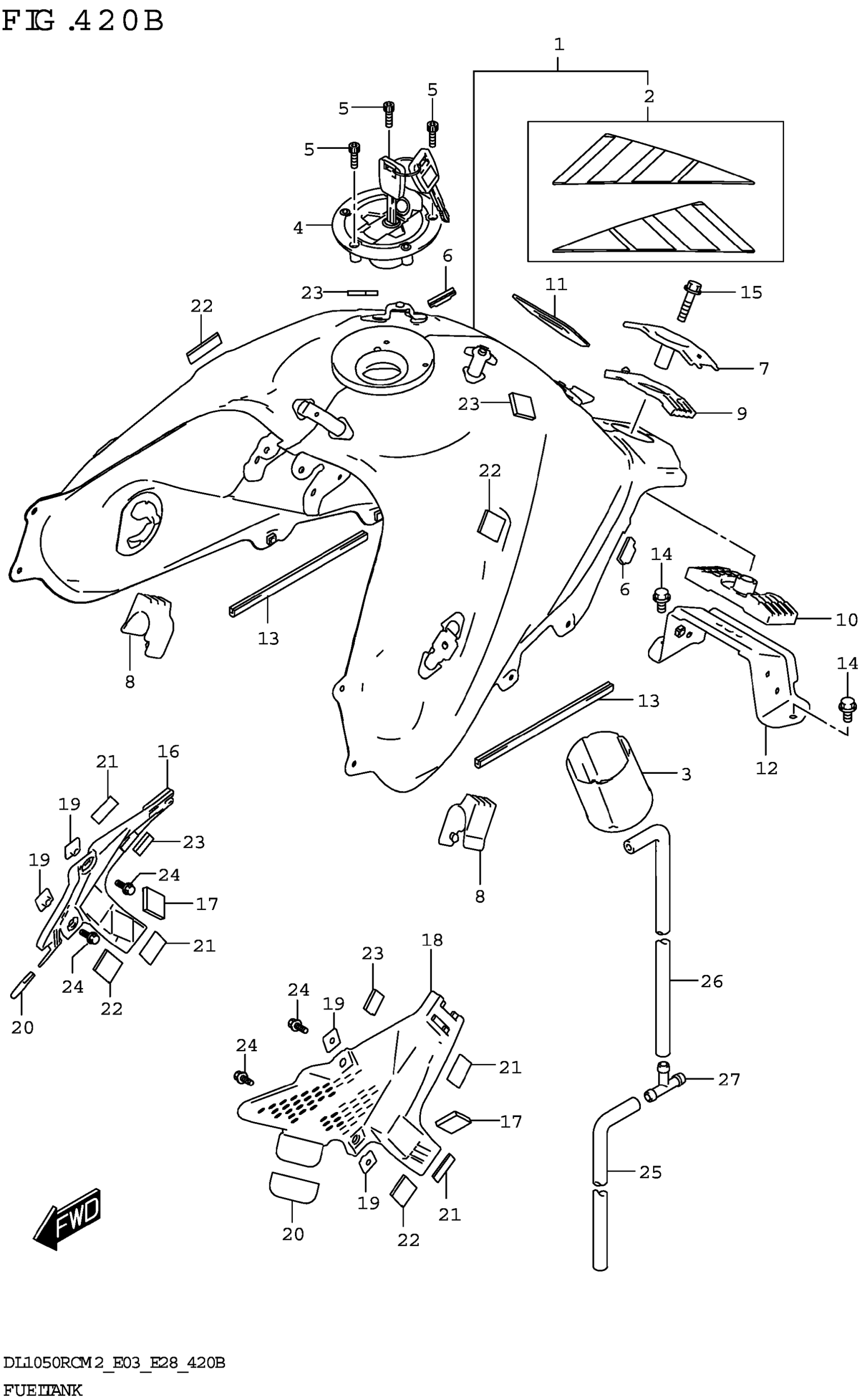

Suzuki DL1050RCM2 (2022) FUEL TANK (DL1050RC) Diagram

#

Description
Price

1-1

TANK ASSY,FUEL (BLACK) | FOR YVB BODY COLOR:YVB

44100-06L10-YVB

$1,308.77

1-2

TANK ASSY,FUEL (WHITE) | FOR B1F BODY COLOR:B1F

44100-06L10-YUH

$1,211.83

1-3

TANK ASSY,FUEL (BLACK) | FOR BD7 BODY COLOR:BD7

44100-06L10-44X

$1,088.77

1-4

TANK ASSY,FUEL (BLACK) | FOR BT1 BODY COLOR:BT1

44100-06L10-ACX

$1,089.37

2-1

.TAPE SET,FUEL TANK (GRAY,BLA | K) FOR YVB BODY COLOR:YVB

68110-06L00-AA3

$57.13

2-2

.TAPE SET,FUEL TANK (BLACK,WH | TE) FOR B1F BODY COLOR:B1F

68110-06L00-B1G

$57.13

2-3

.TAPE SET,FUEL TANK (BLUE,BLA | K) FOR BD7 BODY COLOR:BD7

68110-06L00-B8Y

$51.35

2-4

.TAPE SET,FUEL TANK (GRAY,BLA | K) FOR BT1 BODY COLOR:BT1

68110-06L00-BD7

$51.35

3

VESSEL,FUEL TANK INNER

44121-06L00

$17.40

4

CAP SET,FUEL TANK FILLER

44200-17840

$185.23

5

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

6

CUSHION,FUEL TANK COVER

44276-21H01

$5.46

7

BRACKET,FUEL TANK RR UP

44530-06G00

Unavailable

8

CUSHION,FUEL TANK SIDE

44541-31J00

Unavailable

9

CUSHION,FUEL TANK RR UPR

44542-06G00

$18.93

10

CUSHION,FUEL TANK RR LWR

44545-06G00

$20.58

11

CUSHION,FUEL TANK RR

44545-06L00

$43.25

12

BRACKET,FUEL TANK REAR

44550-31J00

Unavailable

13

MOLDING,FUEL TANK (L:110)

44552-24B00

$13.26

14

BOLT (8X16)

01550-0816A

$2.31

15

BOLT (8X35)

01550-0835A

$2.80

16

BRKT,FUEL TANK COVER SIDE RH

44179-06L00

$33.43

17

CUSHION,TANK SIDE COVER

44183-23H00

$14.63

18

BRKT,FUEL TANK COVER SIDE LH

44189-06L00

$33.43

19

NUT (M6)

44523-47H00

$13.30

20

CUSHION,FUEL TANK COVER BRKT

44542-31J00

$5.43

21

CUSHION,TANK COVER BRKT NO.1

44556-33H10

$7.52

22

FASTENER (25X33X2.6)

44572-02F01

$10.13

23

CUSHION (15X23X4)

47163-10FA0

$5.13

24

BOLT (6X12)

09103-06285

$1.97

25

HOSE,FUEL TANK DRAIN NO.2

44423-31J12

$18.37

26

HOSE,FUEL TANK DRAIN NO.1

44423-31J21

$16.88

27

3 WAY

09367-08005

$5.25
