2022 Suzuki DL1050RCM2 Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2022 Suzuki DL1050RCM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

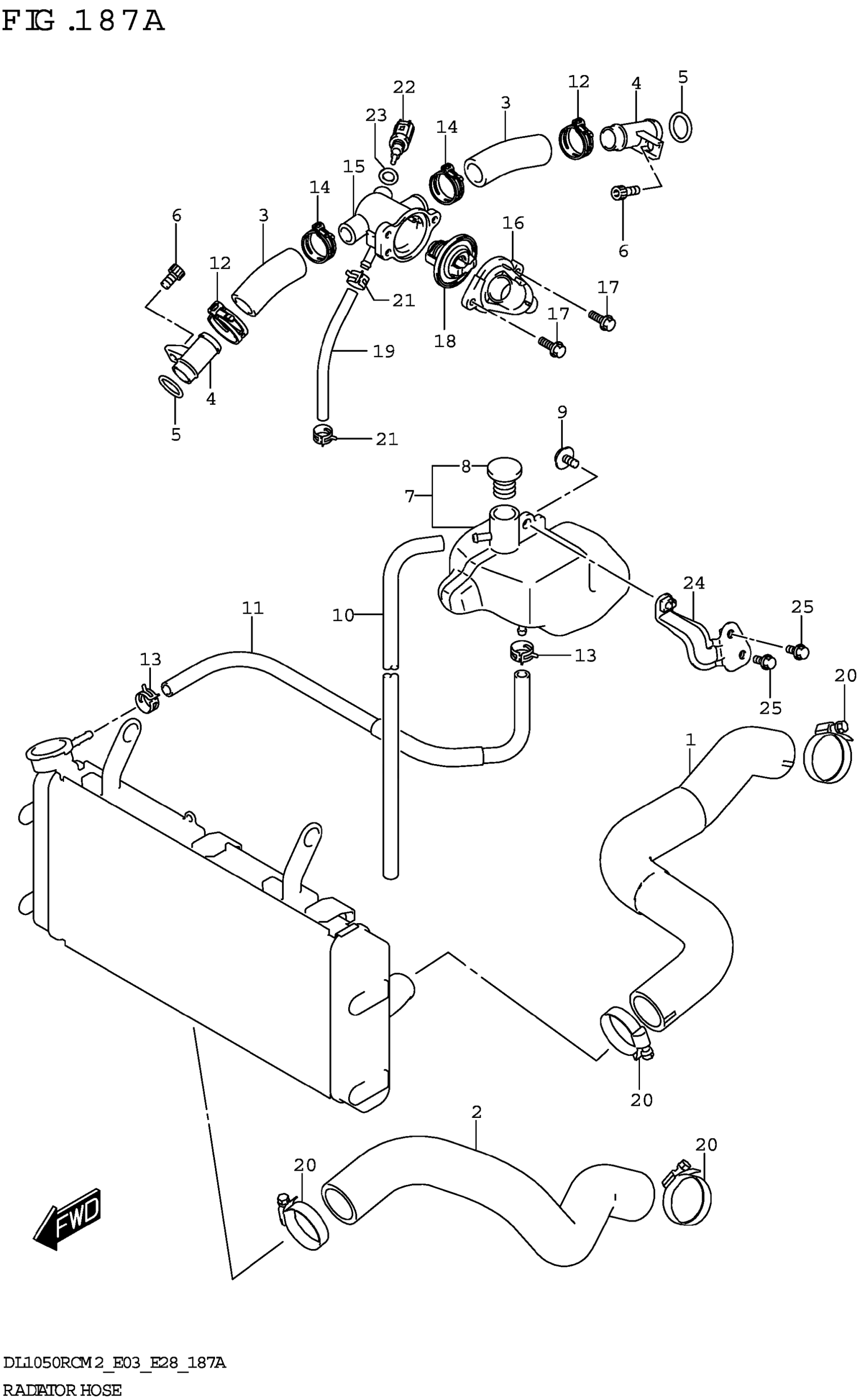

2022 Suzuki DL1050RCM2 Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE,RADIATOR INLET

17851-06L00

1
Out of stock

2

HOSE,RADIATOR OUTLET

17852-06L00

1
Out of stock

3

HOSE,CONNECTOR INLET

17853-02F10

2
Out of stock

4

UNION,CONNECTOR HOSE

17890-06G20

2
Out of stock

5

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

2
Out of stock

6

BOLT

07130-0612A

2
Out of stock

7

TANK ASSY,RESERVOIR

17910-31J00

1
Out of stock

8

.CAP,WATER RESERVOIR TANK

17931-31J00

1
Out of stock

9

BOLT (6X12)

09111-06085

1
Out of stock

10

HOSE,RSVR TANK OVFL

17982-31J00

1
Out of stock

11

HOSE SET, RESERVOIR TANK INLE

17900-27810

1
Out of stock

12

CLAMP

09401-24002

2
Out of stock

13

CLIP (ID:8.6)

09401-08411

2
Out of stock

14

CLAMP

09401-25001

2
Out of stock

15

CONNECTOR,THERMOSTAT INLET

17662-02F11

1
Out of stock

16

CAP,THERMOSTAT CONNECTOR

17663-42E00

1
Out of stock

17

BOLT

01550-0616A

2
Out of stock

18

THERMOSTAT,WATER

17670-06G51

1
Out of stock

19

HOSE,WATER BYPASS

17856-16G10

1
Out of stock

20

CLAMP

09401-29001

4
Out of stock

21

CLIP

09401-12414

2
Out of stock

22

SENSOR,TEMP

13650-49X00

1
Out of stock

23

GASKET (12X17X1)

09168-12017

1
Out of stock

24

BRACKET,RSVR TANK

17920-31J00

1
Out of stock

25

BOLT

01550-0610A

2
Out of stock
