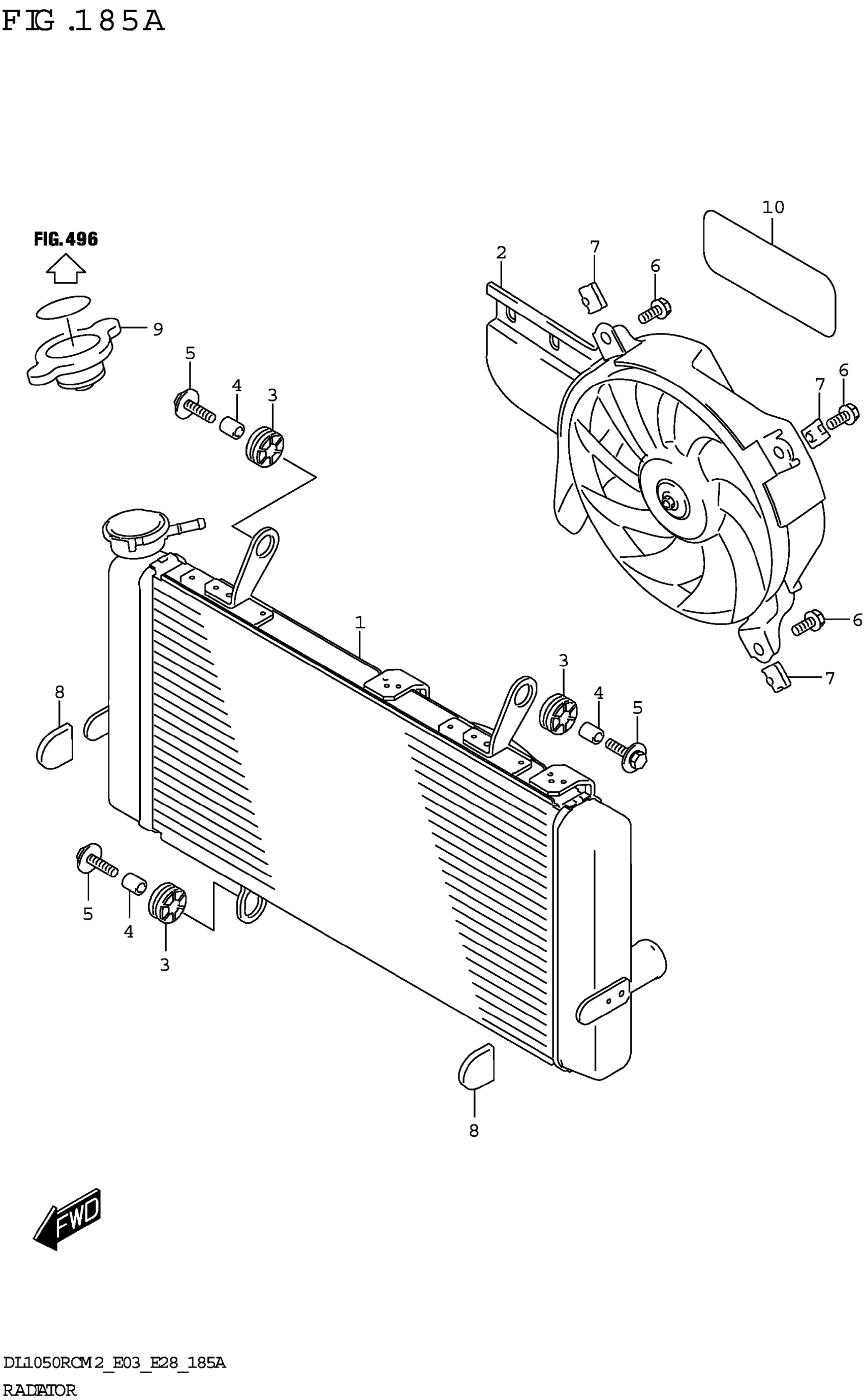

Suzuki DL1050RCM2 (2022) RADIATOR Diagram

#

Description
Price

1

RADIATOR,WATER

17710-06L00

$698.05

2

FAN ASSY,RADIATOR

17800-06L00

$557.85

3

CUSHION

09320-10051

$2.91

4

SPACER (6.5X10X12)

09180-06290

$2.09

5

BOLT (6X25)

09118-06097

$2.57

6

BOLT,RADIATOR FAN

17711-07L00

$5.02

7

NUT,RADIATOR FAN

17802-14F00

$3.33

8

CUSHION

09329-18001

$1.97

9

CAP,RADIATOR (1.1)

17730-08D10

$58.77

10

TAPE,RR FENDER (30X75X0.2)

63131-10F00

$15.83
