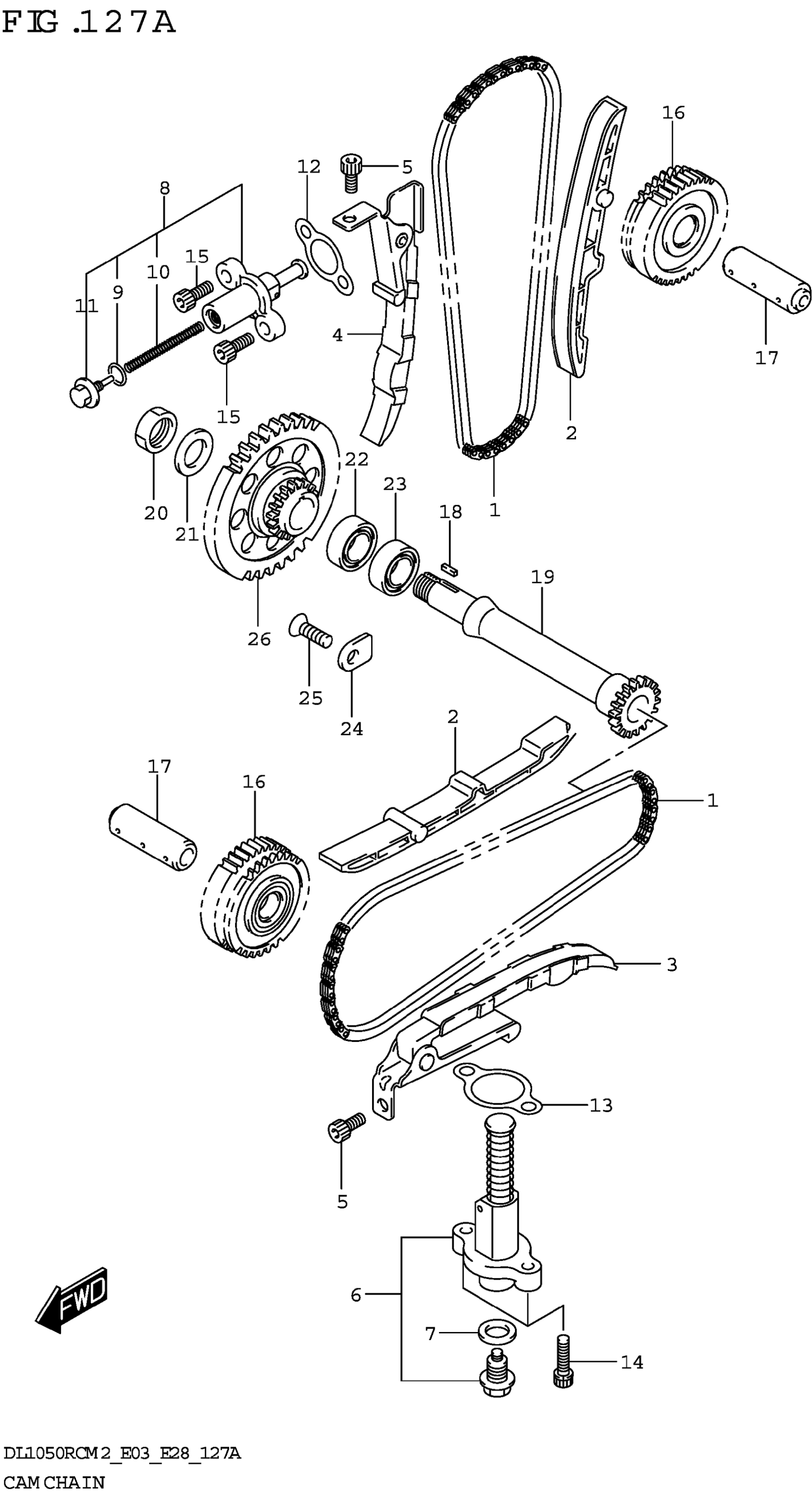

Find the part on the CAM Chain diagram for your 2022 Suzuki DL1050RCM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki DL1050RCM2 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-23F20

2
Out of stock

2

GUIDE,CAM CHAIN

12771-06G00

2
Out of stock

3

TENSIONER,CAM CHAIN FR

12810-06G00

1
Out of stock

4

TENSIONER,CAM CHAIN,REAR

12815-06G00

1
Out of stock

5

BOLT

07120-0612A

2
Out of stock

6

ADJUSTER ASSY,TENSIONER FRONT

12832-06L00

1
Out of stock

7

.GASKET (12X21X2)

09168-12018

1
Out of stock

8

ADJUSTER ASSY,TENSIONER

12830-30A01

1
Out of stock

9

.O-RING

12832-02A00

1
Out of stock

10

.SPRING

12833-30A01

1
Out of stock

11

.PLUG,ADJUSTER

12834-02A00

1
Out of stock

12

.GASKET,TENSIONER ADJUSTER

12837-19B10

1
Out of stock

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

14

BOLT (6X25)

07130-0625A

2
Out of stock

15

BOLT

07130-0620B

2
Out of stock

16

GEAR,CAM CHAIN IDLER NO.2 (NT | 31/41)

12750-31J10

2
Out of stock

17

SHAFT,IDLER NO.2

12755-31J00

2
Out of stock

18

KEY

09421-04004

1
Out of stock

19

SHAFT,IDLER

12716-06G00

1
Out of stock

20

NUT This part replaces 09140-16001.

09140-16005

1
Out of stock

21

SHIM (16X26X1.5)

09181-16212

1
Out of stock

22

BEARING

08112-6303A

1

$16.26

In stock

23

BEARING (25X47X8)

09262-25006

1
Out of stock

24

RETAINER

24741-20A00

1
Out of stock

25

SCREW (6X12)

09126-06011

1
Out of stock

26

SPROCKET,IDLER NO.1 (NT:36)

12731-06G01

1
Out of stock
