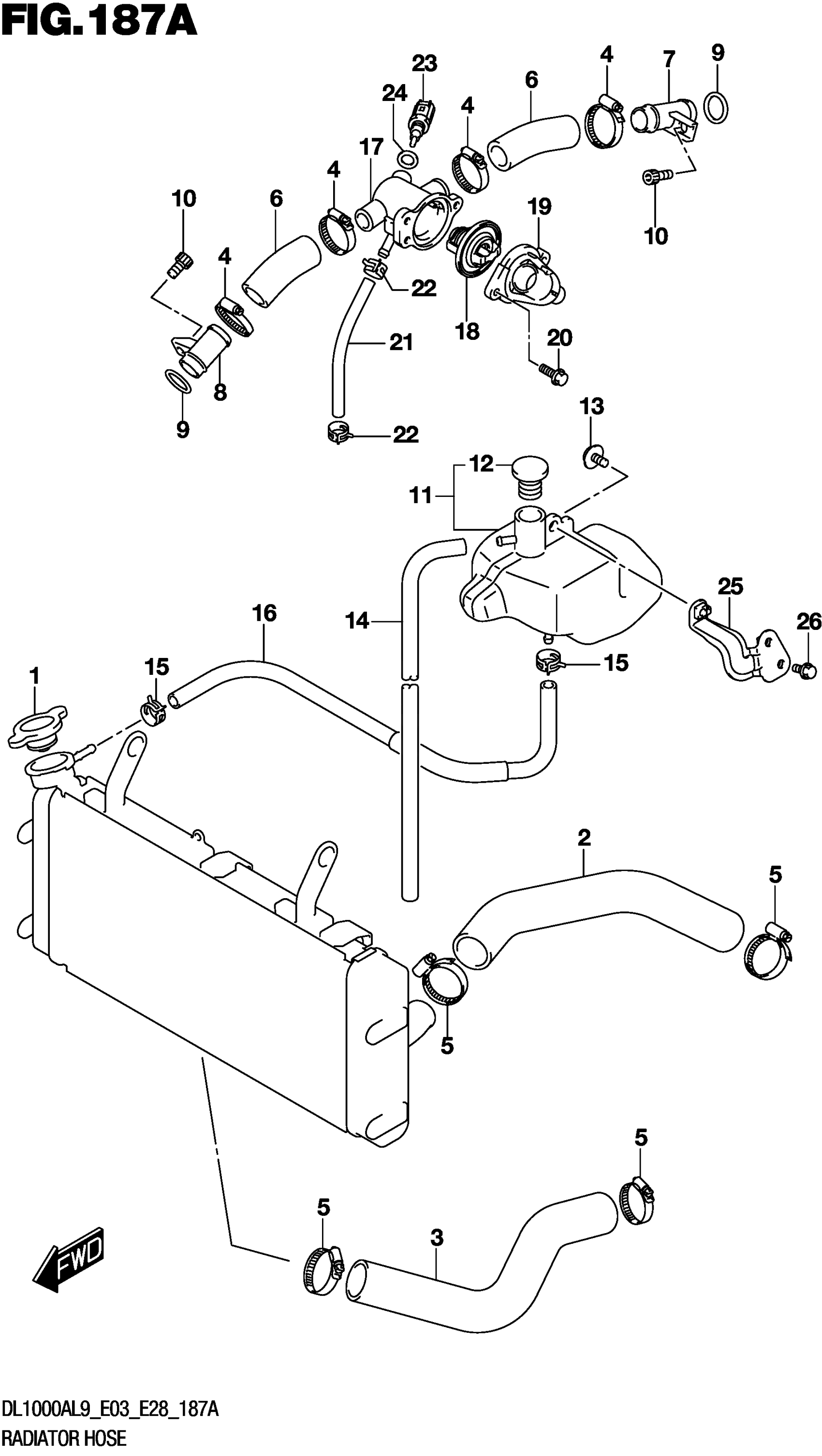

Suzuki DL1000AL9 (2019) RADIATOR HOSE Diagram

#

Description
Price

1

CAP,RADIATOR (1.1)

17730-14G00

$39.21

2

HOSE, RADIATOR INLET

17851-31J00

$35.45

3

HOSE, RADIATOR OUTLET

17852-31J00

$31.53

4

CLAMP

09402-28513

$6.31

5

CLAMP

09402-35501

$6.68

6

HOSE,CONNECTOR INLET

17853-02F10

$12.62

7

UNION,CONNECTOR HOSE

17890-06G20

$13.59

8

UNION,CONNECTOR HOSE

17890-06G20

$13.59

9

O RING (D:3.2,ID:17.8) This part replaces 09280-18008.

09280-18009

$5.26

10

BOLT

07130-0612A

$2.50

11

TANK ASSY,RESERVOIR

17910-31J00

Unavailable

12

.CAP,WATER RESERVOIR TANK

17931-31J00

$8.13

13

BOLT (6X12)

09111-06085

$4.16

14

HOSE,RSVR TANK OVFL

17982-31J00

Unavailable

15

CLIP (ID:8.6)

09401-08411

$1.77

16

HOSE, RESERVOIR TANK INLET

17981-31J00

$22.08

17

CONNECTOR,THERMOSTAT INLET

17662-02F11

$72.57

18

THERMOSTAT,WATER This part replaces 17670-06G50.

17670-06G51

$23.59

19

CAP,THERMOSTAT CONNECTOR

17663-42E00

$61.78

20

BOLT

01550-0616A

$1.97

21

HOSE,WATER BYPASS

17856-16G10

$25.08

22

CLIP

09401-12414

$2.98

23

SENSOR,TEMP

13650-49X00

$82.56

24

GASKET (12X17X1)

09168-12017

$1.97

25

BRACKET,RSVR TANK

17920-31J00

Unavailable

26

BOLT

01550-0610A

$1.97
