2019 Suzuki DL1000AL9 Cam Chain Diagram

← All diagrams

Find the part on the Cam Chain diagram for your 2019 Suzuki DL1000AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

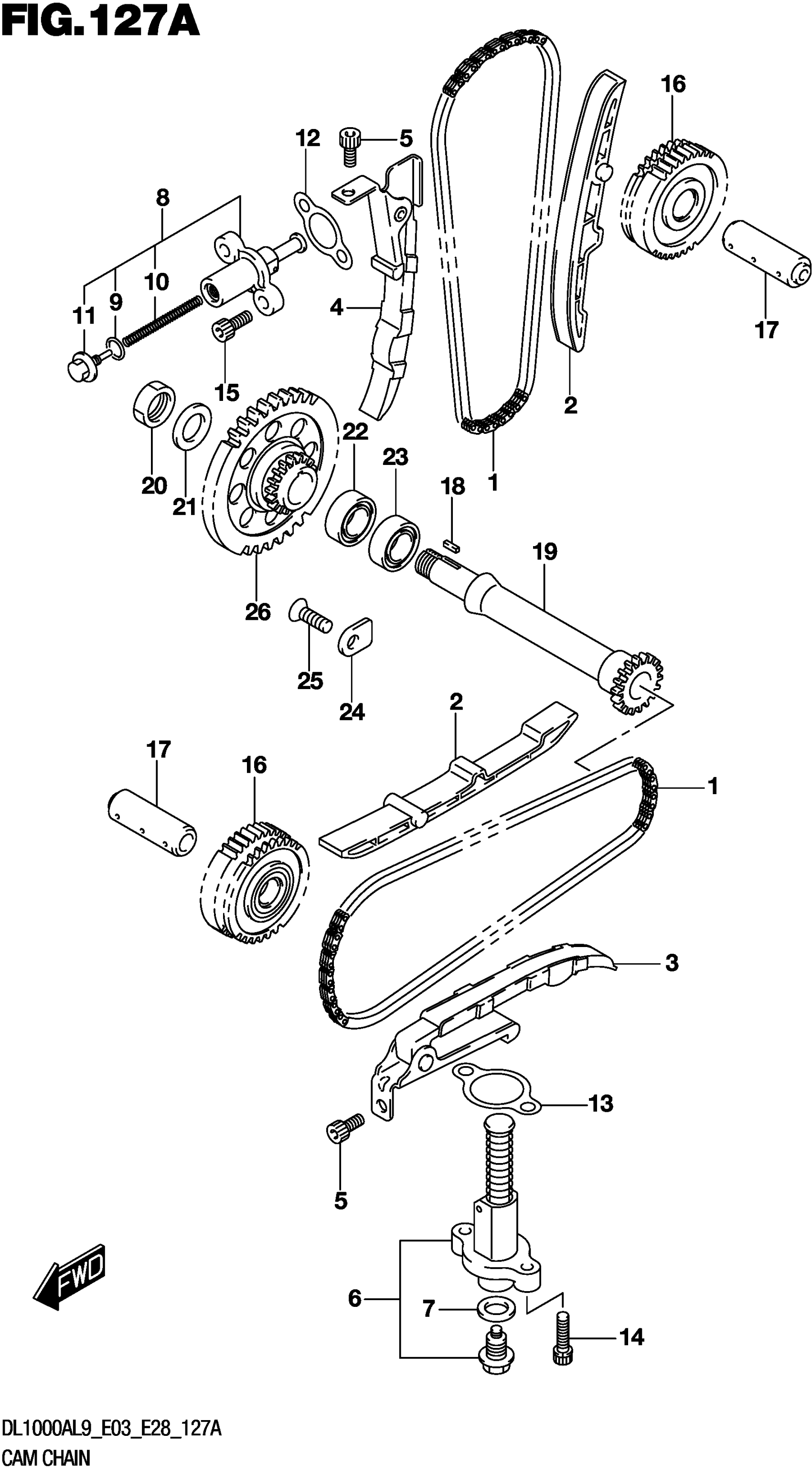

2019 Suzuki DL1000AL9 Cam Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE

12760-23F20

2

$77.70

In stock

2

GUIDE,CAM CHAIN

12771-06G00

2

$38.53

In stock

3

1

$108.60

In stock

4

1

$108.60

In stock

5

BOLT

07120-0612A

2
Out of stock

6

1

$186.02

In stock

7

.GASKET (12X21X2)

09168-12018

1

$3.37

In stock

8

1

$136.77

In stock

9

.O-RING

12832-02A00

1
Out of stock

10

.SPRING

12833-30A01

1
Out of stock

11

.PLUG,ADJUSTER

12834-02A00

1
Out of stock

12

.GASKET,TENSIONER ADJUSTER

12837-19B10

1
Out of stock

13

1

$3.24

In stock

14

BOLT (6X25)

07130-0625A

2

$2.85

In stock

15

BOLT

07130-0620A

2
Out of stock

16

GEAR,CAM CHAIN IDLER NO.2 (NT

12750-31J10

2
Out of stock

16

GEAR,CAM CHAIN IDLER NO.2 (NT

12750-31J10

1
Out of stock

17

SHAFT,IDLER NO.2

12755-31J00

2
Out of stock

18

KEY

09421-04004

1

$3.94

In stock

19

SHAFT,IDLER

12716-06G00

1

$165.98

In stock

20

1

$4.08

In stock

21

SHIM (16X26X1.5)

09181-16212

1
Out of stock

22

BEARING, RH | RH

08112-63030

1
Out of stock

23

BEARING (25X47X8) | LH

09262-25006

1
Out of stock

24

RETAINER

24741-20A00

1

$2.92

In stock

25

SCREW (6X12)

09126-06011

1
Out of stock

26

SPROCKET,IDLER NO.1 (NT:36)

12731-06G01

1
Out of stock
