2019 Suzuki DL1000AL9 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2019 Suzuki DL1000AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

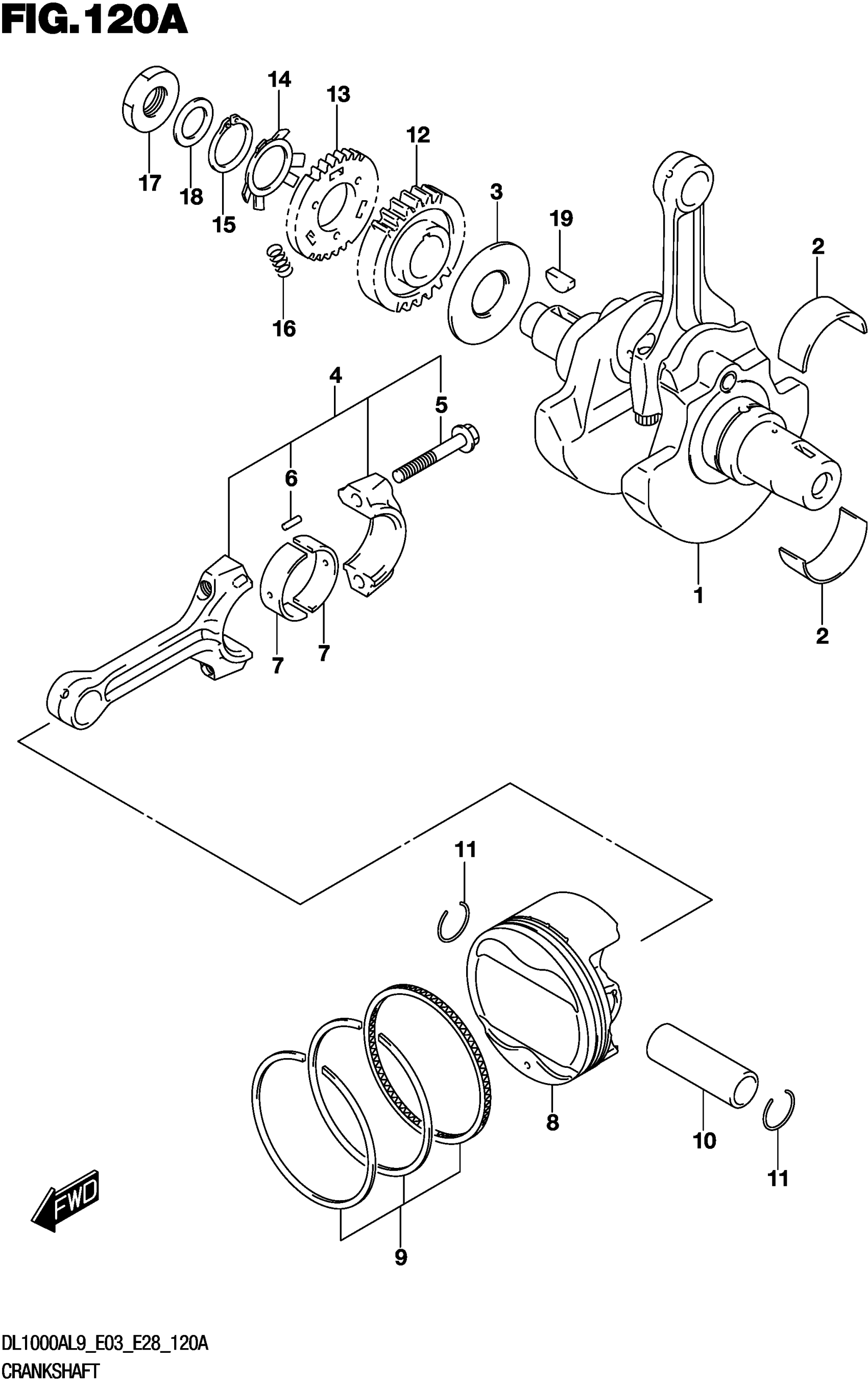

2019 Suzuki DL1000AL9 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT

12220-31J00

1
Out of stock

2-1

BEARING,CRANKSHAFT

12229-31J00-0A0

4
Out of stock

2-2

BEARING,CRANKSHAFT

12229-31J00-0B0

4
Out of stock

2-3

BEARING,CRANKSHAFT

12229-31J00-0C0

4
Out of stock

3

WASHER,CRANK THRUST

12652-38B00

1
Out of stock

4

CONNECTING ROD ASSY

12160-06G10

2
Out of stock

5

.BOLT,CONNROD

12163-06G00

4
Out of stock

6

.PIN,CONNROD

12165-27A50

4
Out of stock

7-1

BEARING,CRANK PIN

12164-31J00-0A0

4
Out of stock

7-2

BEARING,CRANK PIN

12164-31J00-0B0

4
Out of stock

7-3

BEARING,CRANK PIN

12164-31J00-0C0

4
Out of stock

7-4

BEARING,CRANK PIN

12164-31J00-0D0

4
Out of stock

8

PISTON

12111-31J10-0F0

2
Out of stock

9

RING SET,PISTON

12140-31J00

2
Out of stock

10

PIN,PISTON

12151-02F10

2
Out of stock

11

CIRCLIP

09381-22002

4
Out of stock

12

GEAR,PRI DRIVE (NT:31)

21111-02F11

1
Out of stock

13

GEAR,PRI DRIVE SCISSORS (NT:3

21112-02F00

1
Out of stock

13

GEAR,PRI DRIVE SCISSORS (NT:3

21112-02F00

1
Out of stock

14

WASHER,PRI DRIVE

21114-02F00

1
Out of stock

15

CIRCLIP

08331-31409

1
Out of stock

16

SPRING

09440-07001

3
Out of stock

17

NUT

09140-22012

1
Out of stock

18

WASHER (22.2X35X2(3))

09164-22007

1
Out of stock

19

KEY

09420-06001

1
Out of stock
