2018 Suzuki DL1000AL8 Steering Stem Diagram

← All diagrams

Find the part on the Steering Stem diagram for your 2018 Suzuki DL1000AL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

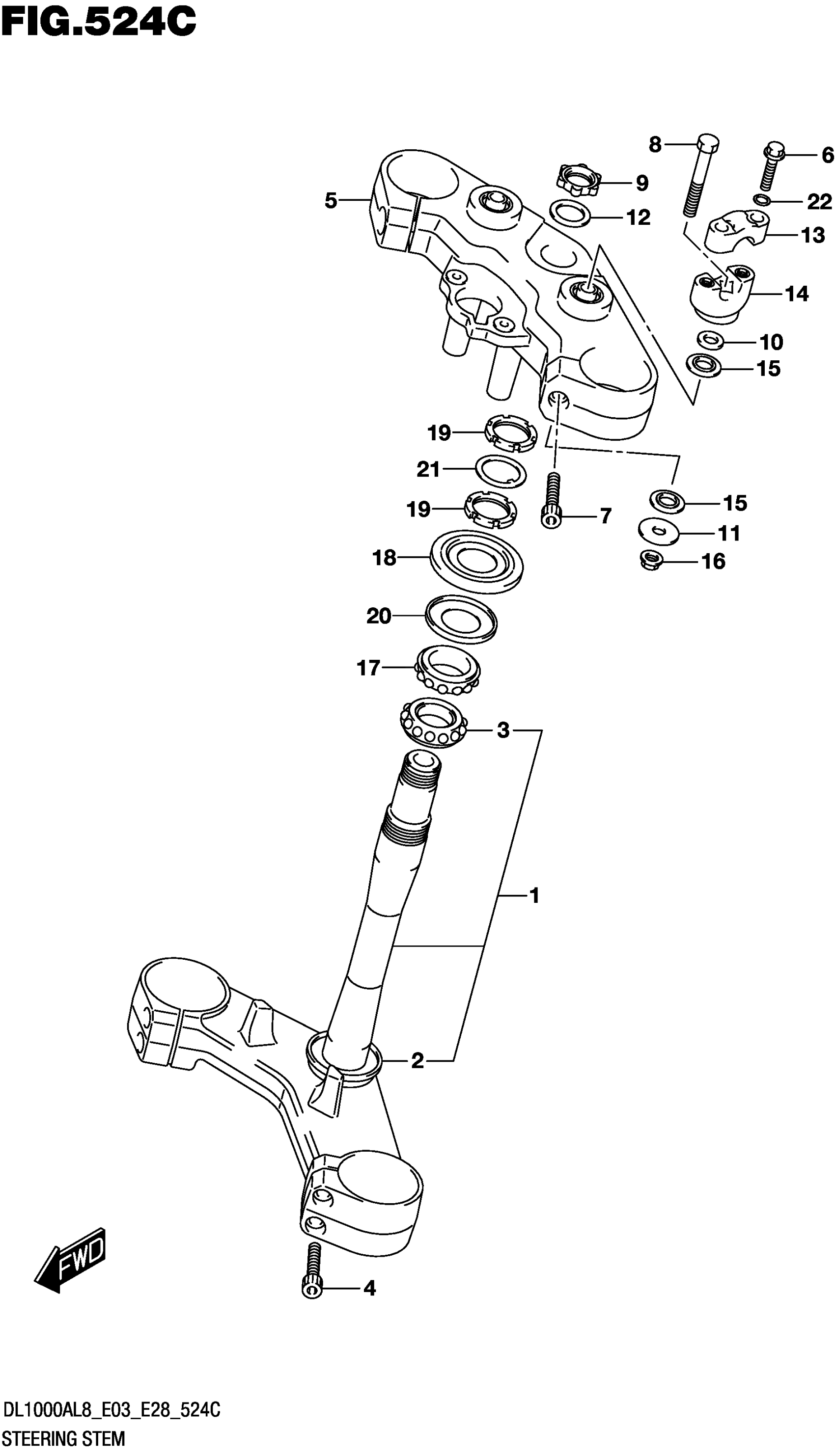

2018 Suzuki DL1000AL8 Steering Stem Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET,UNDER

51410-31J00

1
Out of stock

2

.SEAL, STEERING LOWER

51644-12C00

1
Out of stock

3

.BEARING (30X55X17)

09267-30010

1
Out of stock

4

BOLT (8X40)

51328-44G10

4
Out of stock

5

BRACKET, UPPER (BLACK)

51311-31J00-YTA

1

$265.38

In stock

6

BOLT

51147-31J00

4

$2.77

In stock

7

BOLT (8X40)

51328-44G10

2
Out of stock

8

BOLT

51321-17H10

2

$6.38

In stock

9

NUT, CAP

51353-24F00

1
Out of stock

10

WASHER

51354-17H00

2
Out of stock

11

WASHER

51355-16G00

2
Out of stock

12

WASHER

51356-24F50

1
Out of stock

13

HOLDER, HANDLE (BLACK)

56211-31J00-YTA

2
Out of stock

14

HOLDER, HANDLE (BLACK)

56221-08J00-YTA

2
Out of stock

15

RUBBER,HANDLE HOLDER

56245-31J00

4
Out of stock

16

NUT

08319-3110A

2
Out of stock

17

BEARING (30X55X17)

09267-30010

1
Out of stock

18

COVER, STEERING UPPER

51643-41G00

1
Out of stock

19

NUT, STEERING STEM

51631-33E00

2
Out of stock

20

SEAL, STEERING LWR

51644-12C00

1
Out of stock

21

WASHER, STEERING STEM

51641-33E00

1
Out of stock

22

WASHER

09164-08015

4
Out of stock
