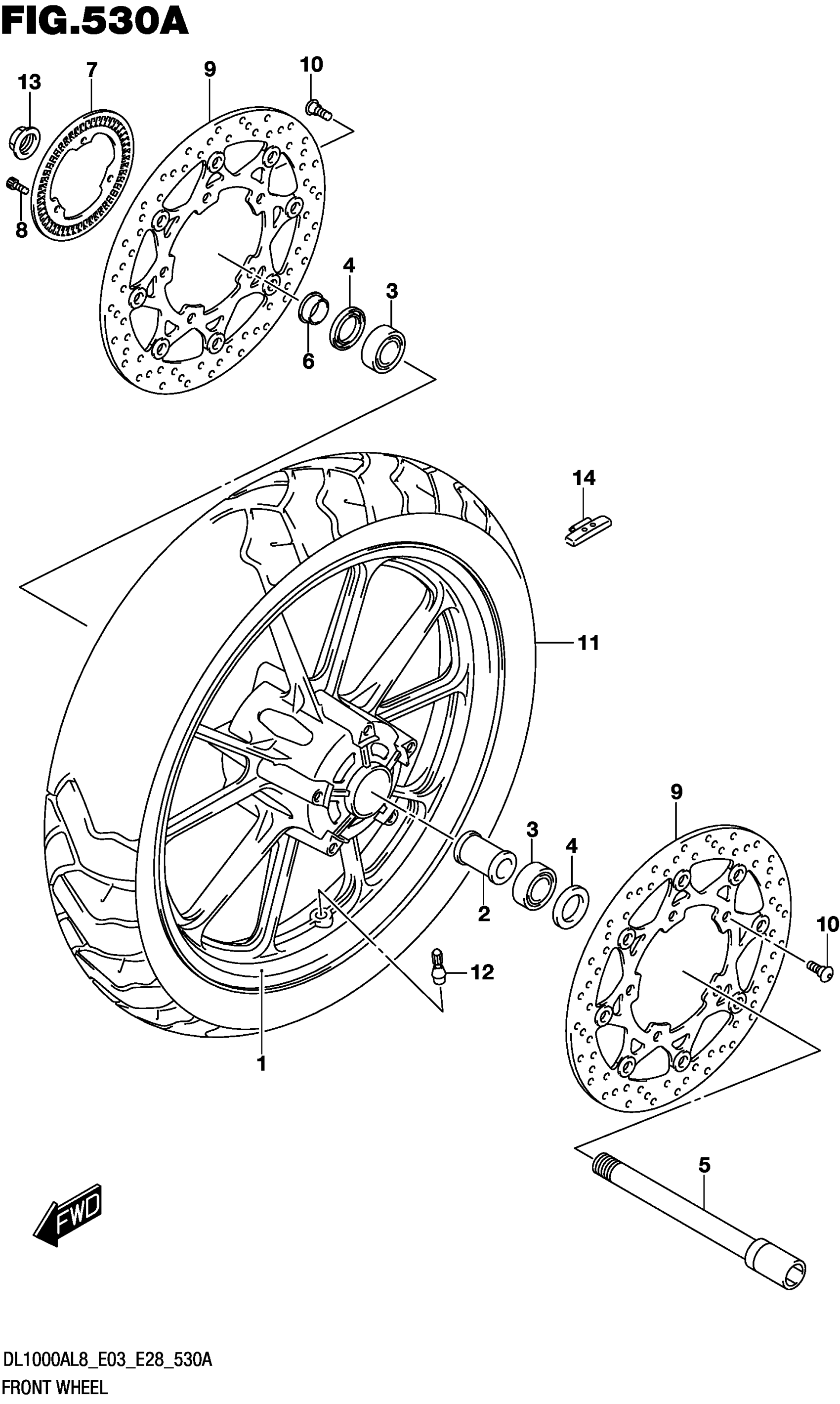

Suzuki DL1000AL8 (2018) FRONT WHEEL (DL1000AL8 E03) Diagram

#

Description
Price

1

WHEEL,FR (BLACK) This part replaces 54111-31J00-019.

54111-31J01-019

$563.17

1

WHEEL,FR (BLACK) This part replaces 54111-31J00-019.

54111-31J01-019

$563.17

2

SPACER, FRONT WHEEL BEARING

54731-33E20

$55.32

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$21.91

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5

AXLE,FR

54711-31J00

$155.45

6

SPACER, FRONT AXLE

54751-41G10

$17.99

7

RING, SPEED SENSOR FRONT

54162-27G00

$158.17

8

BOLT

07130-0512A

$2.19

9

DISC, FRONT BRAKE

59210-31J00

$334.42

10

BOLT (8X21)

09106-08160

$3.22

11

TIRE, FRONT | BW-501 RADIAL J

55110-31J00

Unavailable

11

(110/80R19M/C 59V) | BRIDGESTONE

55110-31J00

Unavailable

12

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

13

NUT, FRONT AXLE

54712-47H00

$46.87

14-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$9.70

14-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$11.37

14-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$12.93
