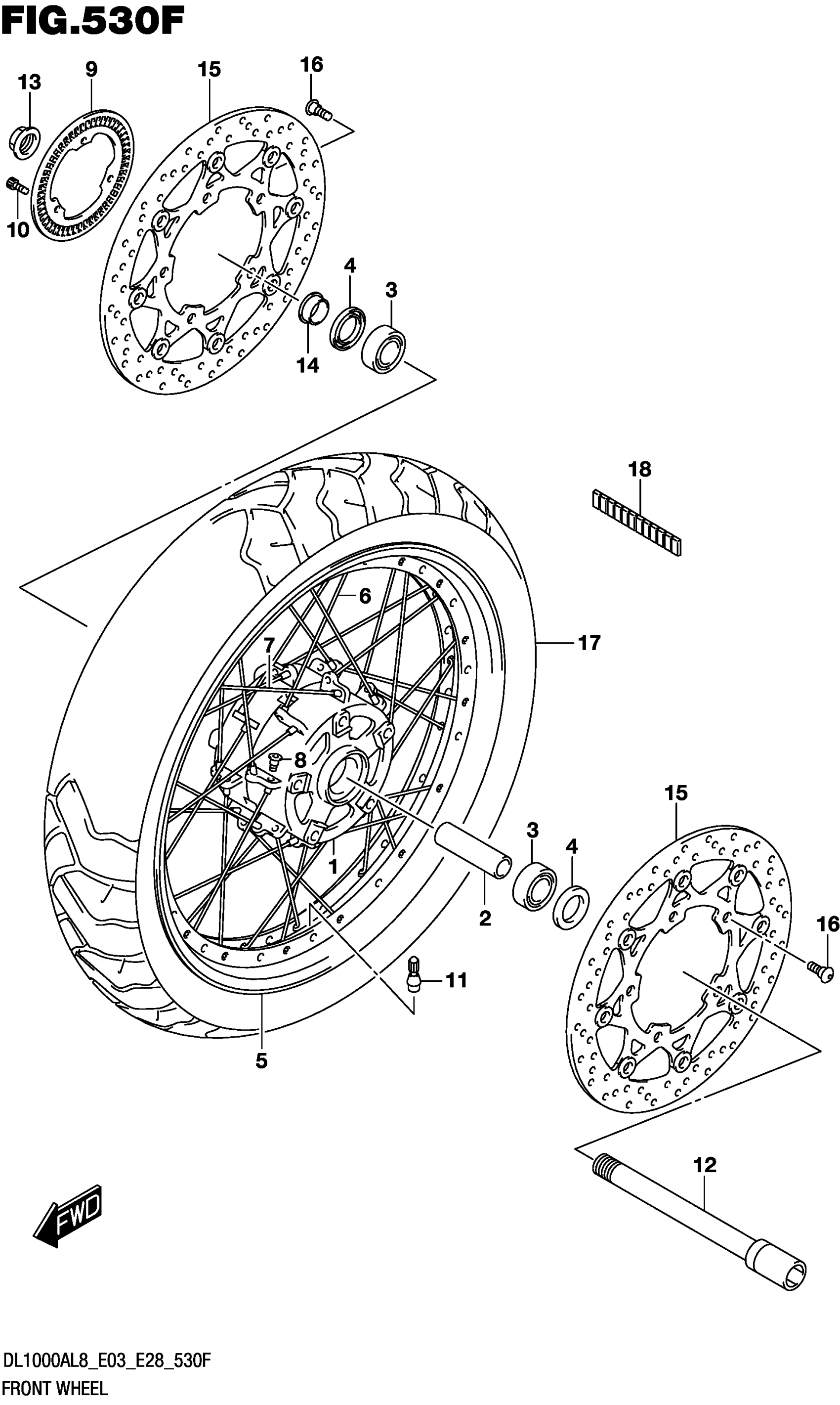

Suzuki DL1000AL8 (2018) FRONT WHEEL (DL1000XAL8 E33) Diagram

#

Description
Price

1

HUB,FRONT

54111-31J10

$824.88

2

SPACER, FR HUB BEARING

54731-33E20

$55.32

3

BEARING (25X52X15) This part replaces 09262-25167.

09262-25191

$21.91

4

.SEAL,OIL (32X52X7)

09285-32004

$7.20

5-1

RIM, FRONT WHEEL (BLACK)

55311-31J00

$945.35

5-1

(19M/CXMT2.50)

55311-31J00

$945.35

5-2

RIM, FRONT WHEEL (GOLD)

55311-31J10

$976.83

5-2

(19M/CXMT2.50)

55311-31J10

$976.83

6

SPOKE, FRONT WHEEL INNER This part replaces 55321-11J00.

55321-11J01

$7.45

7

SPOKE,FRONT WHEEL OUTER This part replaces 55322-31J00.

55322-31J01

$7.68

8

NIPPLE, WHEEL

55326-11J00

$4.85

9

RING, SPEED SENSOR FR (50T)

54162-27G00

$158.17

10

BOLT

07130-0512A

$2.19

11

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.10

12

AXLE,FR

54711-31J00

$155.45

13

NUT, FR AXLE

54712-47H00

$46.87

14

SPACER, FRONT AXLE RH

54751-41G10

$17.99

15

DISC, FRONT BRAKE

59210-31J00

$334.42

16

BOLT (8X21)

09106-08160

$3.22

17

TIRE, FRONT | BW-501 RADIAL J

55110-31J00

Unavailable

17

(110/80R19M/C 59V) | BRIDGESTONE

55110-31J00

Unavailable

18

WEIGHT,WHEEL BALANCE (5GRAM)

55411-11J00

$6.08
