2015 Suzuki DL1000AL5 Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2015 Suzuki DL1000AL5, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

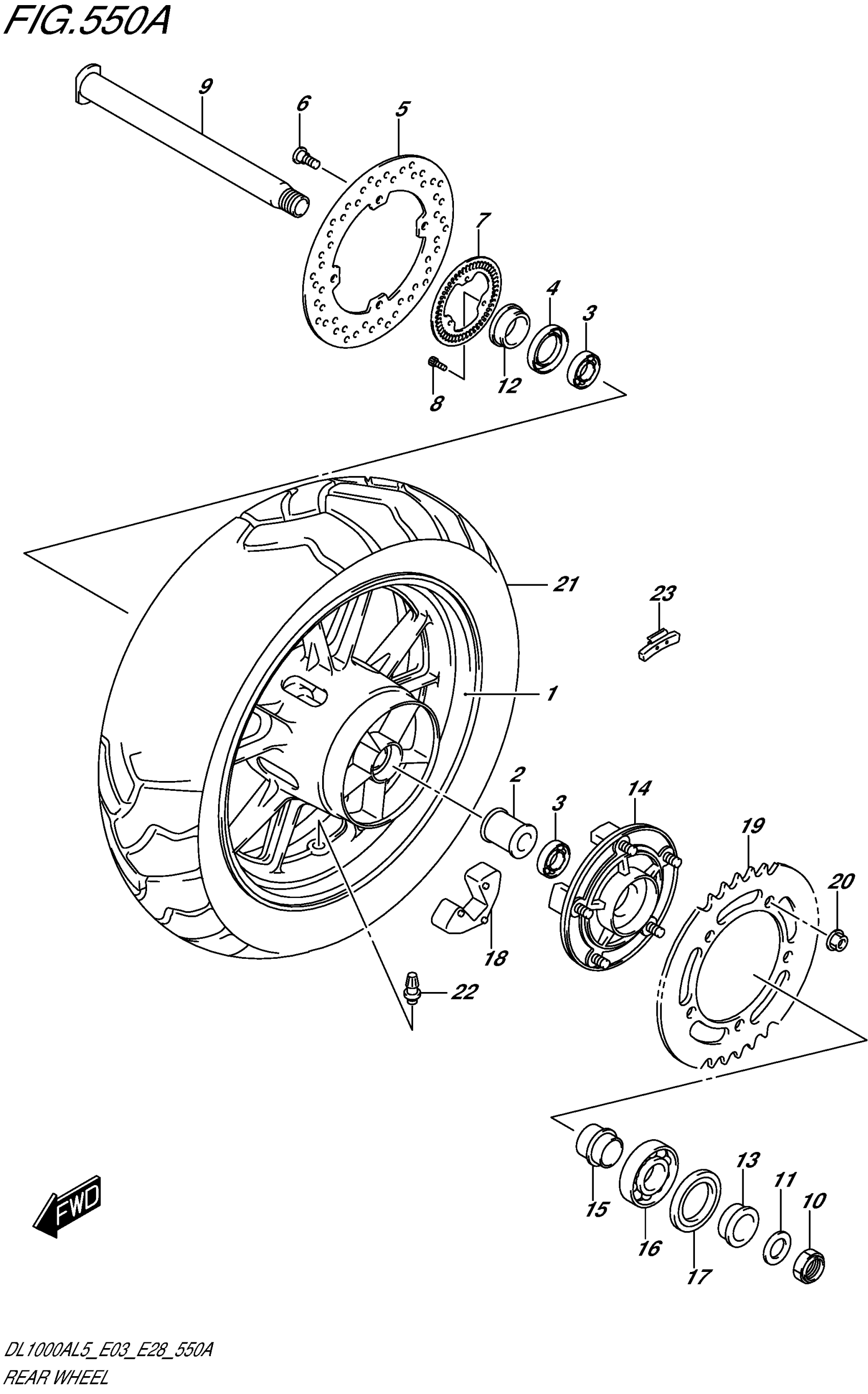

2015 Suzuki DL1000AL5 Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR (17M/CXMT4.00) (BLACK)

64111-31J00-019

1
Out of stock

2

SPACER, REAR WHEEL BEARING

64731-49G00

1
Out of stock

3

BEARING (28X52X12) This part replaces 09262-28052.

09262-28062

2
Out of stock

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

1
Out of stock

5

DISC,REAR BRAKE

69211-06G00

1
Out of stock

6

BOLT (8X21)

09106-08160

4
Out of stock

7

RING, SPEED SENSOR REAR

64162-17G00

1
Out of stock

8

BOLT

07130-0512A

3
Out of stock

9

AXLE,RR

64711-31J00

1
Out of stock

10

NUT

09159-25003

1
Out of stock

11

WASHER (25.2X42X3.2)

09160-25070

1
Out of stock

12

SPACER,REAR AXLE,R This part replaces 64741-35F00.

64741-35F10

1
Out of stock

13

SPACER,REAR AXLE,L This part replaces 64751-47H00.

64751-47H10

1
Out of stock

14

DRUM,RR SPROCKET

64610-35F30

1
Out of stock

15

RETAINER, REAR SPROCKET DRUM

64733-35F00

1
Out of stock

16

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

1
Out of stock

17

OIL SEAL (39X65X7)

09285-39001

1
Out of stock

18

ABSORBER,RR HUB SHOCK

64651-35F30

5
Out of stock

19

SPROCKET, REAR (NT:41)

64511-35F20

1
Out of stock

20

NUT

08319-3110A

5
Out of stock

21

TIRE, REAR (150/70R17M/C 69V)

65110-31J00

1
Out of stock

22

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

23

BALANCER, WHEEL NO.1 | 10G

55411-22H00

1
Out of stock

23

BALANCER, WHEEL NO.2 | 20G

55412-22H00

1
Out of stock

23

BALANCER, WHEEL NO.3 | 30G

55413-22H00

1
Out of stock
