Partiron

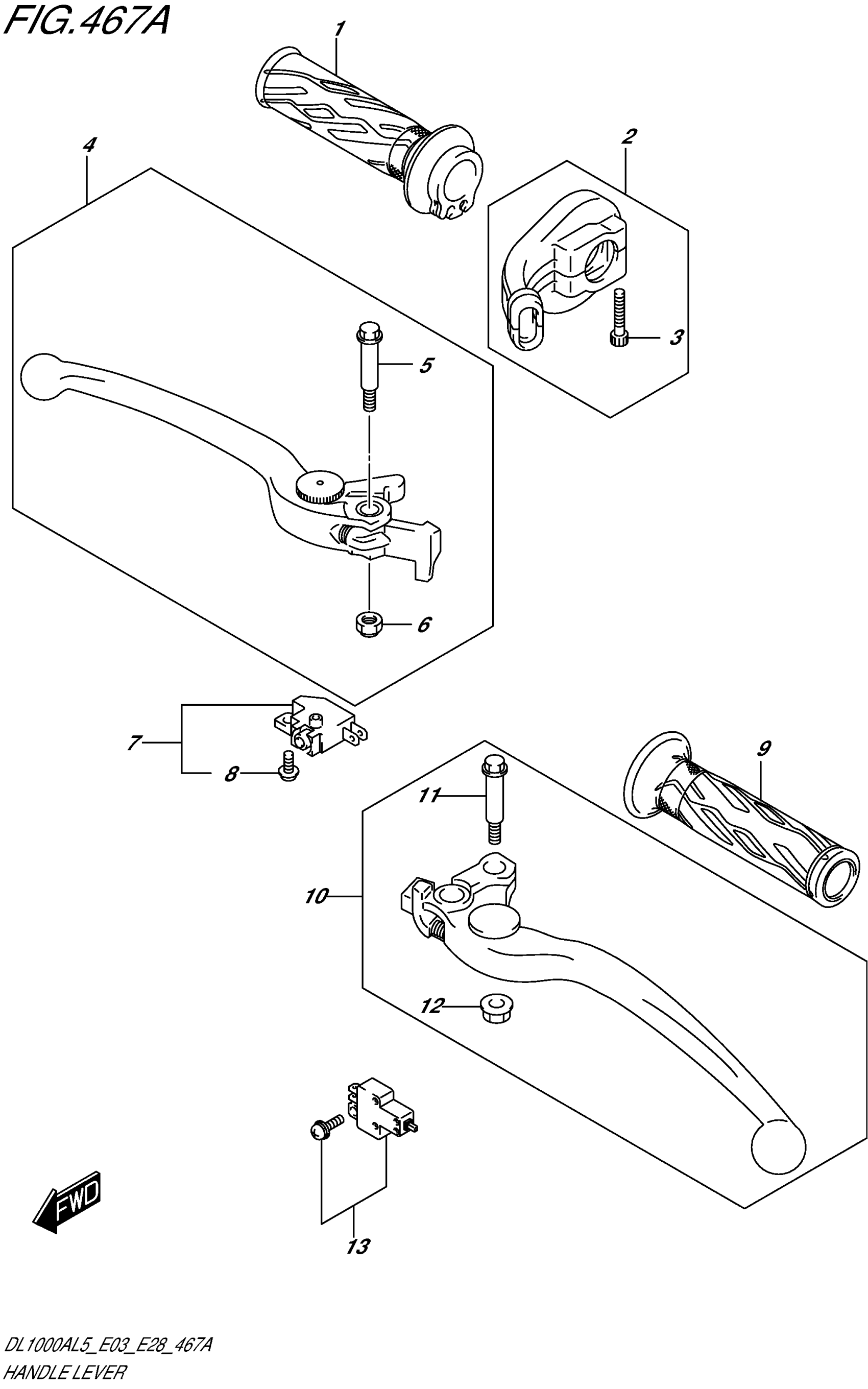

Suzuki DL1000AL5 (2015) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-21H01.

57110-21H02

$19.46

2

CASE ASSY,THROT This part replaces 57100-42F00.

57100-42F01

$61.78

3

BOLT

07130-0525B

$2.70

4

LEVER ASSY, BRAKE

57300-10G32

$40.42

5

BOLT

57431-17H02

$7.02

6

NUT

08319-2106A

$1.97

7

SWITCH ASSY,FR BRAKE This part replaces 57460-14J01.

57460-14J02

$36.79

8

SCREW

57465-17C00

$2.37

9

GRIP, LH This part replaces 57211-21H00.

57211-21H01

$10.65

10

LEVER ASSY,CLUTCH

57500-24F22

$54.00

11

BOLT

57431-17H02

$7.02

12

NUT

08316-1606B

$3.27

13

SWITCH ASSY,CLUTCH

57560-02FA0

$22.55
