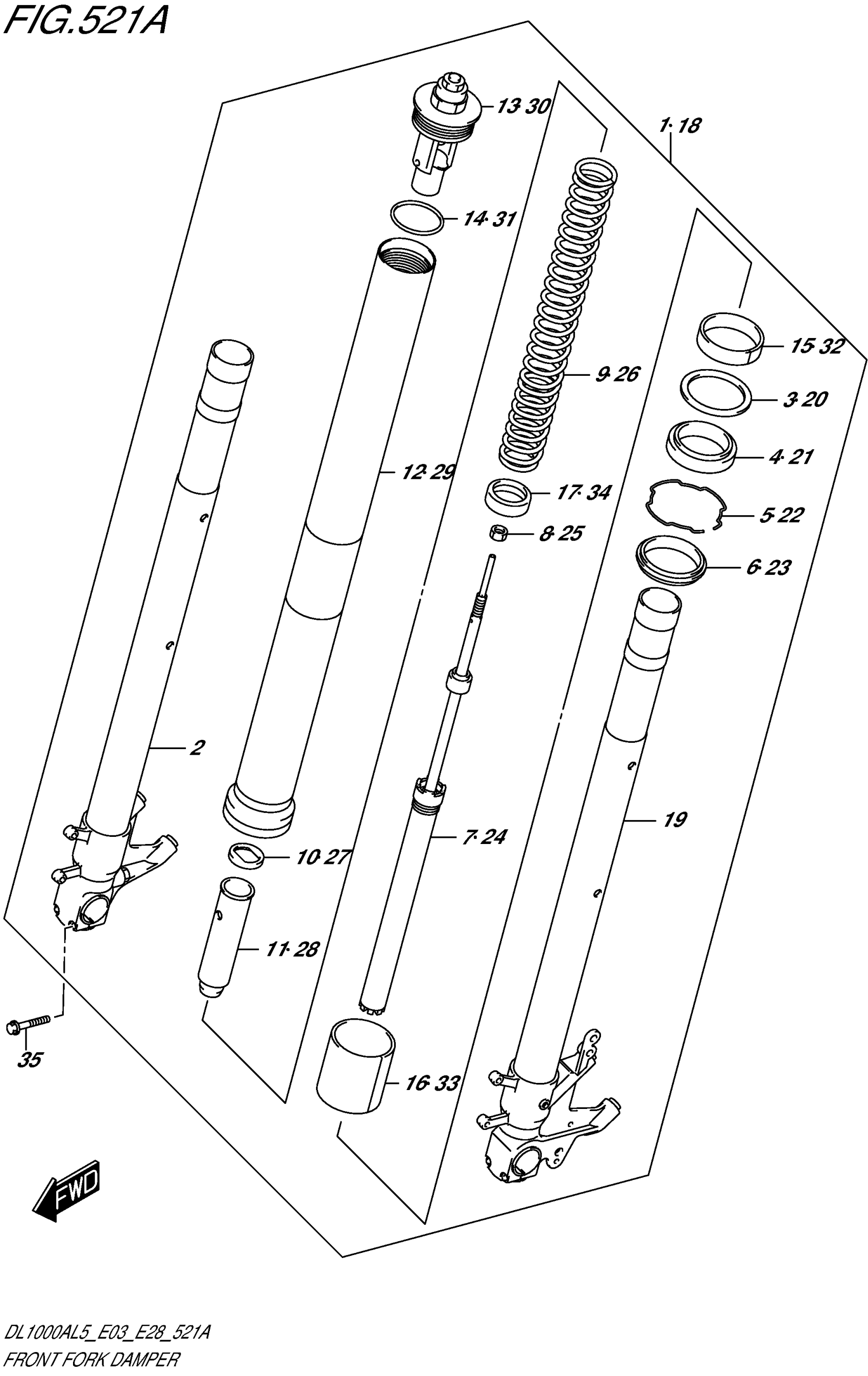

Suzuki DL1000AL5 (2015) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FR This part replaces 51103-31J20.

51103-31J21

$1,147.35

2

.TUBE,INNER,R This part replaces 51110-31J20.

51110-31J21

$441.82

3

WASHER

51158-40F00

$11.50

4

OIL SEAL

51153-44G00

$29.36

5

RING, OIL SEAL STOPPER

51156-14200

$4.63

6

SEAL, DUST

51173-02FA0

$24.34

7

CYLINDER

51146-31J00

Unavailable

8

.NUT, ROD

51352-13A60

$3.42

9

SPRING

51171-31J00

Unavailable

10

GUIDE, SPRING

51158-40F30

$11.75

11

.SPACER, SPRING

51176-48G10

$30.92

12

TUBE, OUTER

51131-31J00

Unavailable

13

CAP

51351-04K00

Unavailable

14

..O RING

62278-14100

$3.69

15

PISTON

51112-31J00

$12.25

16

SLIDEMETAL

51152-31J00

$11.72

17

SEAT, SPRING

51178-31J00

Unavailable

18

DAMPER ASSY, FRONT FORK LH

51104-31J20

$1,398.83

19

.TUBE,INNER,L This part replaces 51120-31J20.

51120-31J21

$477.15

20

WASHER

51158-40F00

$11.50

21

OIL SEAL

51153-44G00

$29.36

22

RING, OIL SEAL STOPPER

51156-14200

$4.63

23

SEAL, DUST

51173-02FA0

$24.34

24

CYLINDER

51146-31J00

Unavailable

25

.NUT, ROD

51352-13A60

$3.42

26

SPRING

51171-31J00

Unavailable

27

GUIDE, SPRING

51158-40F30

$11.75

28

.SPACER, SPRING

51176-48G10

$30.92

29

TUBE, OUTER

51131-31J00

Unavailable

30

CAP

51351-04K00

Unavailable

31

..O RING

62278-14100

$3.69

32

PISTON

51112-31J00

$12.25

33

SLIDEMETAL

51152-31J00

$11.72

34

SEAT, SPRING

51178-31J00

Unavailable

35

BOLT

51166-24F60

$5.10
