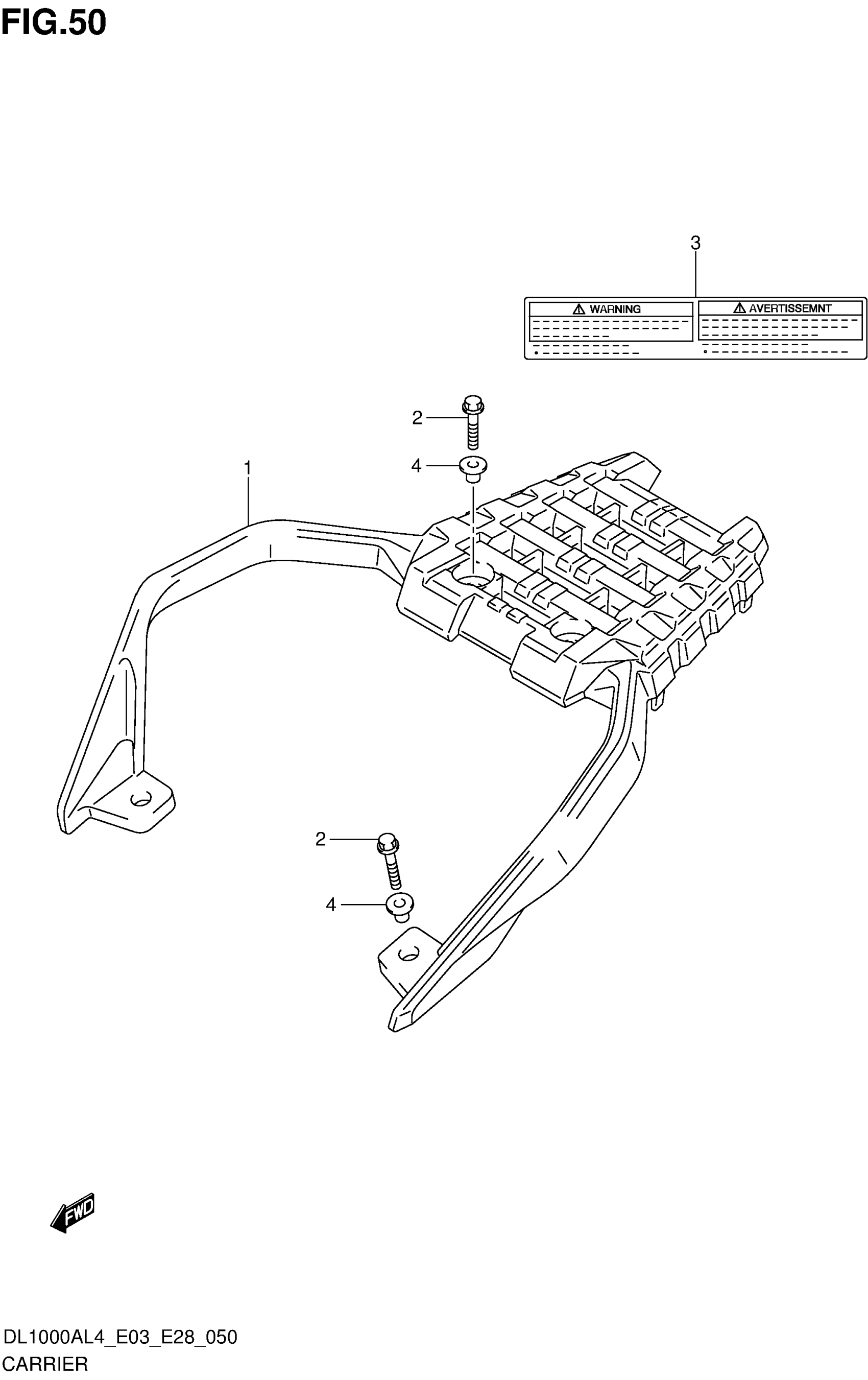

Suzuki DL1000AL4 (2014) CARRIER (DL1000AL4 E28) Diagram

#

Description

Price

1

CARRIER,SPORT This part replaces 46311-31J00-YYF.

46311-31J02

$259.68

2

BOLT (8X35)

09103-08512

$2.80

3

LABEL, WARNING LUGGAGE CARRIER

68391-06G90

Unavailable

4

WASHER

09169-08049

$3.76
