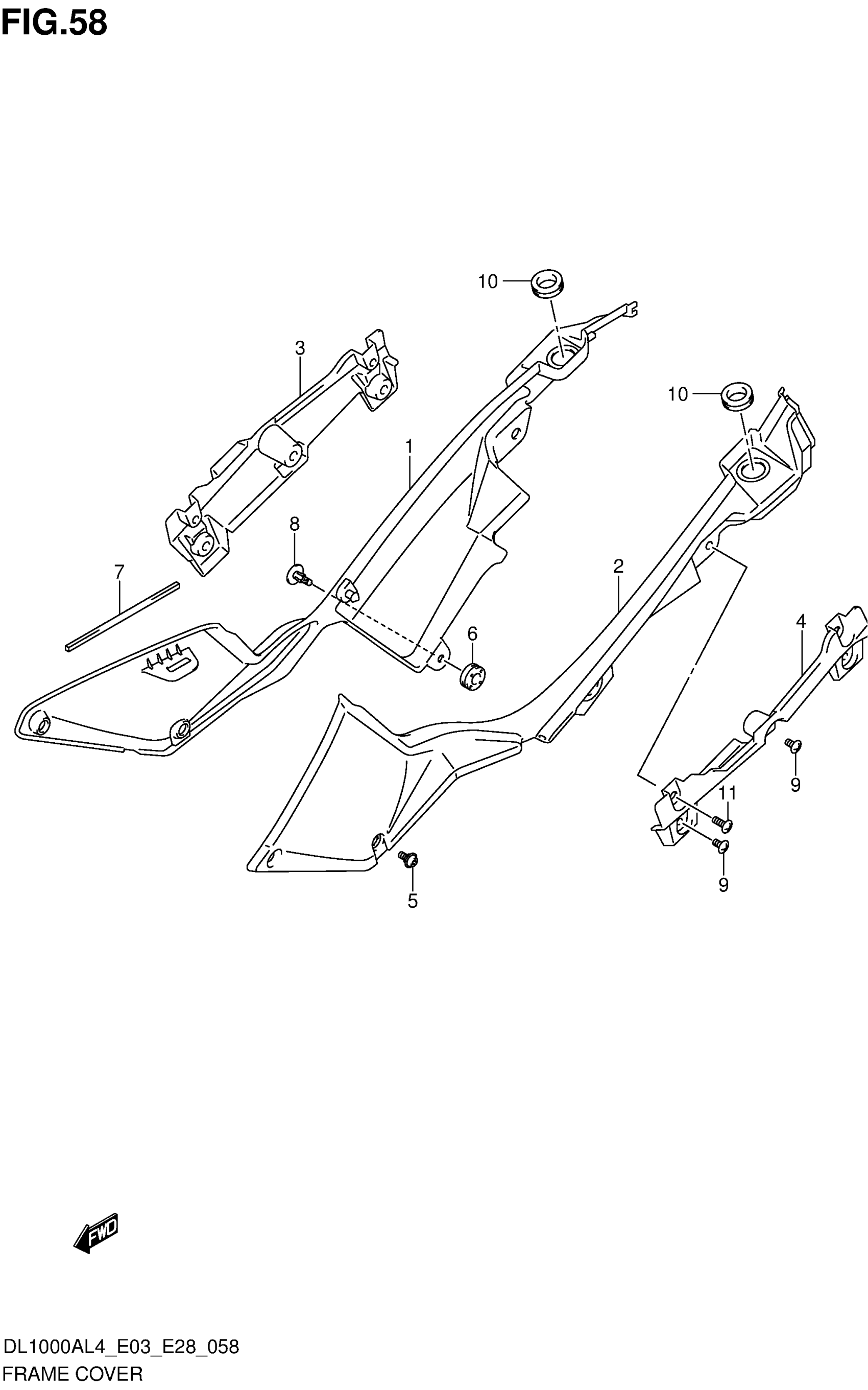

Suzuki DL1000AL4 (2014) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47111-31J00

Unavailable

2

COVER, FRAME LH (BLACK)

47211-31J00

Unavailable

3

COVER, FRAME REAR, R

47411-31J00

$12.87

4

COVER, FRAME REAR, L

47511-31J00

$12.87

5

BOLT (5X13)

09139-05074

$2.58

6

CUSHION

09320-08028

$2.80

7

CUSHION, FRAME COVER

47121-31J00

$3.10

8

CLIP

94479-35F00

$5.14

9

SCREW

47913-31J00

$2.26

10

CUSHION (20X32X9) This part replaces 09320-20010.

09320-20011

$2.71

11

SCREW (6X16)

09139-06120

$2.80
