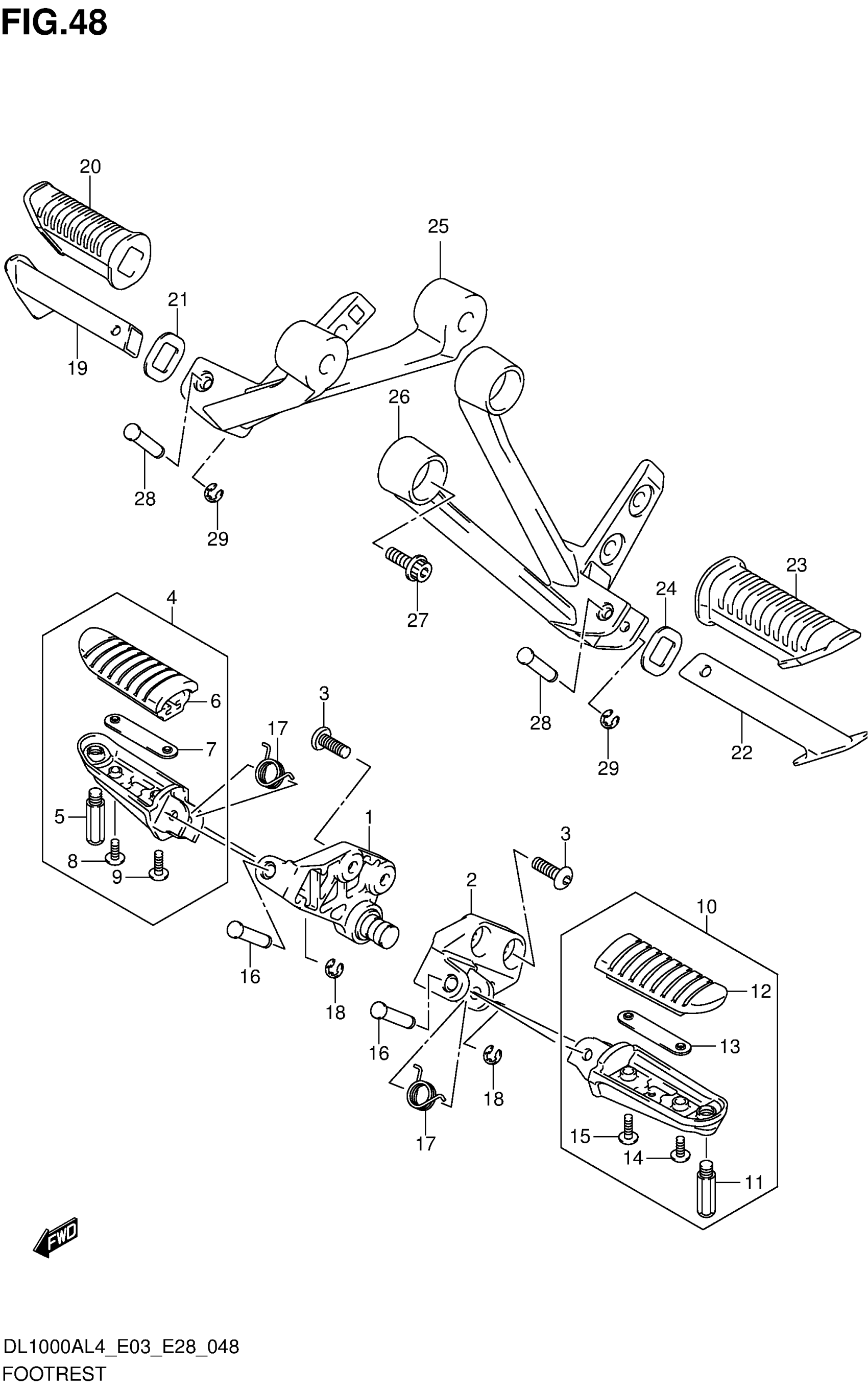

Suzuki DL1000AL4 (2014) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH (BLACK This part replaces 43510-06G01-YAP.

43510-06G10-YAP

$89.14

2

BRACKET,FR FOOTREST,L (BLACK) This part replaces 43521-06G01-YAP.

43521-06G11-YAP

$44.94

3

BOLT (8X23)

09106-08150

$3.13

4

FOOTREST ASSY,FRONT RH

43501-31J00

$132.10

5

SENSOR, FOOTREST

43576-31J00

$11.73

6

RUBBER

43551-06G00

$13.21

7

PLATE

43552-06G00

$14.47

8

SCREW | OUTER

02142-0516A

$1.43

9

SCREW | INNER

02142-0520A

$1.41

10

FOOTREST ASSY,FRONT LH

43502-31J00

$117.25

11

SENSOR, FOOTREST

43576-31J00

$11.73

12

RUBBER

43551-06G00

$13.21

13

PLATE

43552-06G00

$14.47

14

SCREW | OUTER

02142-0516A

$1.43

15

SCREW | INNER

02142-0520A

$1.41

16

PIN

09208-08016

$3.32

17

SPRING

09448-18022

$3.42

18

E RING

08332-1106A

$1.43

19

BAR, PILLION FOOTREST RH This part replaces 43610-34A00.

43610-34A60

$73.87

20

RUBBER, PILLION FOOTREST This part replaces 43612-33G01.

43612-33G30

$7.68

21

WASHER, FOOTREST RUBBER

43631-31J00

$5.82

22

BAR, PILLION FOOTREST LH This part replaces 43710-34A00.

43710-34A60

$70.48

23

RUBBER, PILLION FOOTREST This part replaces 43612-33G01.

43612-33G30

$7.68

24

WASHER, FOOTREST RUBBER

43631-34A01

$4.26

25

BRACKET, PILLION RH (SILVER)

43811-31J00-YD8

$173.27

26

BRACKET, PILLION LH (SILVER)

43821-31J00-YD8

$170.07

27

BOLT (8X30)

09106-08193

$3.01

28

PIN

09208-06007

$3.01

29

E RING

08332-1104A

$1.37
