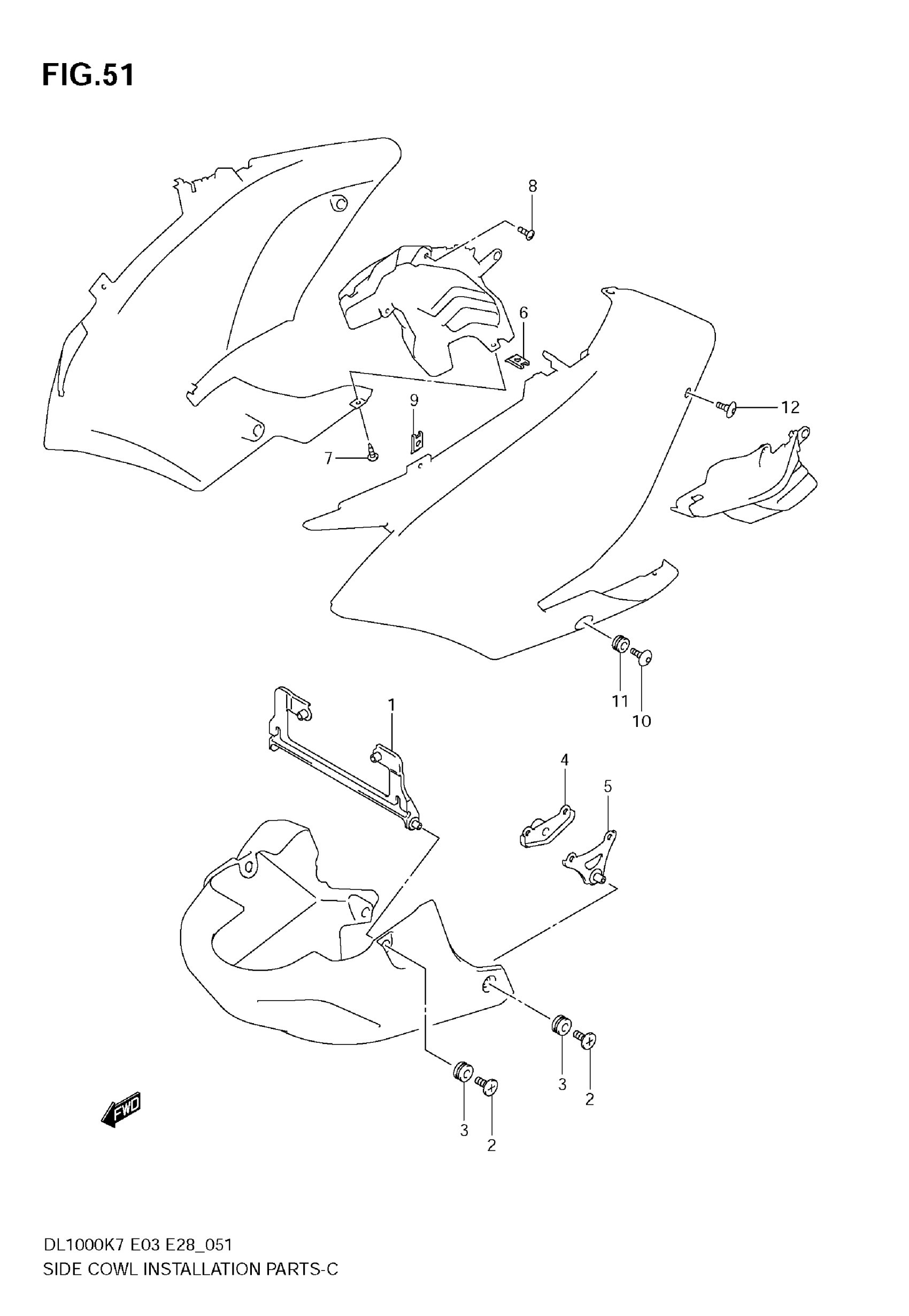

Suzuki DL1000 (2009) SIDE COWL INSTALLATION PARTS Diagram

#

Description
Price

1

BRACKET, UNDER FRONT

94520-06G00

$67.75

2

SCREW

11178-12F10

$5.47

3

CUSHION

09320-09016

$2.01

4

BRACKET, RH

94530-06G00

$15.07

5

BRACKET, LH

94540-06G00

$16.07

6

NUT

09148-05038

$2.01

7

SCREW

03241-0510B

$2.35

8

SCREW, CENTER

02142-0510B

$1.82

9

NUT COWL

94484-24F00

$3.79

10

SCREW, SIDE

09139-06126

$3.75

11

CUSHION

09320-09016

$2.01

12

SCREW, SIDE REAR

09139-06122

$2.88
