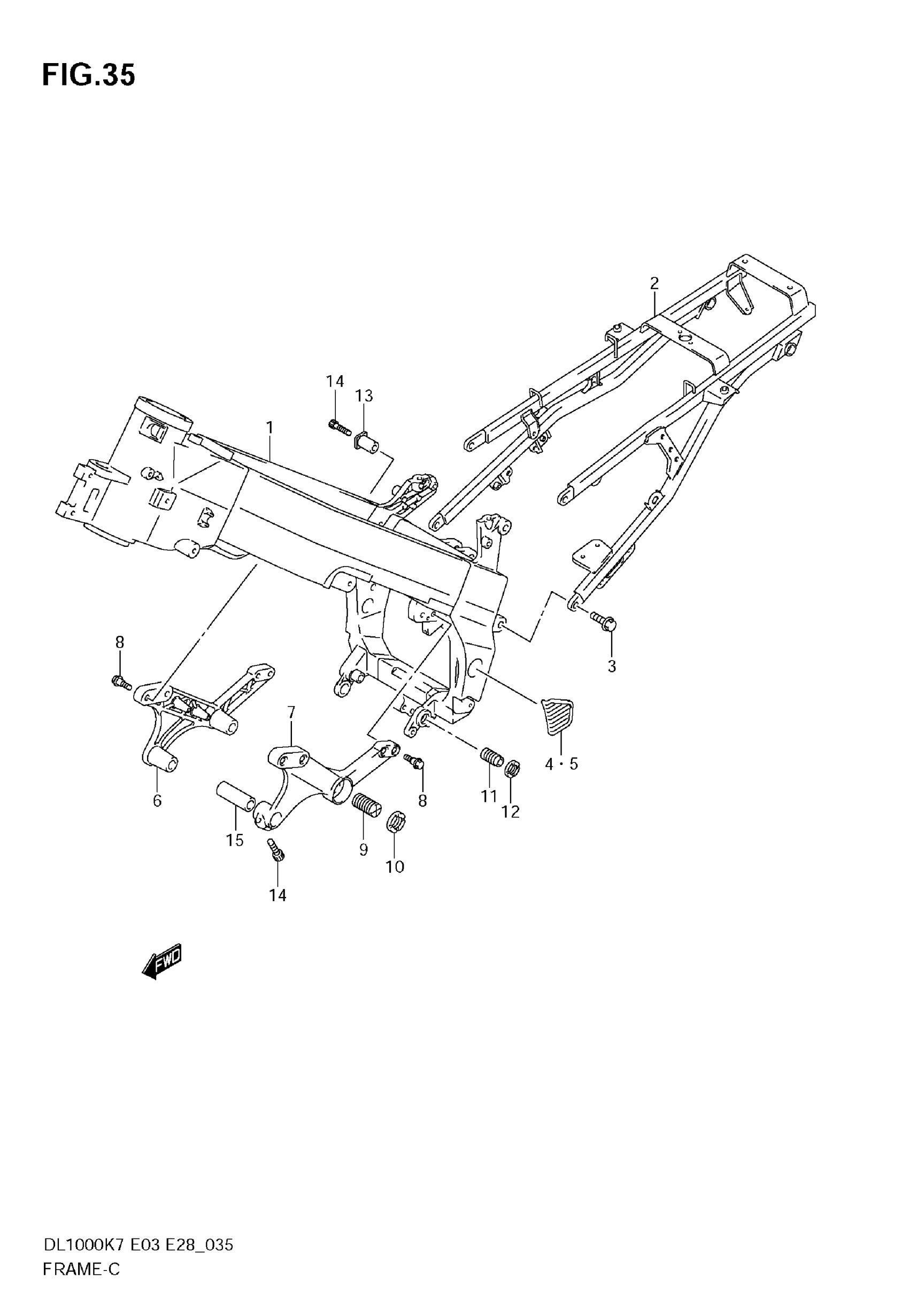

Suzuki DL1000 (2009) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-06G01-YAP

Unavailable

2

RAIL, SEAT

41200-06G00

Unavailable

3

BOLT

09103-10379

$4.92

4

COVER, PIVOT RH

43585-27G00

$27.55

5

COVER, PIVOT LH

43595-27G00

$19.10

6

BRACKET, MOUNT RH (BLACK)

41911-06G20-YAP

Unavailable

7

BRACKET, MOUNT LH (BLACK)

41912-06G20-YAP

Unavailable

8

BOLT

09106-08175

$4.45

9

BOLT, CRANK CASE ADJUST CTR

41923-16G00

$35.30

10

NUT,CRANK CASE ADJUST CTR This part replaces 41922-19F00.

41922-19F20

$21.33

11

BOLT, CRANK CASE ADJUST LWR This part replaces 41921-16G00.

41921-16G01

$26.50

12

NUT, ADJUSTER LOWER

41922-33E00

$25.42

13

SPACER, ADJUSTER UPPER

41941-19F01

$45.52

14

BOLT, SPACER This part replaces 09106-08149.

09106-08170

$3.32

15

SPACER, HEAD FRONT LH

41198-02F00

Unavailable
