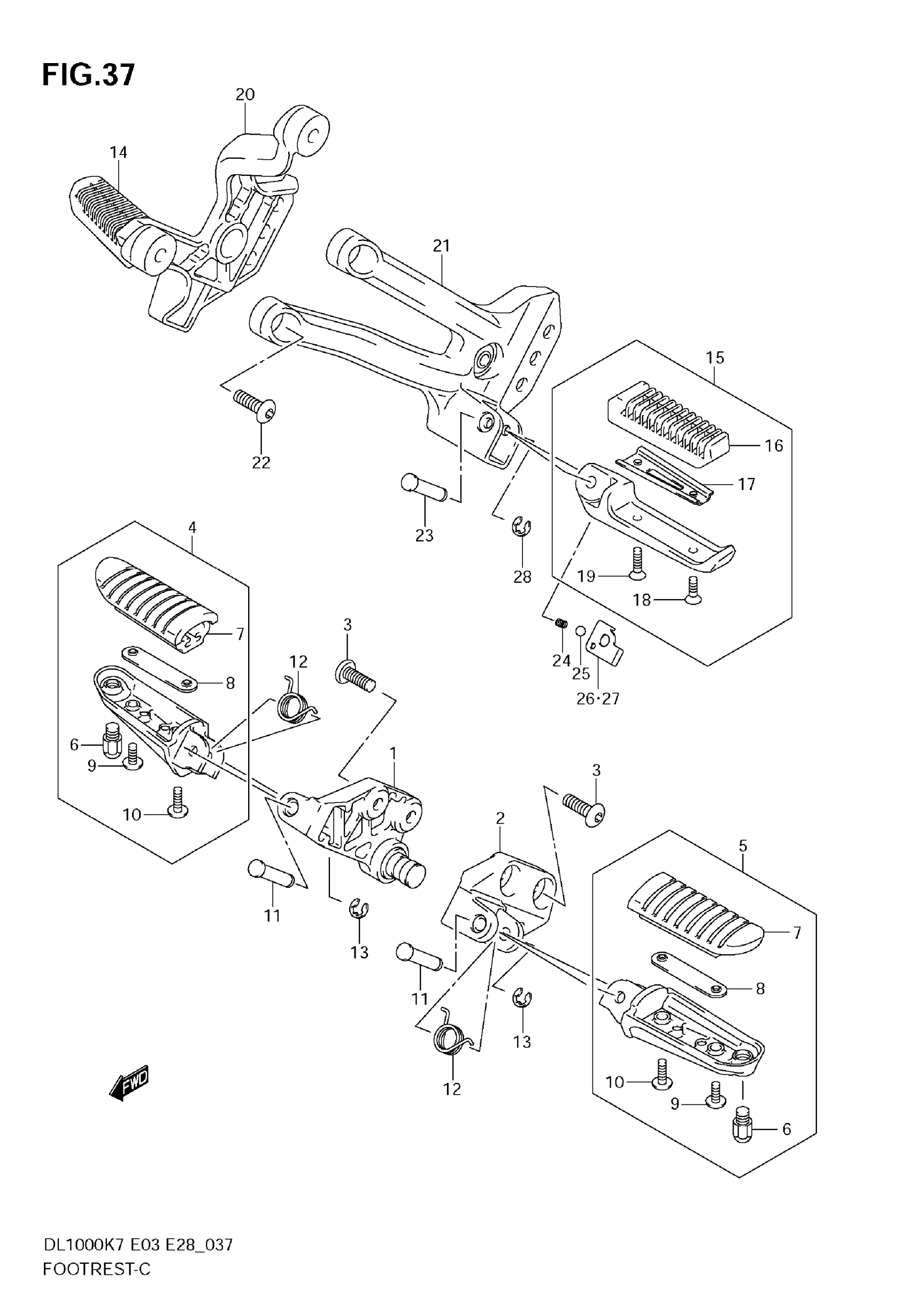

Suzuki DL1000 (2009) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH (BLACK This part replaces 43510-06G01-YAP.

43510-06G10-YAP

$89.14

2

BRACKET,FR FOOTREST,L (BLACK) This part replaces 43521-06G01-YAP.

43521-06G11-YAP

$44.94

3

BOLT

09106-08150

$3.13

4

FOOTREST ASSY, FRONT RH

43501-06G10

$188.45

5

FOOTREST ASSY, FRONT LH | Includes Item(s) 6 - 10

43502-06G10

$248.52

6

.BOLT,BANK SENSOR

43576-07D01

$8.10

7

RUBBER

43551-06G00

$13.21

8

PLATE

43552-06G00

$14.47

9

SCREW, OUTER

02142-0516A

$1.43

10

SCREW

02142-0520A

$1.41

11

PIN

09208-08016

$3.32

12

SPRING

09448-18022

$3.42

13

E RING

08332-1106A

$1.43

14

FOOTREST ASSY, PILLION RH

43600-42F10

$121.48

15

FOOTREST ASSY, PILLION LH | Includes Item(s) 16 - 19

43700-42F10

$121.48

16

RUBBER

43612-31300

$14.73

17

PLATE, STOP

43632-45501

Unavailable

18

SCREW, OUTER

02122-0512A

$1.88

19

SCREW, INNER

02122-0516A

Unavailable

20

BRACKET, PILLION RH (BLACK)

43811-06G01-YAP

$191.28

21

BRACKET, PILLION LH (BLACK)

43821-06G01-YAP

$191.28

22

BOLT, BRACKET

09106-08150

$3.13

23

PIN

09208-08010

$2.80

24

SPRING

09440-05005

$1.45

25

BALL

06111-07004

$1.22

26

PLATE, FOOTREST RH

43816-42F10

$8.52

27

PLATE, FOOTREST LH

43826-42F10

$6.04

28

E RING

08332-1106A

$1.43
