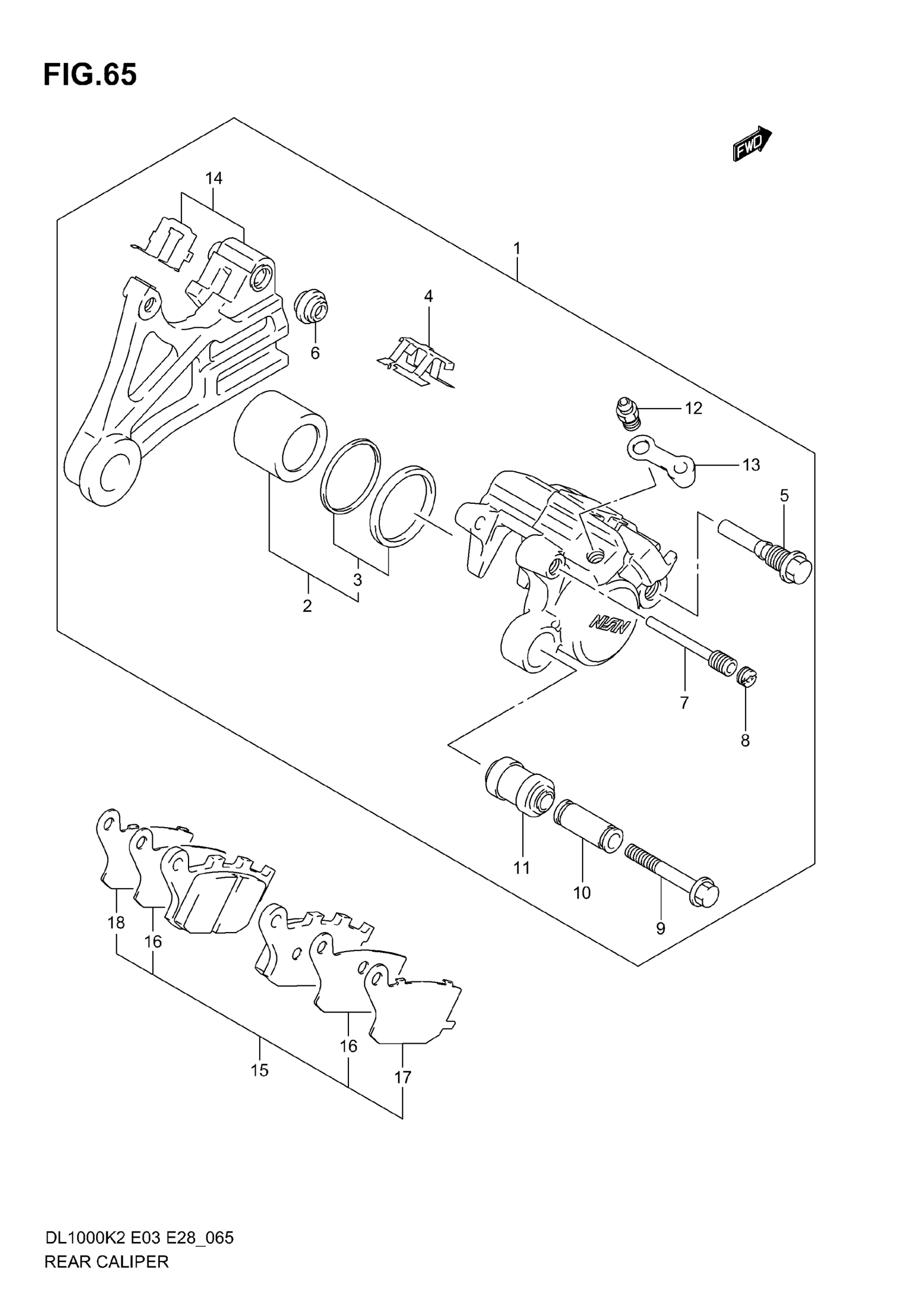

Suzuki DL1000 (2006) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 14

69100-06G00-999

$327.83

2

PISTON SET

69100-04810

$62.68

3

..SEAL SET,PISTON

69100-04820

$8.64

4

.SPRING,PAD

69115-06G00

$13.29

5

BOLT

69105-04F00

$13.86

6

BOOT

59303-14500

$5.29

7

PIN, HANGER

69141-40F00

$29.01

8

PLUG

59146-21E10

$5.88

9

BOLT

69182-04F00

$8.93

10

SLEEVE

69185-04F00

$20.88

11

.BOOT,SLEEVE

69186-04F00

$13.01

12

BLEEDER

59121-01A00

$8.35

13

CAP

59122-01A00

$4.15

14

BRACKET

69150-06G00

$168.12

15

PAD & RETAINER SET | Includes Item(s) 16 - 18

69100-06830

$57.82

16

INSULATOR

69132-06G00

$23.48

17

RETAINER

69133-06G00

$17.78

18

RETAINER

69134-06G00

$17.43
