Description

Price

1

CALIPER ASSY, FRONT RH This part replaces 59100-33D90-999.

59100-33D81-999

$643.45

1

CALIPER ASSY, FRONT | Includes Item(s) 2 - 12 This part replaces 59300-33D90-999.

59300-33D81-999

$628.42

2

PISTON SET This part replaces 59300-33831.

59301-20820

$35.39

3

SEAL SET, PISTON

59300-33841

$14.15

4

.SPRING, PAD RH

59115-33D00

$19.78

4

.SPRING, PAD LH

59315-33D00

$14.03

5

BOOT

59112-44B00

$8.15

6

.INSULATOR, AXLE

59313-36500

$5.48

7

.CARRIER, CALIPER RH

59150-33D01

$123.97

7

.CARRIER, CALIPER LH

59350-33D01

$123.97

8

.GUIDE, PAD

59116-33D00

$7.51

9

BLEEDER

59121-18410

$7.99

10

CAP

55156-66310

$4.73

11

.PIN, PAD

59141-44B01

$8.56

12

.CLIP, PAD PIN

69142-45000

$3.97

13

PAD & SHIM SET RH

59102-33870

$53.64

13

PAD & SHIM SET LH | Includes Item(s) 14 - 15

59302-33850

$55.16

14

.SHIM, PAD

59171-33D00

$16.77

15

.SHIM, PAD NO.2

59172-33D00

$18.93

16

BOLT (10X20) | MODEL K2/K3 This part replaces 01550-10253.

01550-1025A

$2.80

16

BOLT | MODEL K4/K5/K6

09103-10372

$4.62

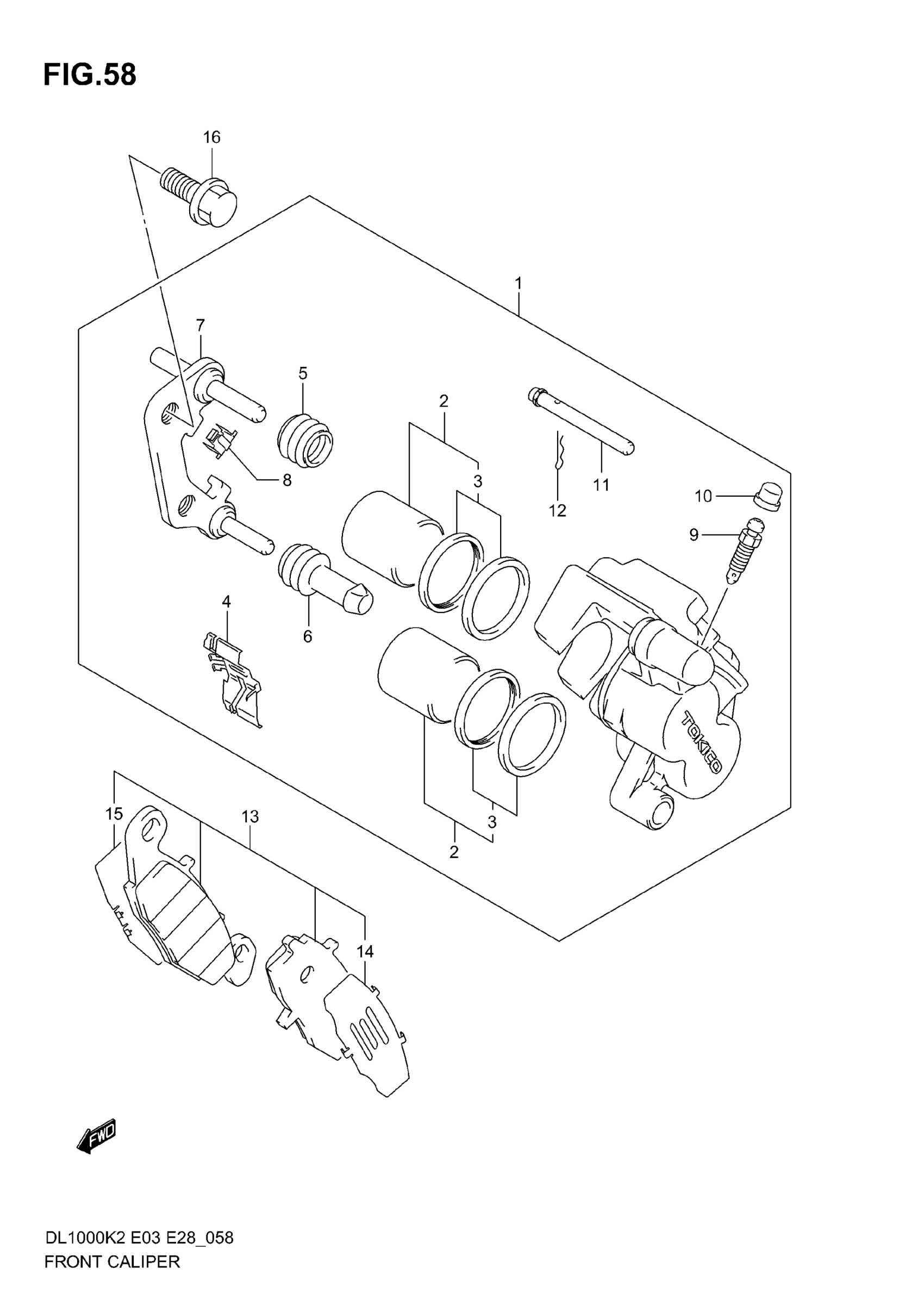

Suzuki DL1000 (2006) FRONT CALIPER Diagram
