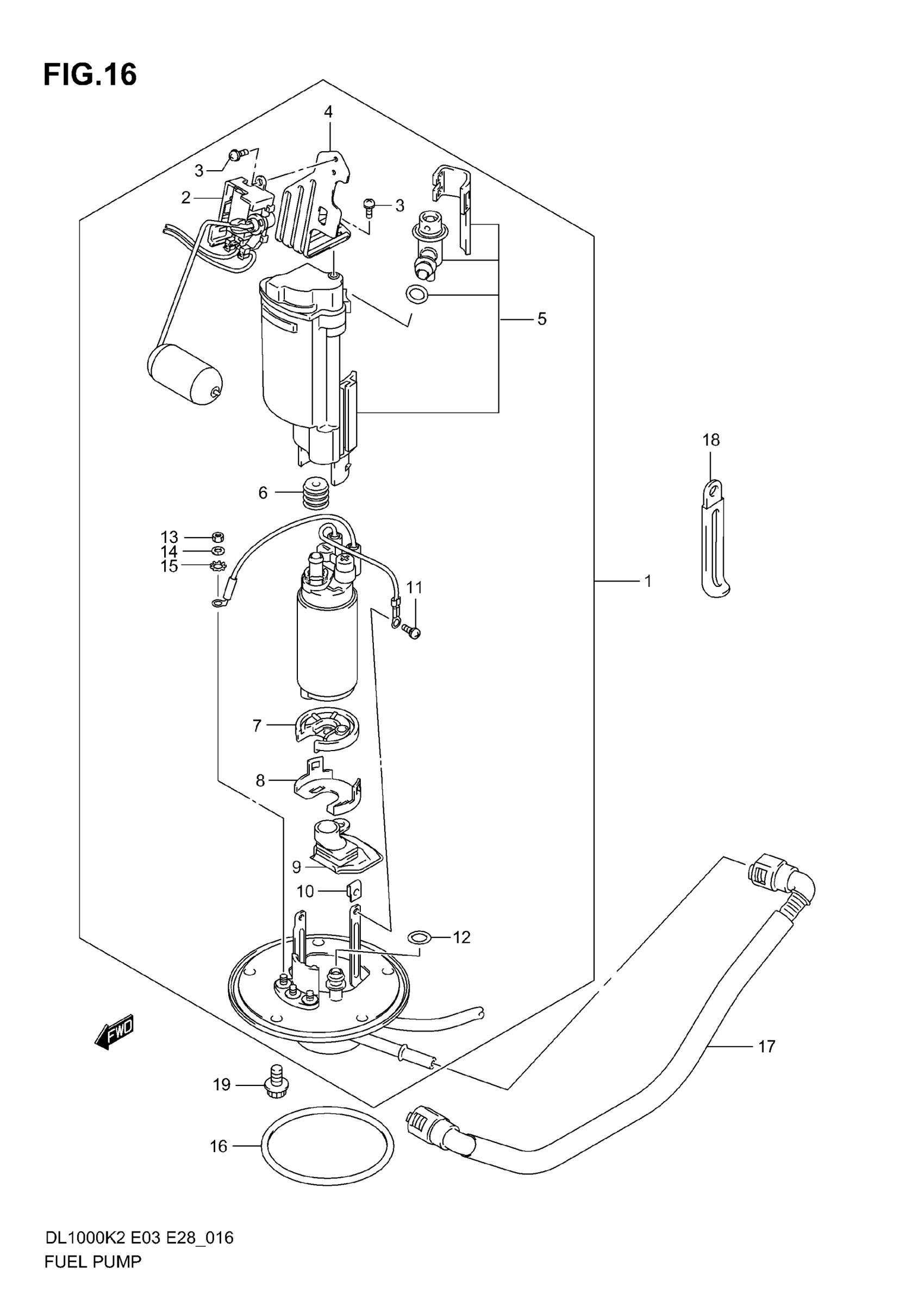

Find the part on the Fuel Pump diagram for your 2006 Suzuki DL1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki DL1000 Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, FUEL | Includes Item(s) 2 - 15

15100-06G00

1
Out of stock

2

GAUGE ASSY, FUEL LEVER

34810-06G00

1
Out of stock

3

SCREW

15116-35F10

2

$6.47

In stock

4

BRACKET, FUEL GAUGE

15181-06G00

1
Out of stock

5

FUEL FILTER

15410-24FB0

1

$517.35

In stock

6

BUSH

15114-35F00

1

$15.61

In stock

7

CUSHION, FUEL PUMP

15111-35F00

1

$9.49

In stock

8

HOLDER, FUEL PUMP

15112-42F00

1

$19.08

In stock

9

STRAINER, FUEL

15420-35F01

1

$113.37

In stock

10

NUT

15115-35F00

2

$10.61

In stock

11

SCREW

15116-35F10

2

$6.47

In stock

12

O RING

15113-35F00

1

$8.88

In stock

13

NUT

15173-35F00

3
Out of stock

14

SPRING WASHER

15172-35F00

3

$8.13

In stock

15

WASHER

15171-35F00

3

$8.13

In stock

16

O-RING

15201-35F00

1

$27.52

In stock

17

1

$88.00

In stock

18

1

$1.86

In stock

19

5

$3.00

In stock
